INSTALLATION MANUAL
Page 6 of 77 90-864198020
Transmissions
Velvet Drive Transmissions
On the Velvet Drive 71C and 72C In-Line and 72C Remote V-Drive Transmissions the gear
ratio (in FORWARD gear) is marked on transmission identification plate. Transmission out-
put shaft rotation and propeller rotation required (in FORWARD gear) are indicated on a de-
cal on the transmission case. Transmission rotation is described when viewed from the rear
of transmission.
22556

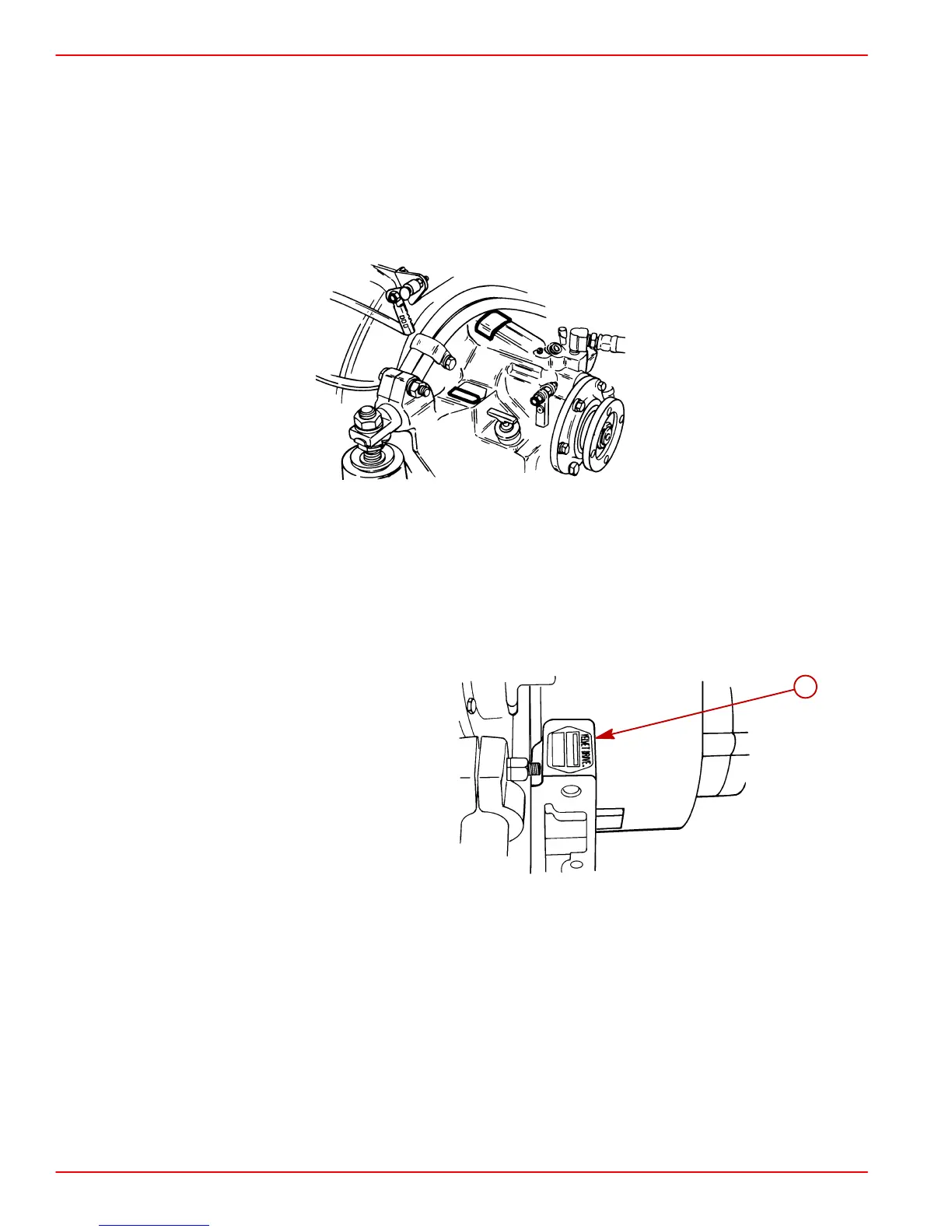

In-Line Transmission Shown (Remote V-Drive Similar)
a-Transmission Identification Plate
b-Gear Ratio (In FORWARD Gear)
c-Output Flange Rotation Decal (In FORWARD Gear)
On the Velvet Drive 5000A and 5000V Transmissions the transmission identification plate
indicates gear ratio, serial number and model.
71778
a
Velvet Drive 5000A 8 Degree Down-Angle Transmission Shown (5000V V-Drive
Similar)
a-Transmission Identification Plate
