INSTALLATION MANUAL
Page 70 of 77 90-864198020
ECM 555 EFI System Engine Wiring Diagrams

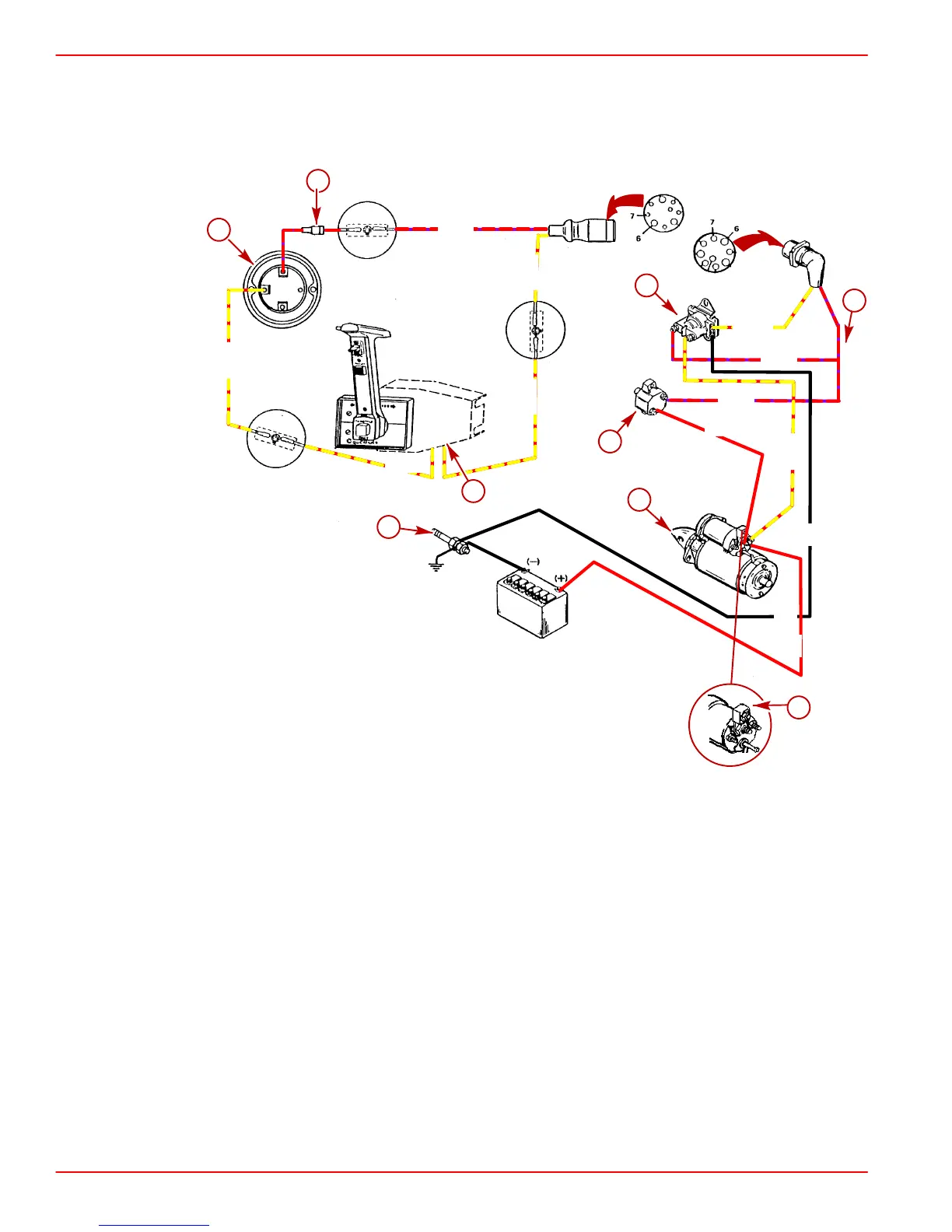

Typical Starting System
72930
B
S
I
RED/PUR
BLK
BLK
RED
RED
YEL/RED
YEL/RED
YEL/RED
YEL/RED
YEL/RED
RED/PUR
RED/PUR
YEL/RED
i
b
h
g
e
a
c
d
f
a-Ignition Switch
b-20 Amp Fuse
c-Starter Slave Solenoid
d-Circuit Breaker
e-Starter Motor
f-Wire Junction
g-Neutral Safety Switch
h-90 Amp Fuse
i-Engine Ground (–)
