Engine Preparation
1. Remove and read all tags attached to engine.
2. Remove all hardware that secures engine to shipping container.
3. Connect battery cables to engine. Be sure to observe the following:
a. Ensure that grounding stud and starter solenoid terminal are free of paint or any oth-
er material that could cause a poor electrical connection.
b. After battery cables are connected, apply a thin coat of sealant to the terminals.
Description
Where Used Part Number
Liquid Neoprene Battery Terminals 92-25711-2
c. Be sure to slide rubber boot over positive (+) terminal after making connection.
IMPORTANT: There is a fuse located at the starter solenoid. DO NOT remove this fuse.
The positive battery cable must be connected to the same stud as the fuse.

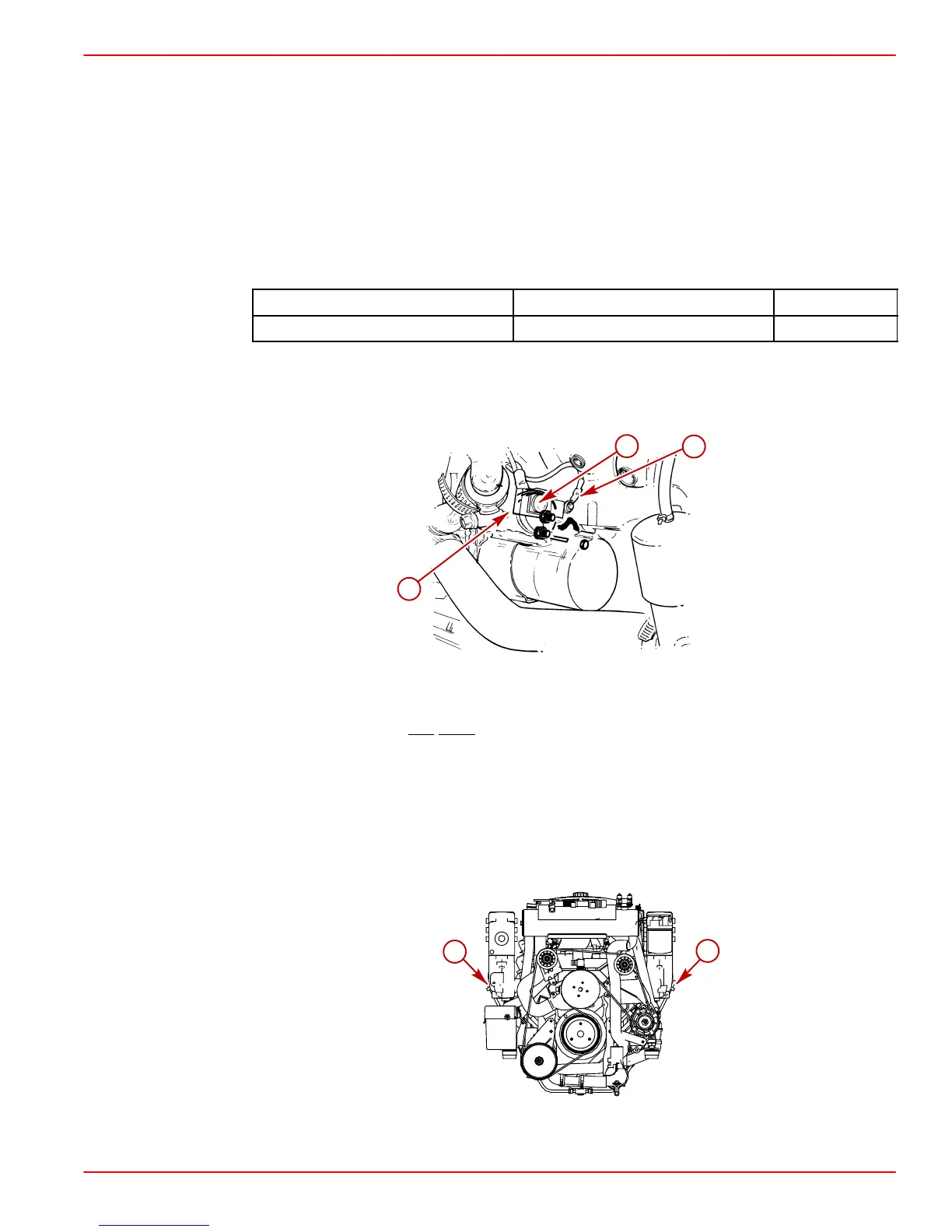

77001
c
b
a
a-Positive (+) Battery Cable
b-Starter Solenoid
c-90 Amp Fuse - DO
NOT Remove
4. Drape battery cables over top of engine to prevent interference during installation.
Engine Oil Dipstick Relocation (If Equipped)
Engine crankcase oil dipstick can be located on either starboard or port side of engine to
suit installation requirements. To move dipstick, remove dipstick from current location and
install in opposite side. Place rubber cap over the open dipstick tube.
77954
a
a
a-Dipstick
