INSTALLATION MANUAL
90-864198020 Page 23 of 77
All Models
1. Push end of oil drain hose out of boat hull through flange.
2. Pull oil drain hose out until it is 6 in. (152 mm) from the propeller.
3. Move alignment clip on the oil drain hose and squeeze to position it on the hose just in-
side of the boat hull against the flange.
4. Connect bilge drain plug to oil drain hose plug using clip.

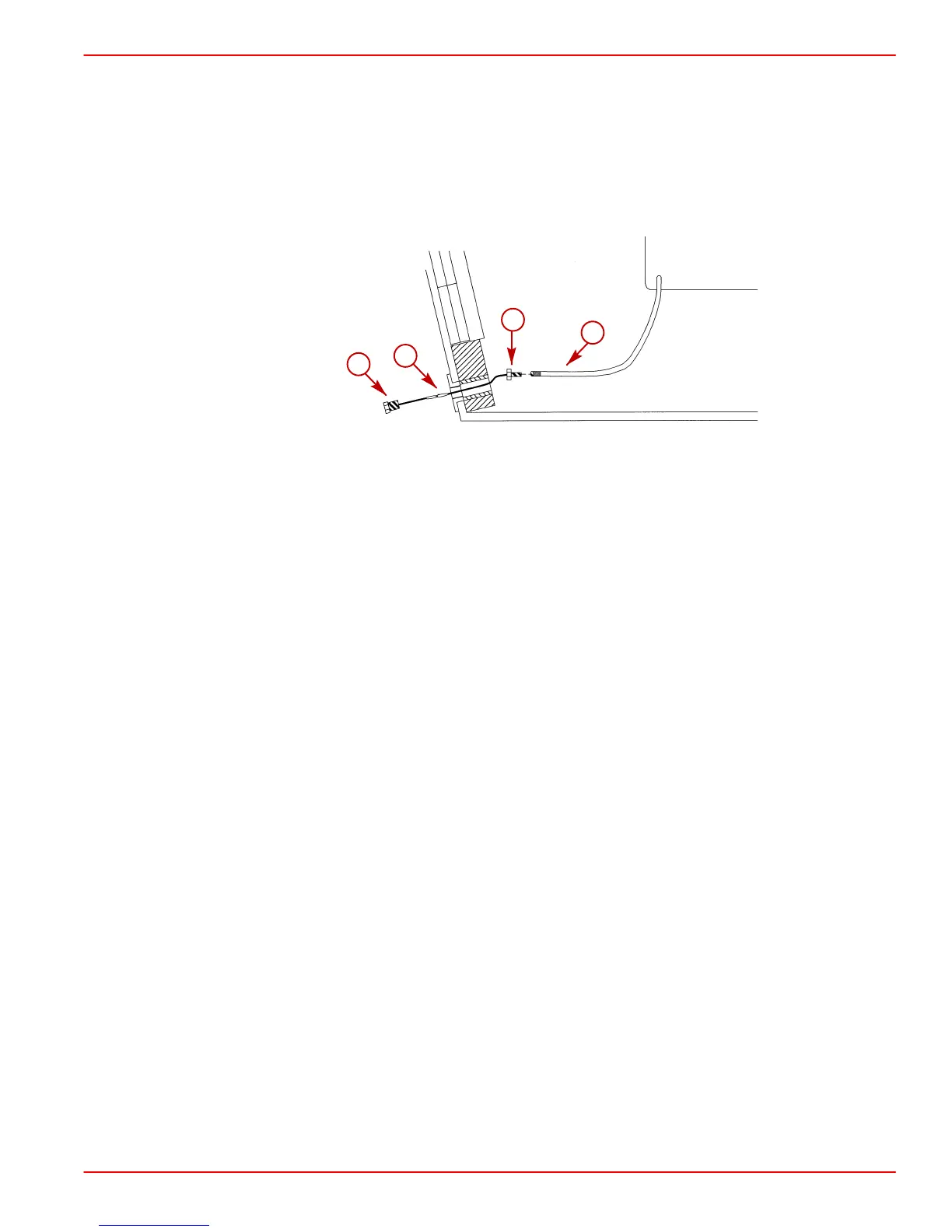

78002
a
b
d
c
a-Oil Drain Hose
b-Alignment Clip
c-Clip
d-Bilge Drain Plug
IMPORTANT: If Quick Drain Oil Fitting is within 1/2 in. (13 mm) of boat bottom, remove
fitting and install drain plug from parts bag directly into oil pan.
5. Push oil drain hose through flange into boat hull.
6. Install bilge drain plug in hull.
To Next Page
