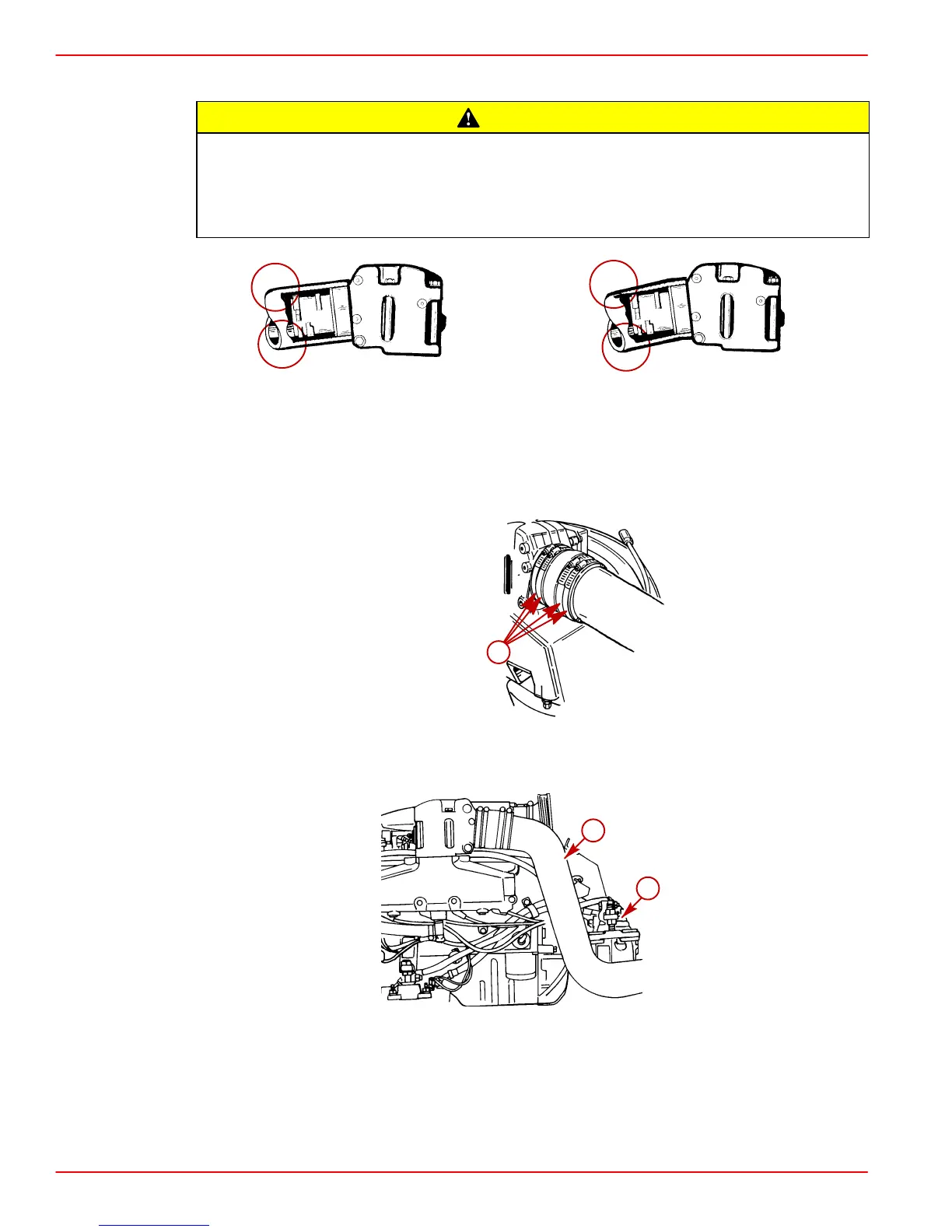

Exhaust System Hose / Tube Connections
CAUTION
Avoid exhaust hose failure. Discharge water from exhaust elbow must flow around
entire inside diameter of hose to avoid causing hot spots which could eventually
result in burned-through exhaust hoses. Exhaust hoses and/or tubes must be cor-
rectly connected to exhaust elbows so that they do not restrict the flow of discharge
water from exhaust elbow.
71653
Correct Connection Incorrect Connection
IMPORTANT: Exhaust hoses/tubes should be secured at each connection with at
least 2 hose clamps.
1. Tighten all exhaust hose and/or exhaust tube clamps securely.
73961
a
a-Hose Clamps
IMPORTANT: S-pipes must be routed under the transmission mounts.
74832
b
a
Tow Sports Models
a-S-pipe
b-Transmission Mount
