INSTALLATION MANUAL
Page 28 of 77 90-864198020

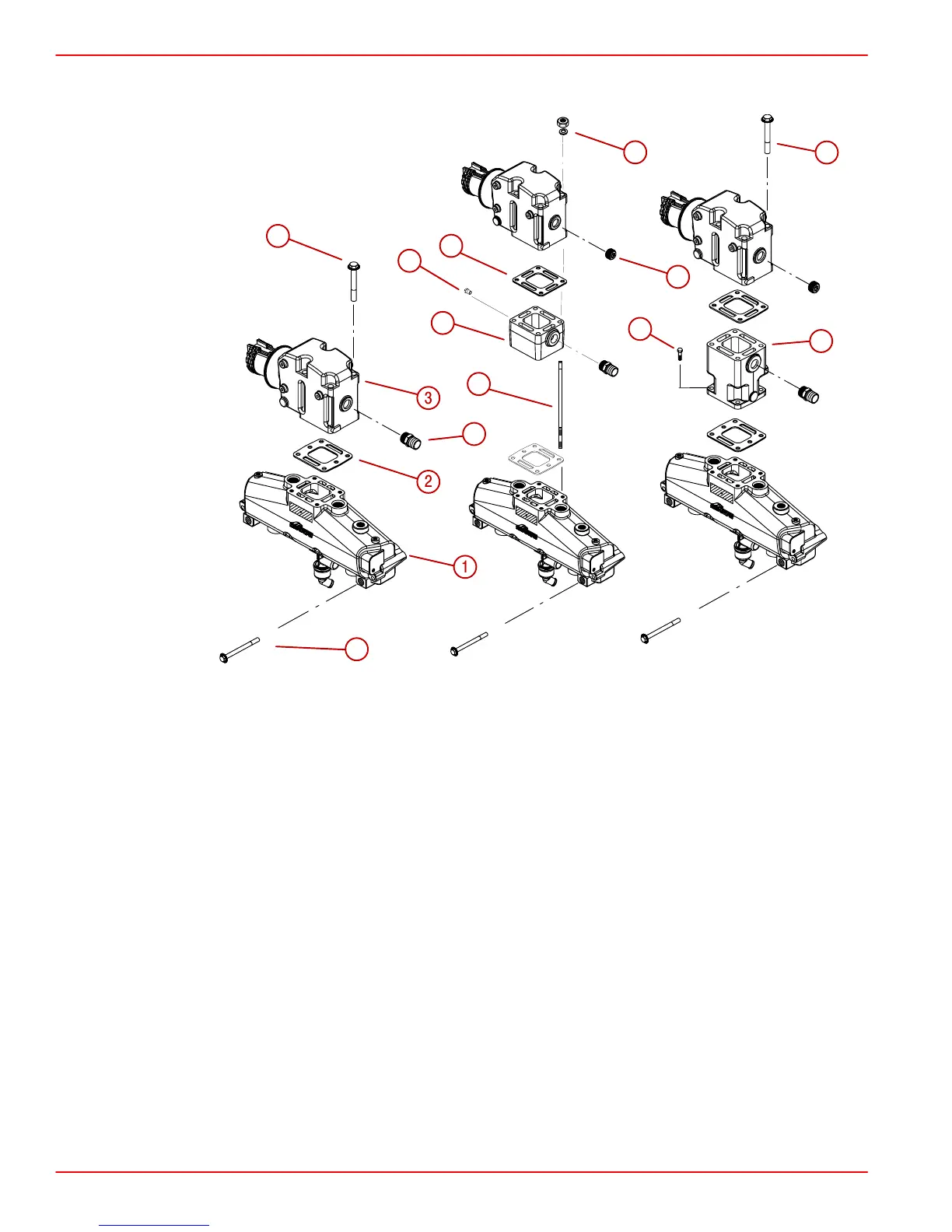

9. If measurements are less than specified, exhaust elbow risers must be installed to
achieve proper dimension.
78489
Ê
Ê
Ê
1
2
3
10
11
12
13
14
4
5
6
7
8
9
9
No Riser 3 Inch Riser 6 Inch Riser
1-Exhaust Manifold
2-Restrictor Gasket
3-Exhaust Elbow
4-3 Inch Riser
5-6 Inch Riser
6-Open Gasket
7-Plug
8-Bolt, Manifold-To-Cylinder Head
9-Bolt, Exhaust Elbow-To-Exhaust Manifold
10 - Stud
11 - Nut And Washer, Exhaust Elbow-To-3 Inch Riser
12 - Bolt, 6 Inch Riser-To-Exhaust Manifold
13 - Hose Fitting
14 - Pipe Plug
