INSTALLATION
Page 1D-14 90-888438 JUNE 2002
5. Route shift cable through the through-hull fitting and bellows. Route shift cable through
the starboard side hole in flange of pump housing.

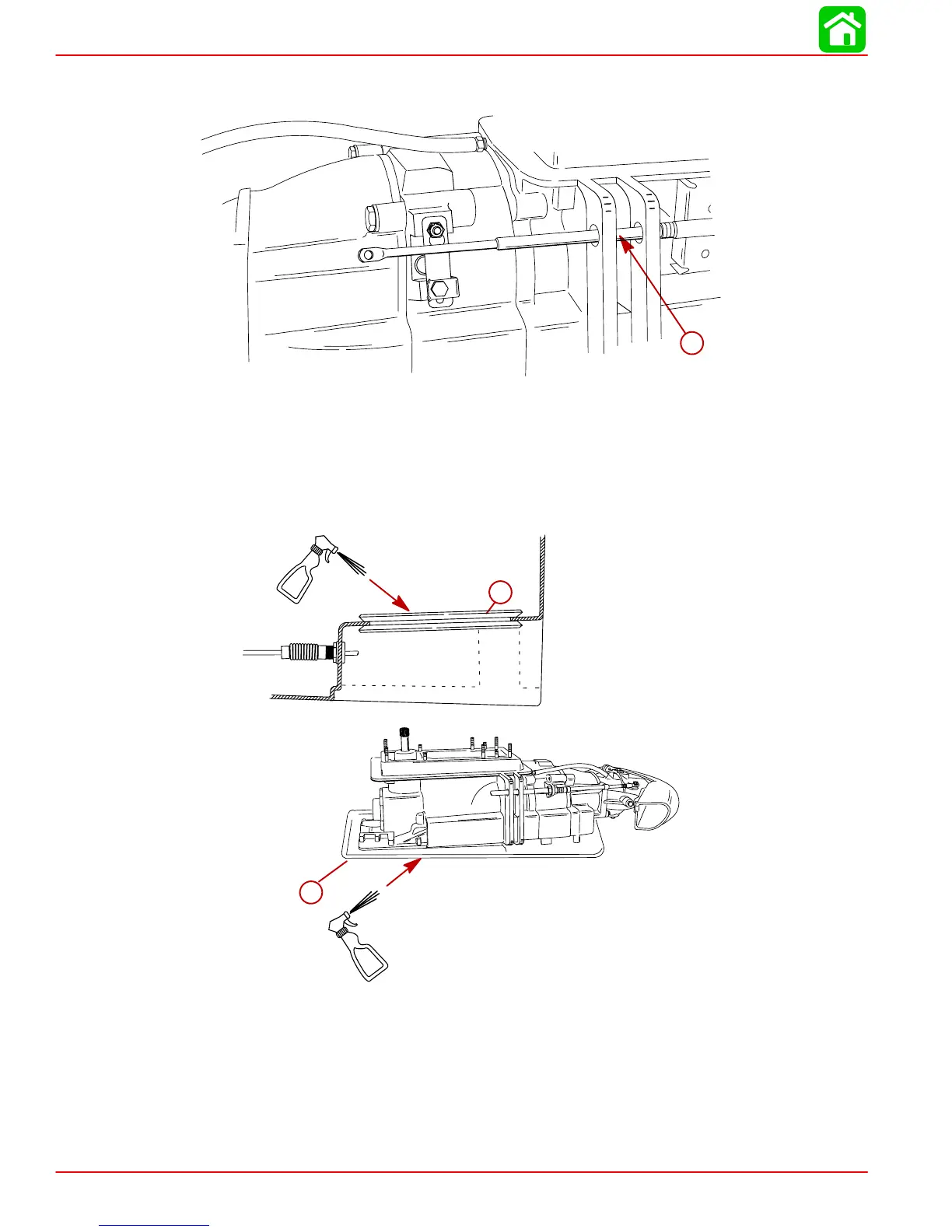

58144
a
a-Shift Cable
IMPORTANT: Ensure that the shift lever in the control box is set for three (3) inches
of travel.
NOTE: It is easier to adjust the shift and steering cables before installing pump unit in boat.
6. Spray soapy water on inside surface of tunnel grommet and ride plate seal.
a
b
a-Tunnel Grommet
b-Ride Plate Seal
NOTE: When installing pump in tunnel, be sure cables are below tunnel grommet flange on
pump to prevent pinching of cables between pump and boat.
