INSTALLATION
Page 1D-8 90-888438 JUNE 2002

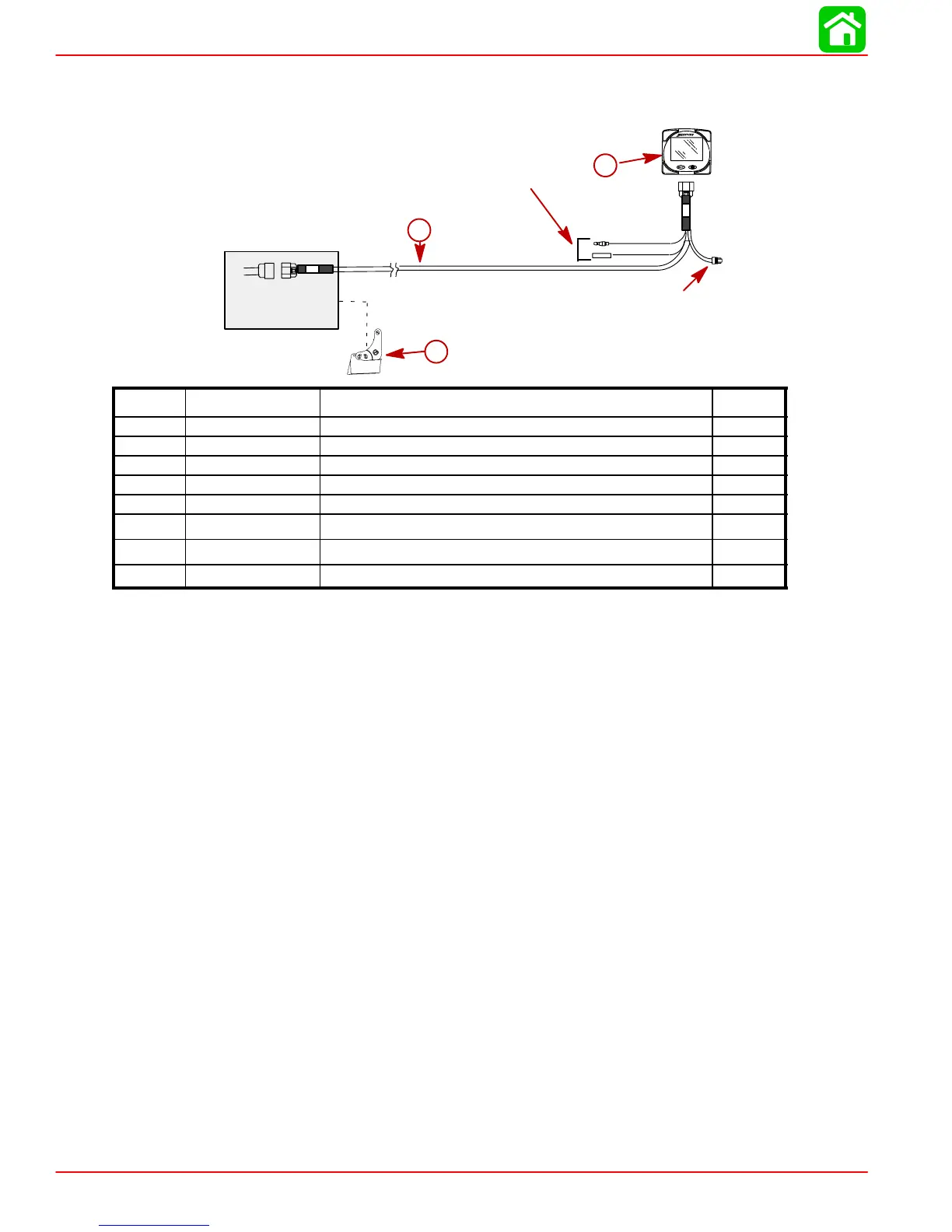

SmartCraft System Monitor – Model Year 2001 and Newer
Engine
Monitor
System Link
Connection
a
b
Accessory Horn (816492A9) Connection
for Water Depth Warning
Optional Depth
Transducer
c
Ref. Part Number Description Qty.
a 879982T_ Wiring Harness SC1000-2RSL (20,30 ft) 1
b 879896K2 System Monitor – Front Mount (Outboard Only) 1
b 879896K1 System Monitor – Rear Mount (Outboard Only) 1
b 879896K4 System Monitor 2 – Front Mount (All Models) 1
b 879896K3 System Monitor 2 – Rear Mount (All Models) 1
c 881931A1 Depth Transducer – Transom Mount 1
c 881932A1 Depth Transducer – In Hull 1
c 881933A1 Depth Transducer – Through Hull 1
To Next Page
