Mercury OptiMax 250 - Side View of Expansion Chamber Outlet Pipe and Exhaust Pipe Connection

INSTALLATION
Page 1D-38 90-888438 JUNE 2002

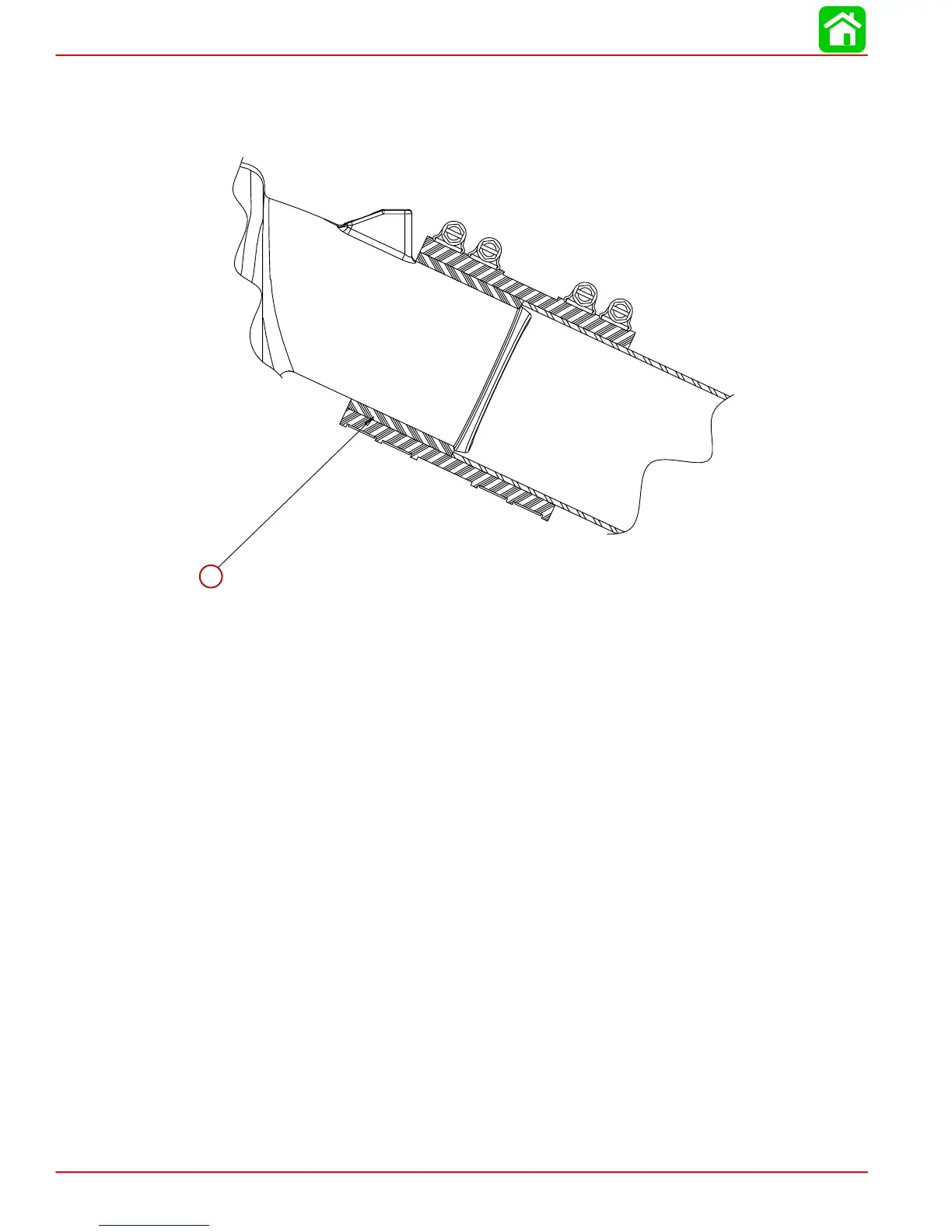

Side View of Expansion Chamber Outlet Pipe and Exhaust Pipe Connection
a
a-A spacer must be used with all 3.0 in (7.6 cm) tube applications. A spacer hav-
ing a 2.65 in (6.73 cm) I.D. and a 3.0 in (7.6 cm) O.D. needs to be installed over
the expansion chamber outlets.
