INSTALLATION
Page 1D-18 90-888438 JUNE 2002

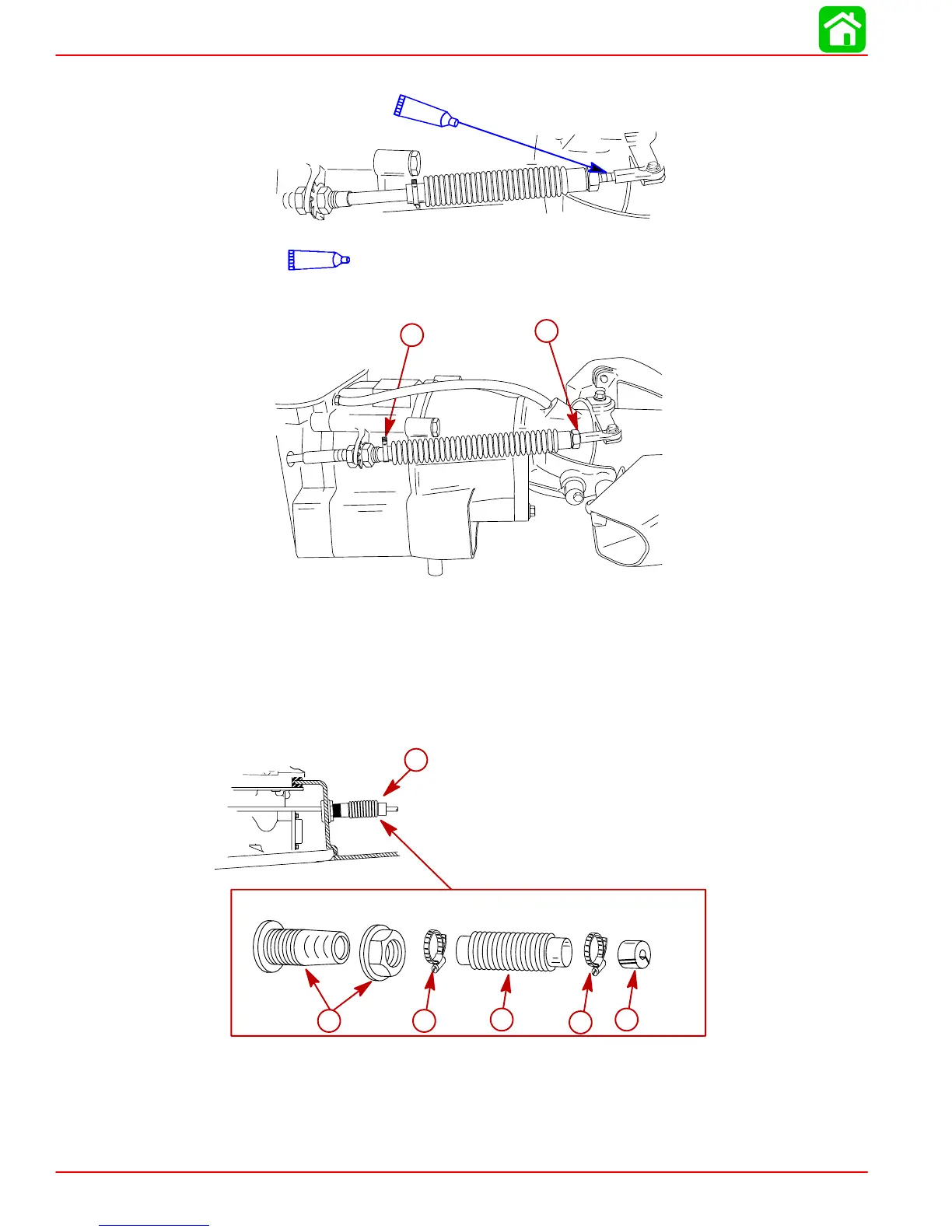

11. Apply perfect seal to end threads and cable conduit end.
19
Perfect Seal
19
12. Turn bellows nut out and tighten against cable end adaptor.
54908
a
b
a-Bellows Clamp
b-Bellows Nut Tight Against Jam Nut
13. Turn rudder to port to compress bellows as much as possible. Pull bellows over cable
conduit and secure with bellows clamp.
14. Secure bellows to fitting with clamp. Slide slit adaptor over cable and push into bellows.
Secure with clamp.
a
b
c
c
d
e
a-Steering Cable, Thru-Hull Fitting, and Bellows Assembly
b-Thru-Hull Fitting and Nut
c-Clamp
d-Bellows
e-Slit Adaptor
To Next Page
