INSTALLATION
Page 1D-20 90-888438 JUNE 2002

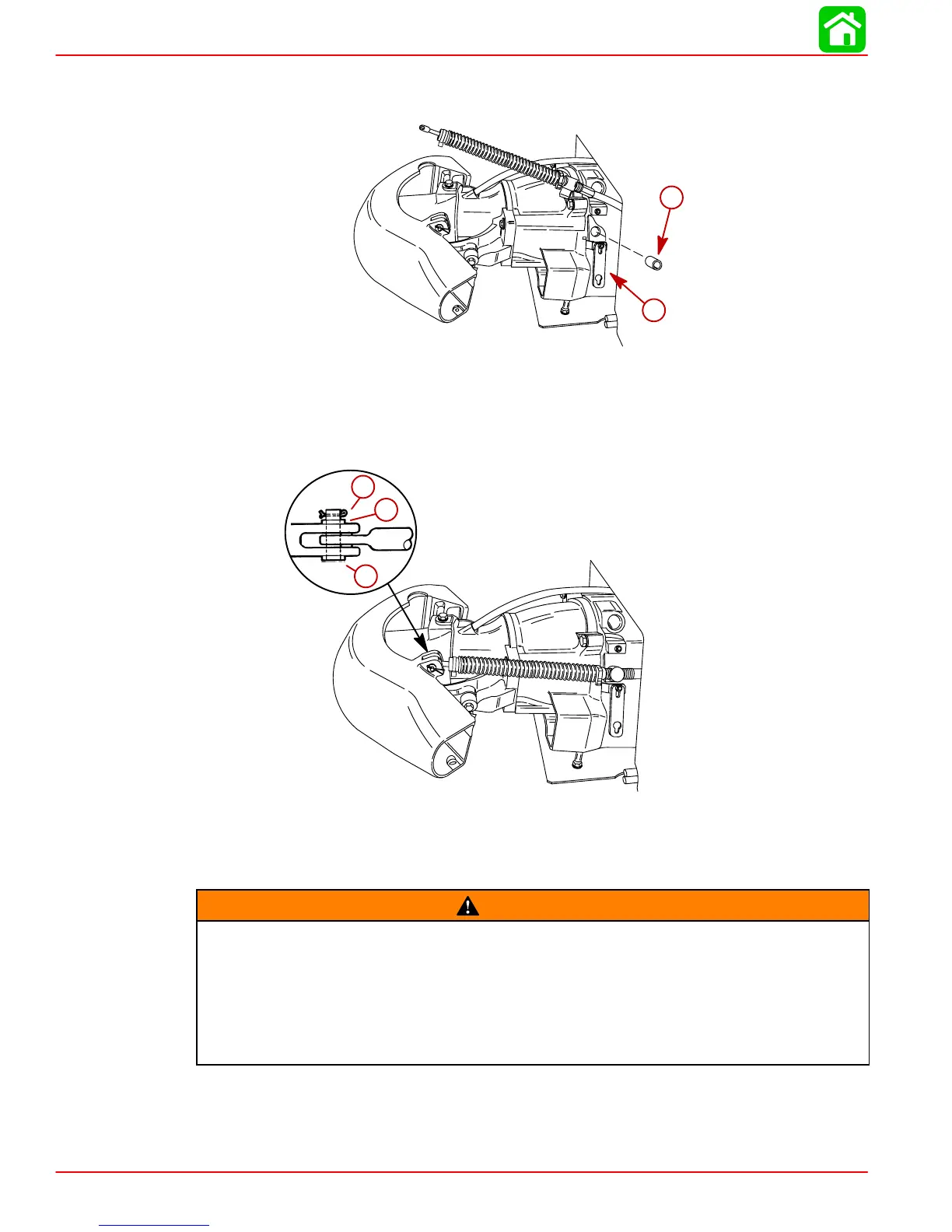

4. Loosen the locknuts and unfasten the top end of the shift cable retainer.
NOTE: Locknuts do not have to be removed to open retainer.
a
b
a-Shift Cable Retainer
b-Plastic Barrel Holder
5. Install shift cable end in slot of the reverse gate and secure with clevis pin, flat washer,
and cotter pin. Bend over ends of cotter pin.
a
b
c
a-Clevis Pin
b-Flat Washer
c-Cotter Pin
WARNING
The shift cable must be adjusted correctly so that the reverse gate does not inter-
fere with water flow coming out of the rudder. If the reverse gate hangs down into
the water flow, a vibration may be felt in the control box. If this occurs, reduce
throttle immediately and readjust the cable. Improper adjustment may result in
pump damage including loss of the reverse gate. Failure to properly adjust the shift
cable could result in loss of neutral and reverse, property damage, personal injury
or death.
