Section 5 - Warning Alarms

90-8M0109374 eng JUNE 2016 Page 97

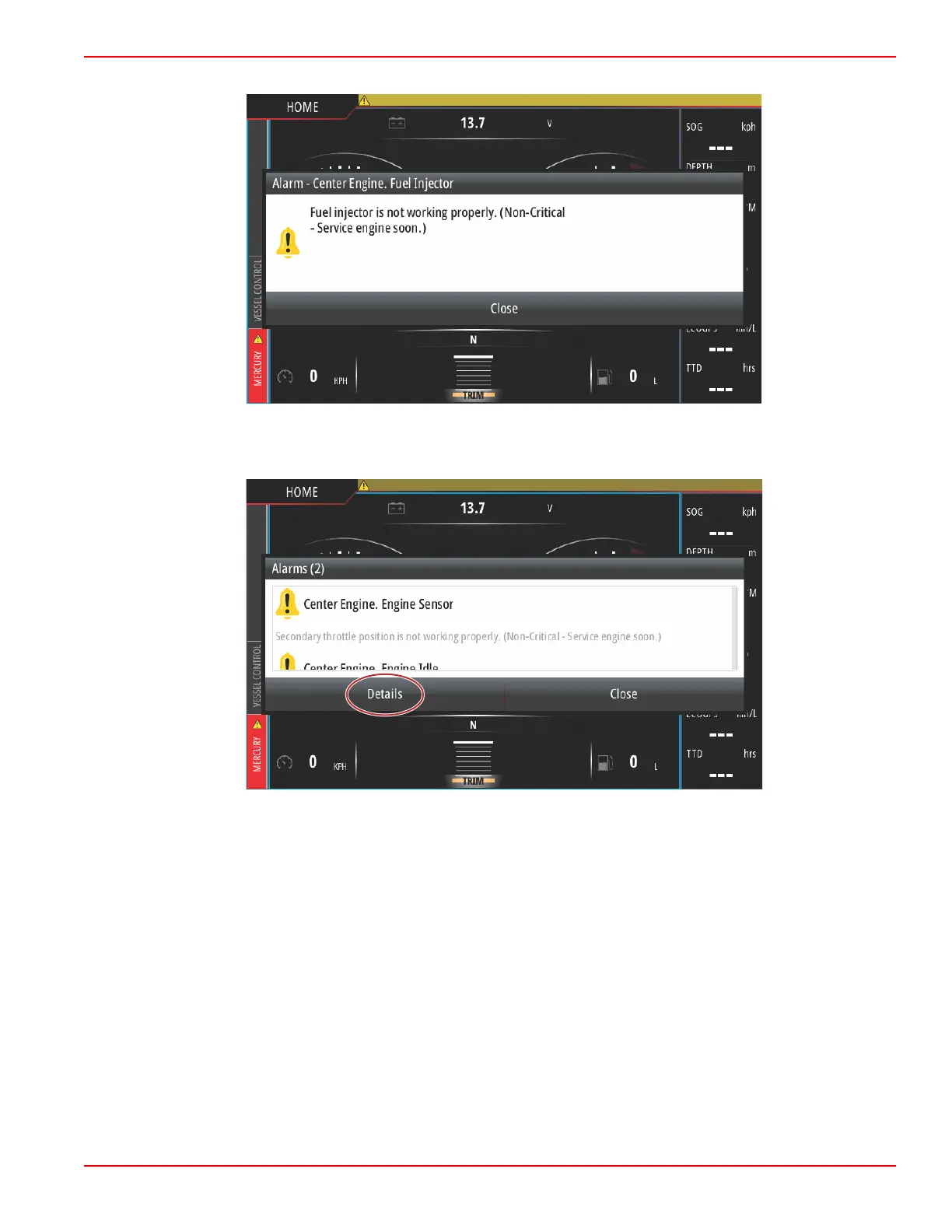

Noncritical alarms will display like critical alarms, but are accompanied by six short beeps from the warning horn.

61545

Fault pop‑ups allow the operator to get additional information regarding the individual faults. Select the Details option to view a

more descriptive explanation of the fault.

61542
