Section 4 - Setup and Calibrations
Page 74 90-8M0109374 eng JUNE 2016

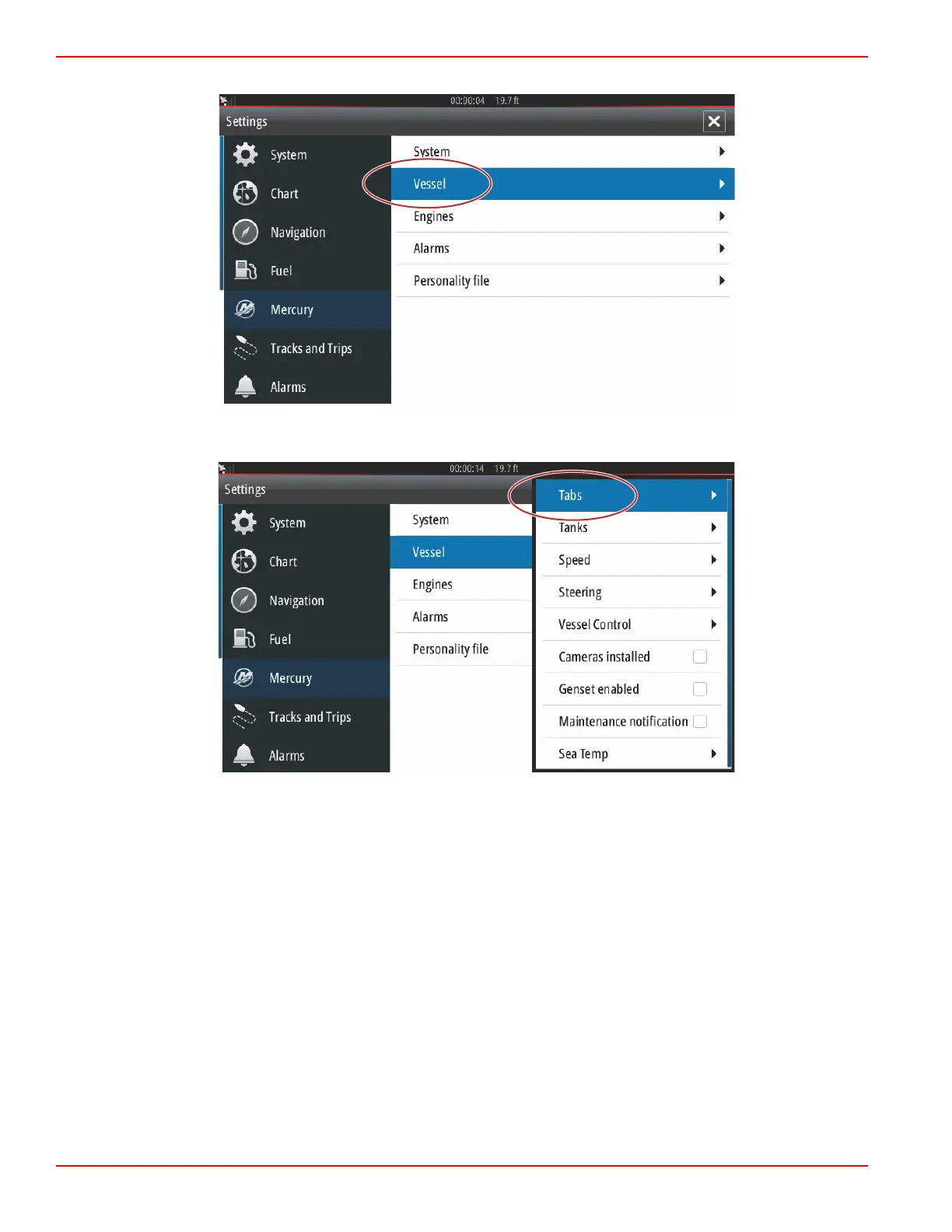

Select the Vessel settings option.
Select the Tabs option.
Tabs settings allows the operator to display the tab positions on the screen by selecting the Show checkbox. The Source option
allows selecting the outboard or drive that carries the Tab sensor data to the network.
The tab sensor data is sent by one of the outboards or drives on the vessel. Use the following image to determine the proper
selection.
