Section 4 - Setup and Calibrations
Page 78 90-8M0109374 eng JUNE 2016

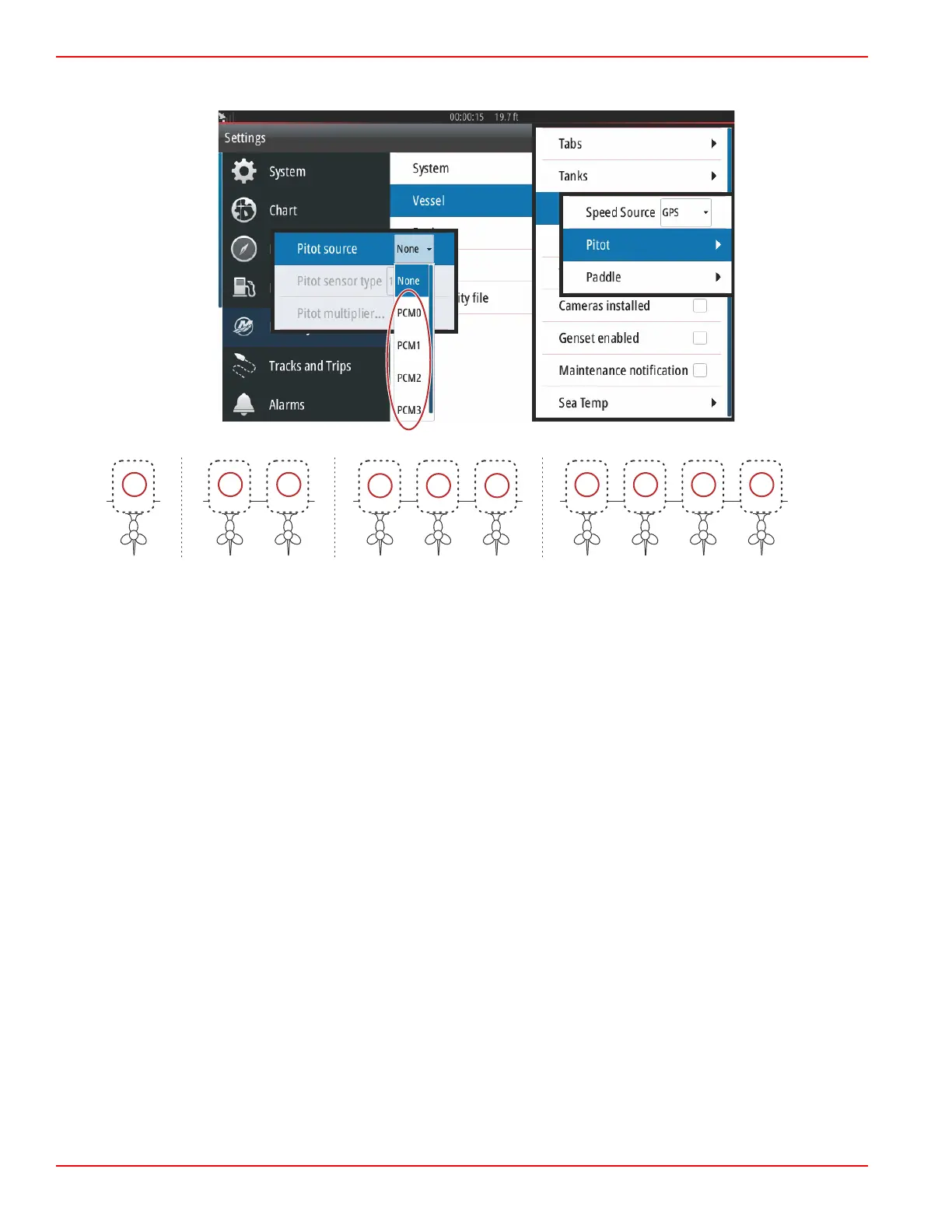

The pitot sensor data is sent by one of the outboards or drives on the vessel. Use the following images to determine the proper
selection.
Drive assignment options
a - PCM0 = starboard or starboard outer
b - PCM1 = port or port outer
c - PCM2 = starboard inner or center
d - PCM3 = port inner
Pitot type options include 100 psi and 200 psi. The 200 psi option only applies to select Mercury Racing outboard models.
The pitot multiplier will use 1.00 as a default setting and can be increased or decreased to correct speed display readings that
read too high or too low. For a low speed reading, increase the pitot multiplier by selecting the multiplier window and use the
on‑screen keypad to enter an amount. For a high speed reading, decrease the pitot multiplier by selecting the multiplier window
and use the on‑screen keypad to enter an amount.
