Section 1 - Getting Started

Page 16 90-8M0109374 eng JUNE 2016

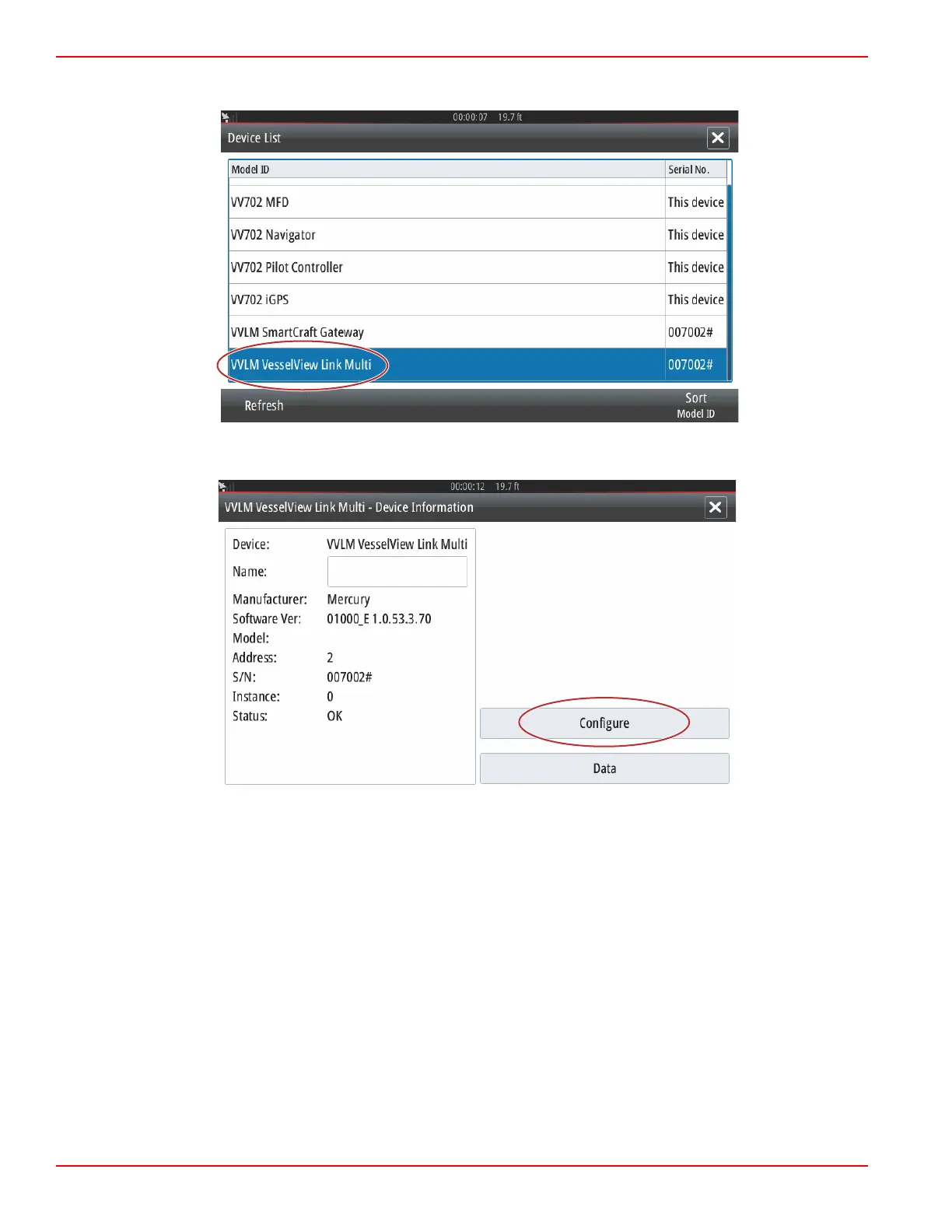

4. Select the VesselView Link Module from the list of available devices. The following image is for illustrative purposes only,

your VesselView Link Module may show as Single, for a single‑engine application.

61460

5. Select the Configure option.

61461
