Section 1 - Getting Started

90-8M0109374 eng JUNE 2016 Page 21

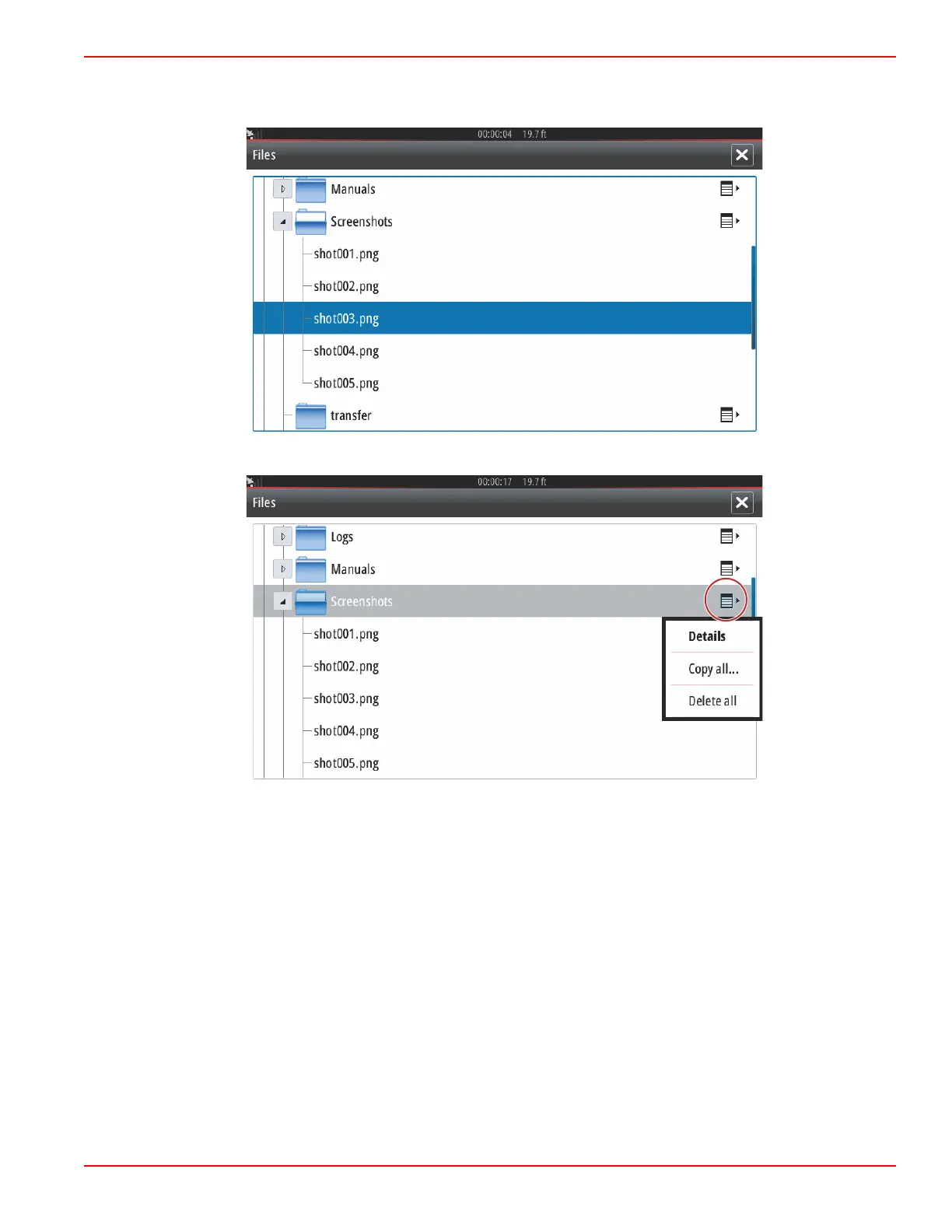

Individual screenshots can be accessed by selecting them. All screenshots can be accessed at once using the icon on the

right‑hand side of the files window. Selecting this icon will allow viewing of the screenshot details, copying all the screenshots,

or deleting all of the screenshots.

61476

61477
