Section 3 - Autopilot Features and Operation
Page 56 90-8M0109374 eng JUNE 2016

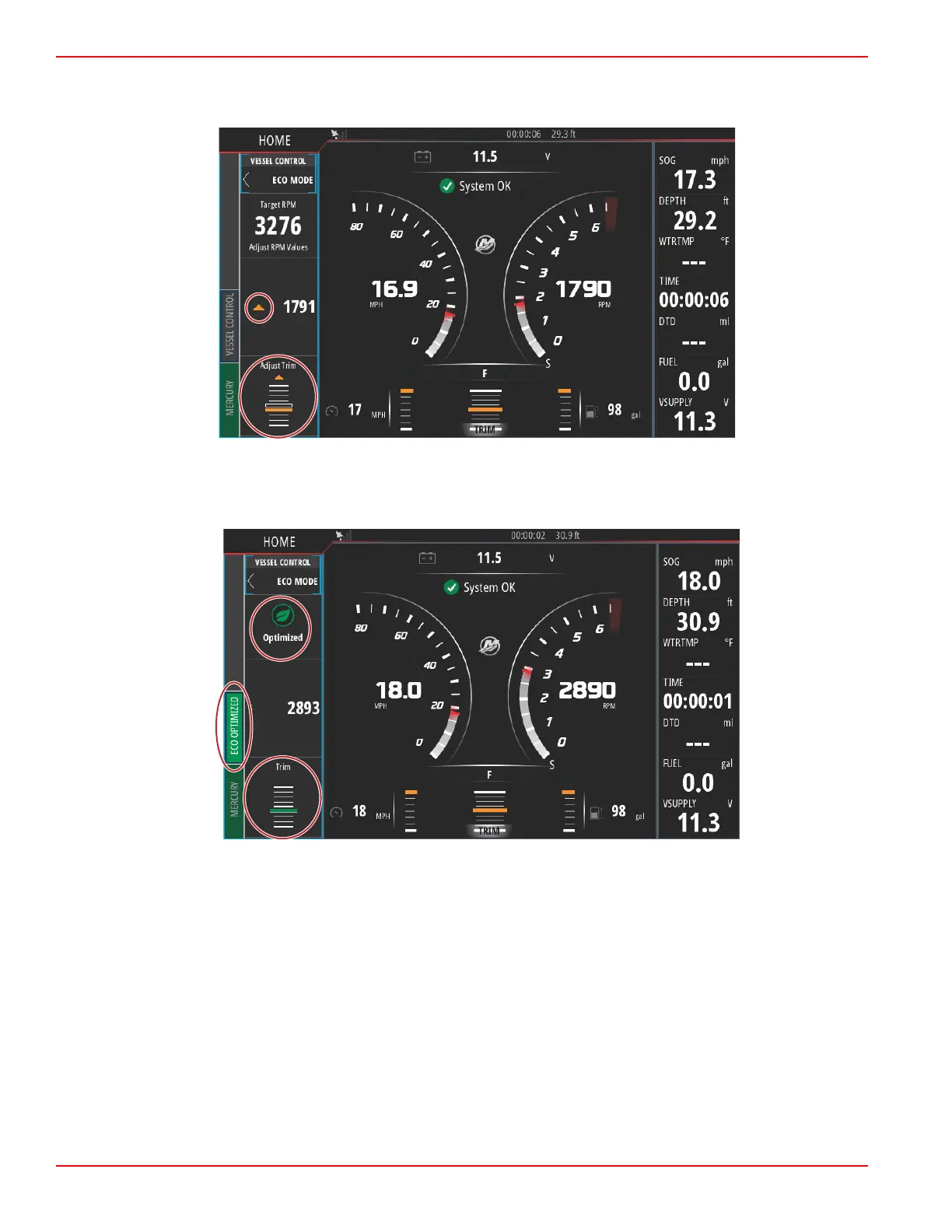

In the ECO Mode panel, VesselView shows the operator the RPM value and the trim position. If one or both of these operating
parameters is out of optimization, the VesselView will display an orange arrow and/or orange sliders in the RPM and trim tiles.
The direction of the orange arrows indicates where to adjust the RPMs and trim position to achieve fuel economy optimization.
Following the guidance of the VesselView will result in both RPMs and trim position being optimized. When optimized, the
Vessel Control tab will display Eco Optimized in green, the trim slider will turn green, and a green leaf icon with the word
Optimized will appear at the top of the Eco Mode bar.
