Mercusys MB110-4G User Manual

53
Chapter 11
Administrate Your Network

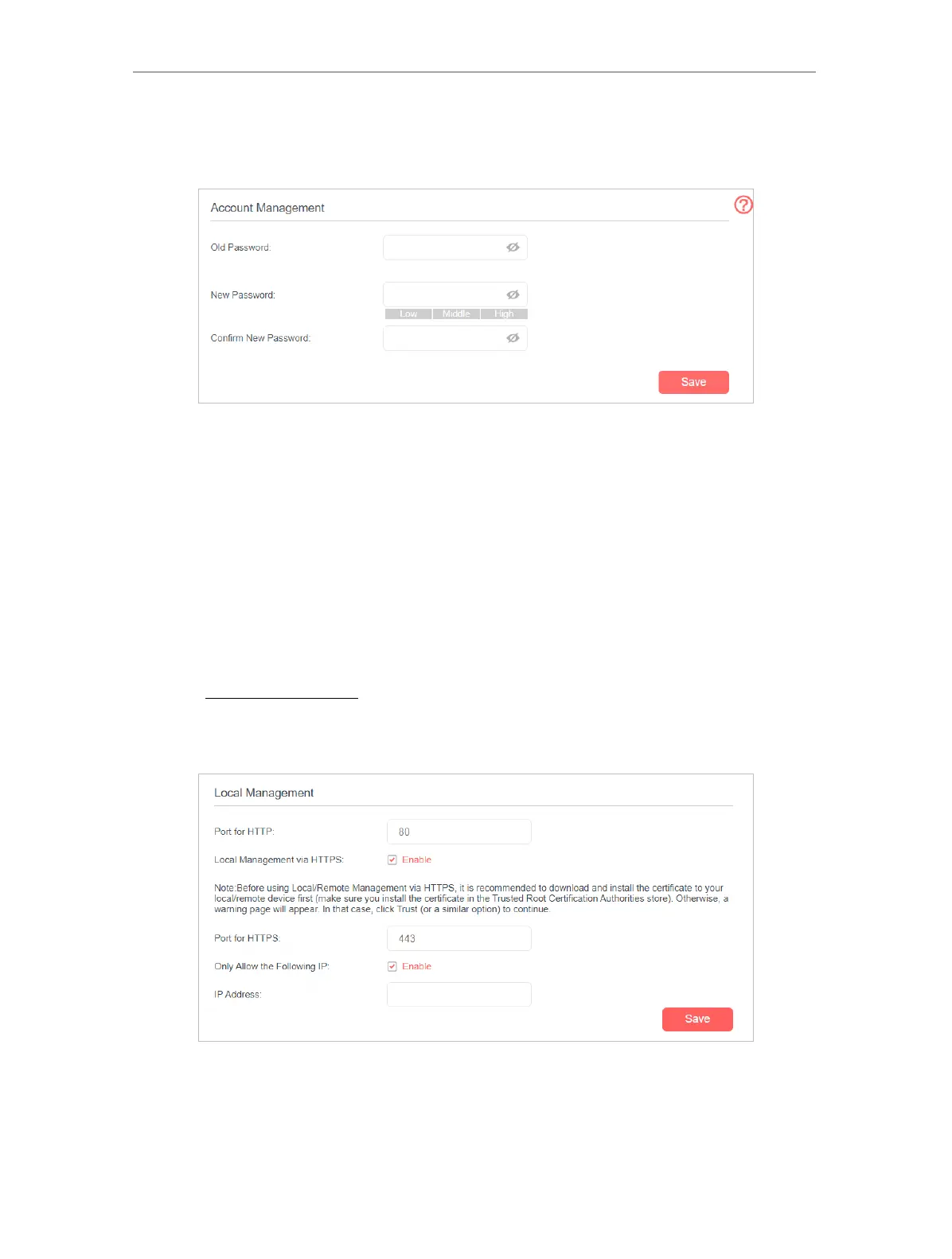

2. Go to Advanced > System Tools> Administration page. Locate the Account
Management section.
3. Enter the old password. Enter the new password and enter again to confirm.
4. Click Save to make the settings effective.
11. 8. Local Management
You can control the local devices’ authority to manage the router via the Local
Management feature. By default all local connected devices are allowed to manage the
router. You can also allow only one device to manage the router.
Follow the steps below to specify the local management.
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > System Tools> Administration page. Locate the Local
Management section.
3. Keep the Port for HTTP as the default settings.
4. Enable Local Management via HTTPS to access the router via HTTPS and HTTP,
or disable it to access the router only via HTTP.

Mercusys MB110-4G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Ethernet
4G standard	LTE-TDD & LTE-FDD
3G standards	HSPA, HSPA+, UMTS
SIM card type	NanoSIM
4G bands supported	700, 800, 850, 900, 1800, 2100, 2300, 2500, 2600 MHz
UMTS bands supported	850, 900, 2100 MHz
Mobile network generation	4G
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product type	Desktop/pole router
Product color	White
Antenna type	2x2
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92 mm
Width	90 mm
Height	150.5 mm
