Mercusys MW150US User Manual

Chapter 3 –Connect to a Wireless Network

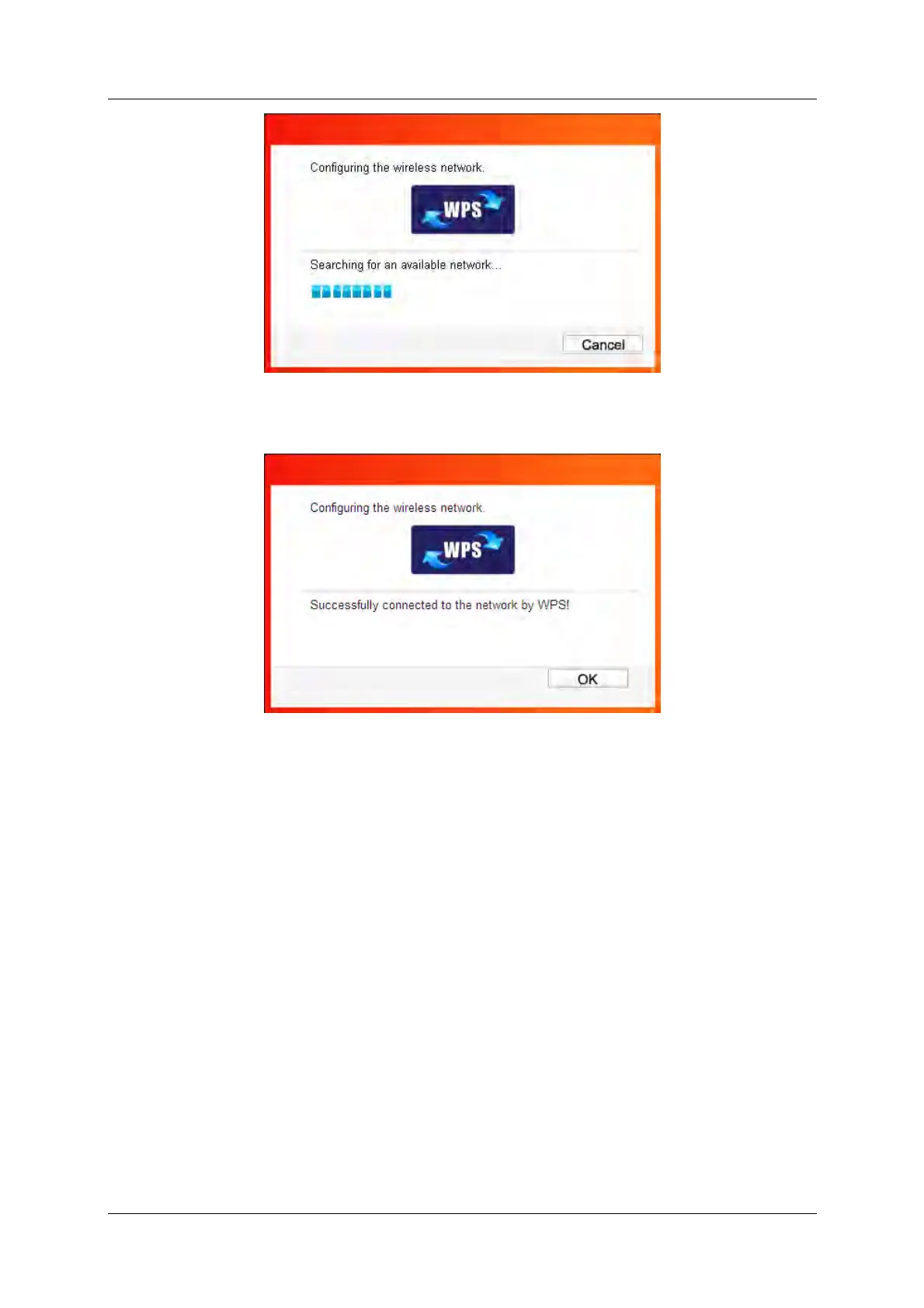

Figure 3-10
4. When the following window appears, you have successfully connected to the network.
Figure 3-11
3.2.2 PIN method
There are two ways to configure the WPS by PIN method:
1) Enter the PIN from your AP device.
2) Enter a PIN into your AP device.
Following are detailed configuration procedures of each way.
3.2.2.1. Enter the PIN from your AP device
1. Open MWCU and click WPS tab. Select Enter the PIN of my access point or wireless
router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router (here
takes 13492564 for example). If you have generated a new PIN code for your router, please
enter the new one instead. Click Connect to continue.
150Mbps Wireless N Nano USB Adapter 14

Mercusys MW150US Specifications

General

Internal	No
Product type	Portable router
Certification	CE, ROHS
Component for	-
Product color	White
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Frequency range	2.4 - 2.4835 GHz
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
USB version	2.0
Connectivity technology	Wireless
Windows operating systems supported	Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Transmit power	0 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power range	0 - 20 dBmW
Package type	Box
Package depth	100 mm
Package width	150 mm
Package height	28 mm
Package weight	56 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth	14.8 mm
Width	18.9 mm
Height	6.85 mm
