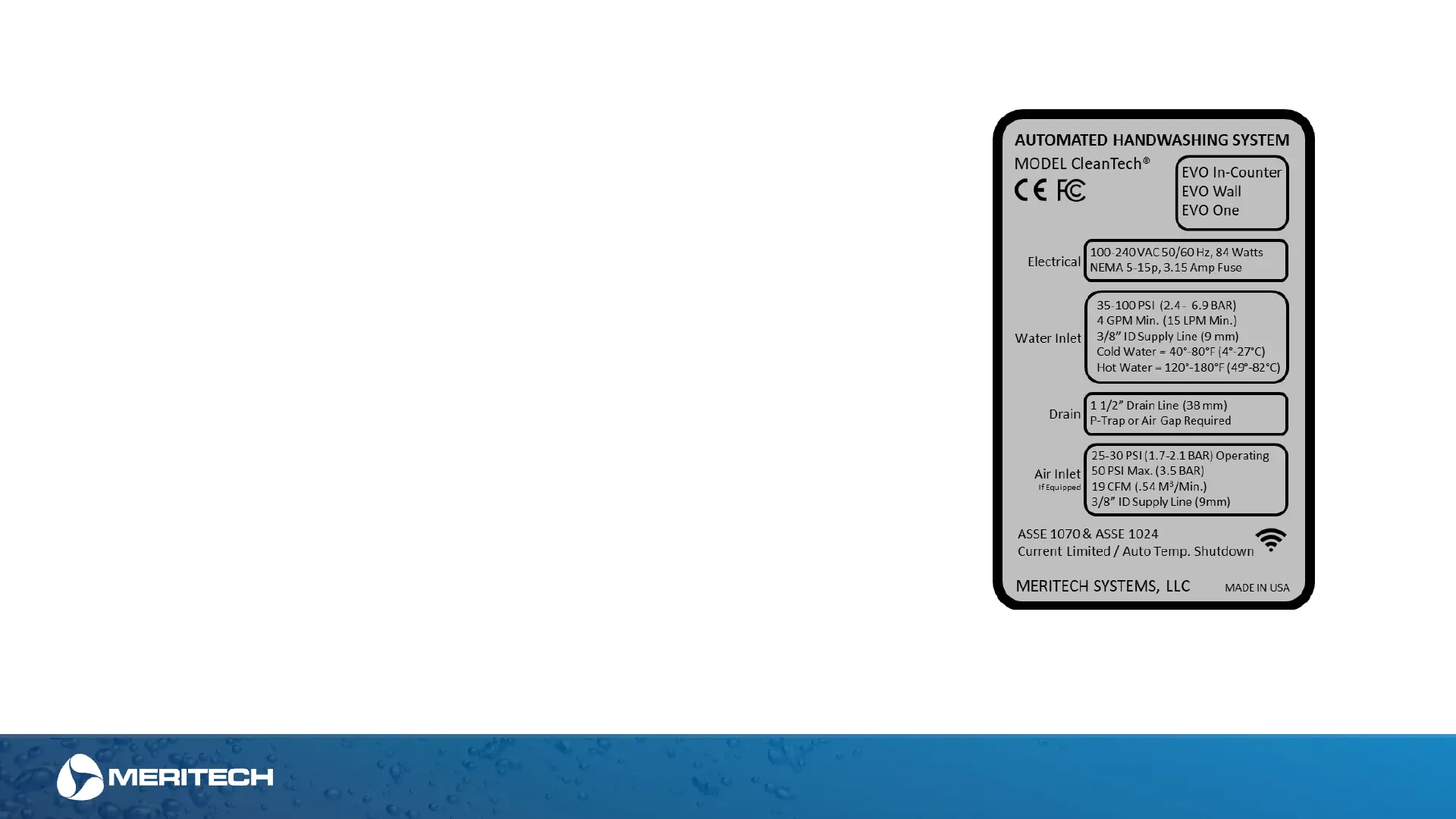

Cycle Activation
• Handwash – Automatic via infrared photo optical sensor
• SelfClean optional – Automatic every 24 hours – Programable for start time (standard is 3 AM)
Electrical
• 6' Power cord, 100 - 240 VAC, NEMA 5-15p - 3.15-amp fuse - Intl. plugs available
• 84 Watts Consumption (.7 amps)
Solutions Level
• Solutions level % remaining is displayed on the HOME screen
• For both UltraPure Solution & Optional SelfClean Solution
• System will not operate if the UPX solutions is EMPTY
Water Consumption
• .7 gallon per 12 Second Cycle
Plumbing
• 1/2" MNPT H&C - ASSE 1070 Thermostatic Mixing Valve
• Cold Temp = 40° - 80° F/Hot Temp = 120° - 180° F
• 35 - 100 PSI / 4 GPM minimum (3/8" ID supply line Min.)
• Water Supply Hoses Included
• Backflow preventor – ASSE 1024
• Note: Consult Meritech if connecting more than 2 system on the same water lines
Drain
• 1 1/2" Slip Drain P-Trap Included
• Ideal wall drain height from floor is 18” (45.7 cm)
Compressed Air (for optional integrated air curtain enhancement)
• 3/8” (9.5 mm) inside diameter supply line recommended., 19 CFM at 25-30 PSI (1.7 - 2.0 Bar) for
optimal performance. Not to exceed 50 PSI (3.6 Bar). Pressure regulator not supplied. Must be
installed external to station.
