XBW Sole Only • 10
Maintenance
MOTOR GEAR BOX & RIGHT-ANGLE DRIVE BOX
Only lubricate the motor gear box when fluid levels are below fill level.
DRIVE CHAIN (every 12 months or as needed)
Always disconnect from electrical source and lockout and tag out before any chain adjustment. Check and
adjust chain tension to be no more than ½“ – 1” deflection of the chain at the midpoint between the sprockets.
Adjustment for the motor driven chain is accomplished by adjusting the auto spring chain tensioner up/down
on the 2 slots provided and in the photo below. Loosen the 2 – ¼”-20 hex nuts holding the auto spring
tensioner and either adjust up or down to so there is the proper chain deflection. Make certain that the chain
tensioner has spring adjustment available and is not bottomed out. See photo below. There should never be
more than ½” – 1” deflection of the chain at the midpoint of its longest run.
NOZZLE CLEANING (every 3 months or as needed)
With time and use the nozzles will become blocked with mineral deposits and soap build-up. We recommend
that you connect a gallon bottle of a mineral deposit remover (or similar item) in place of the boot cleaner
chemical and run the boot Scrubber for a period of 15 minutes by covering the Photoeye, to remove any build-
up that has accumulated in the nozzles. After cleaning the system with mineral deposit remover, replace the
mineral deposit remover with water and flush the system for 5 minutes. Replace with the boot cleaner
chemical and run the system for 1 minute to re-prime the system by holding your hand over one of the
photoeye’s.
For replacement nozzles refer to the spare parts list of this manual.

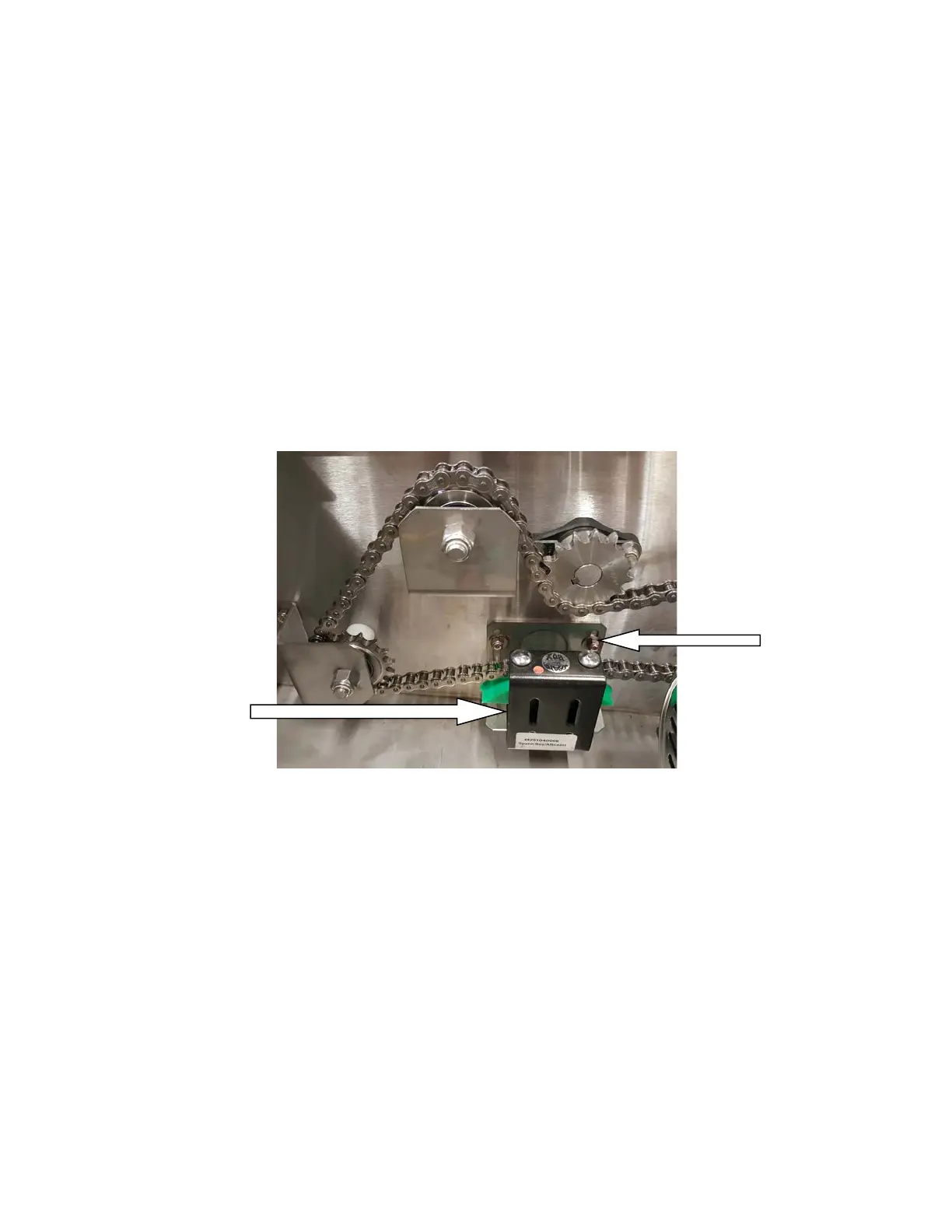

Auto Spring Chain
Tensioner
Slots to adjust Auto
Spring Chain Tensioner
(Qty. 2)
