XBW Sole Only • 14
Walking Grate Height Adjustment
Depending on the tread depth and design of the boot or as the horizontal brushes wear you may need to
adjust the height of the walking grate to expose more or less of the bristle for proper cleaning of the
boots. The grate is set at the factory with approximately 3/8” of the horizontal brush bristles above the
walking grate. Follow the steps below and refer to the photos to adjust the height of the walking grate.
• Caution – system is not designed for individuals over 300 lbs. in weight.
• Do not totally remove the black threaded spacer or use it alone for a height adjustment.
• The black threaded spacer must be on the nut shown below for proper grate support.
• The height adjustment can only be adjusted for 3/8”, ½”, or 5/8” bristle height.
• Modification of the system beyond manufacturer’s specifications could result in personal
injury, system malfunction, and will void warranty.
1. Disconnect system from electrical source and lockout and tag out.
2. Open system covers by pulling up and away on the cover hold down strap.
3. Swing open each brush cover allowing them to rest on the cover chains.
4. Remove the walking grate by removing the 6 wing nuts in each corner of the grate.
5. Lift the walking grate off of the 6 grate support bolts.

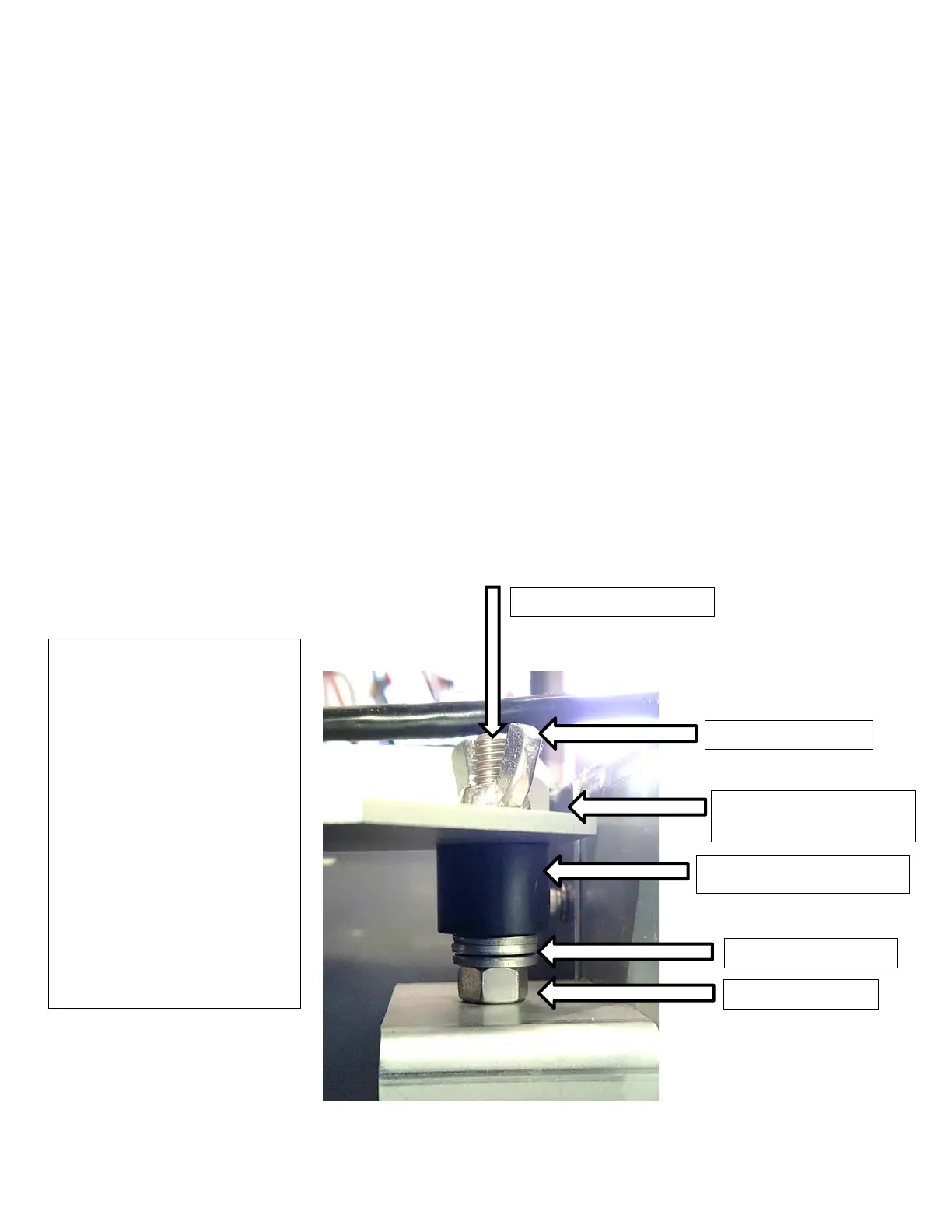

6. The following hardware stack up described below.
3/8-16 x 2 ½” SST Hex Bolt
3/8 SST Split Lock Washer
Under Wing Nut
3/8-16 Black Threaded Spacer
• 3 SST washers below
black spacer is: .325”
Bristle above grate
• 2 SST washers below
black spacer is: .425”
Bristle above grate.
• 1 SST washer below
black spacer is: .525
Bristle above grate.
• 0 washers below black
spacer is: .625 Bristle
above grate.
