Meritor 17X - Page 29

29
Meritor Differential Carrier 17X
2 Maintenance

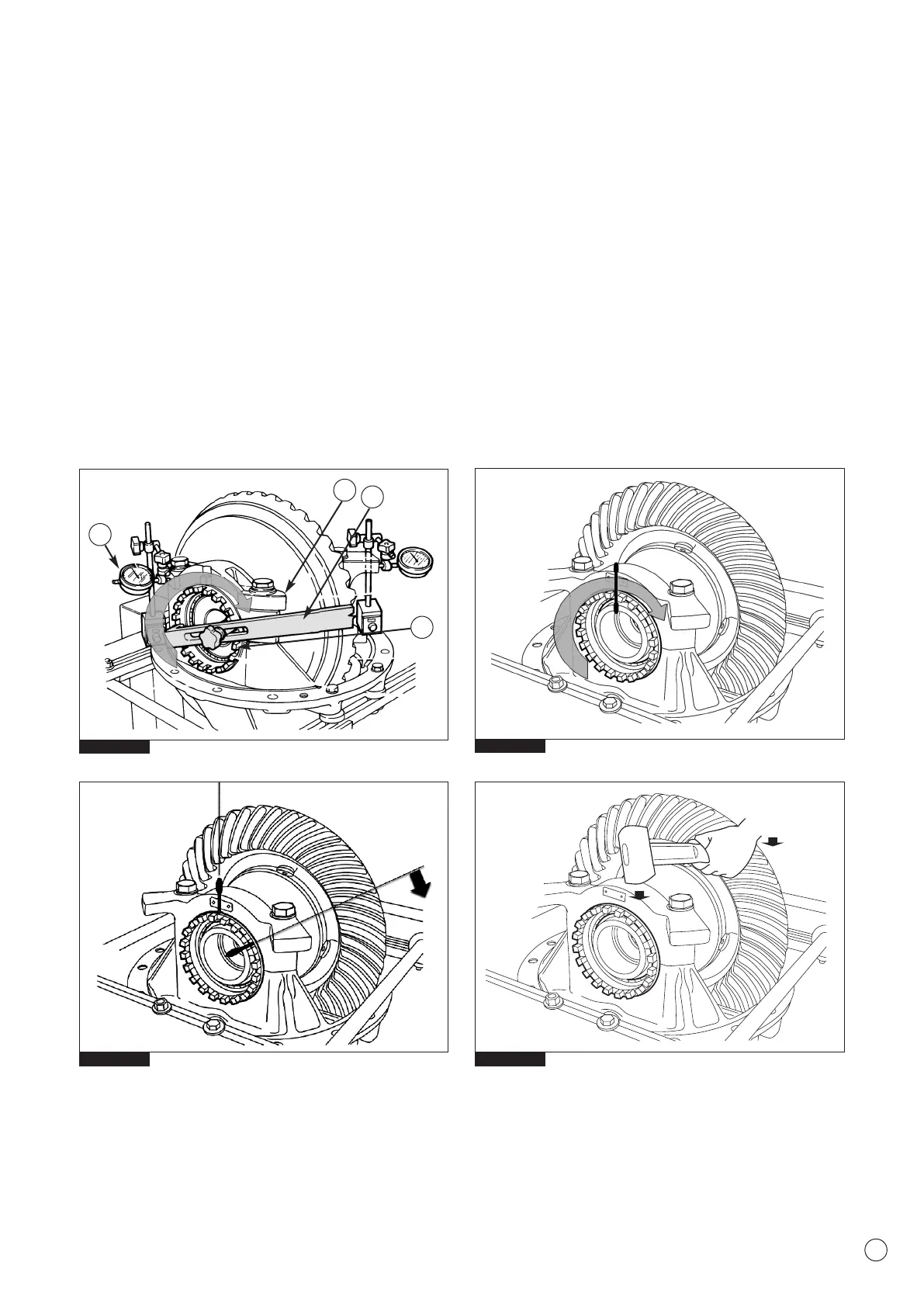

2. Use the wrench to tighten the adjusting ring opposite to the
bearing crown side (Fig. 2.47). When one of the dial indicators
m
oves, this is a “Zero” preload.
Remove the 2 dial indicators.
3. Mark the top notch and cap (Fig. 2.48) and rotate the
adjusting ring to 3, max 4 notches from cap’s mark. Fig. 2.49
4. Punch the top of the cap with a mallet while rotating the drive
gear, to set the 2 diff. tapered bearings during adjusting ring
r
otation.
Fig. 2.50
* Adjusting rings could differ from original shape for clarity.
NOTE: Differential Bearing Cap (X or Y)
Divergence = 0.15 - 0.33 mm
Fig. 2.47
Fig. 2.48
Fig. 2.49 Fig. 2.50
1
2
3
4
3-4 Notches
“Zero”
Preload
