28 Meritor Differential Carrier 17X
2 Maintenance

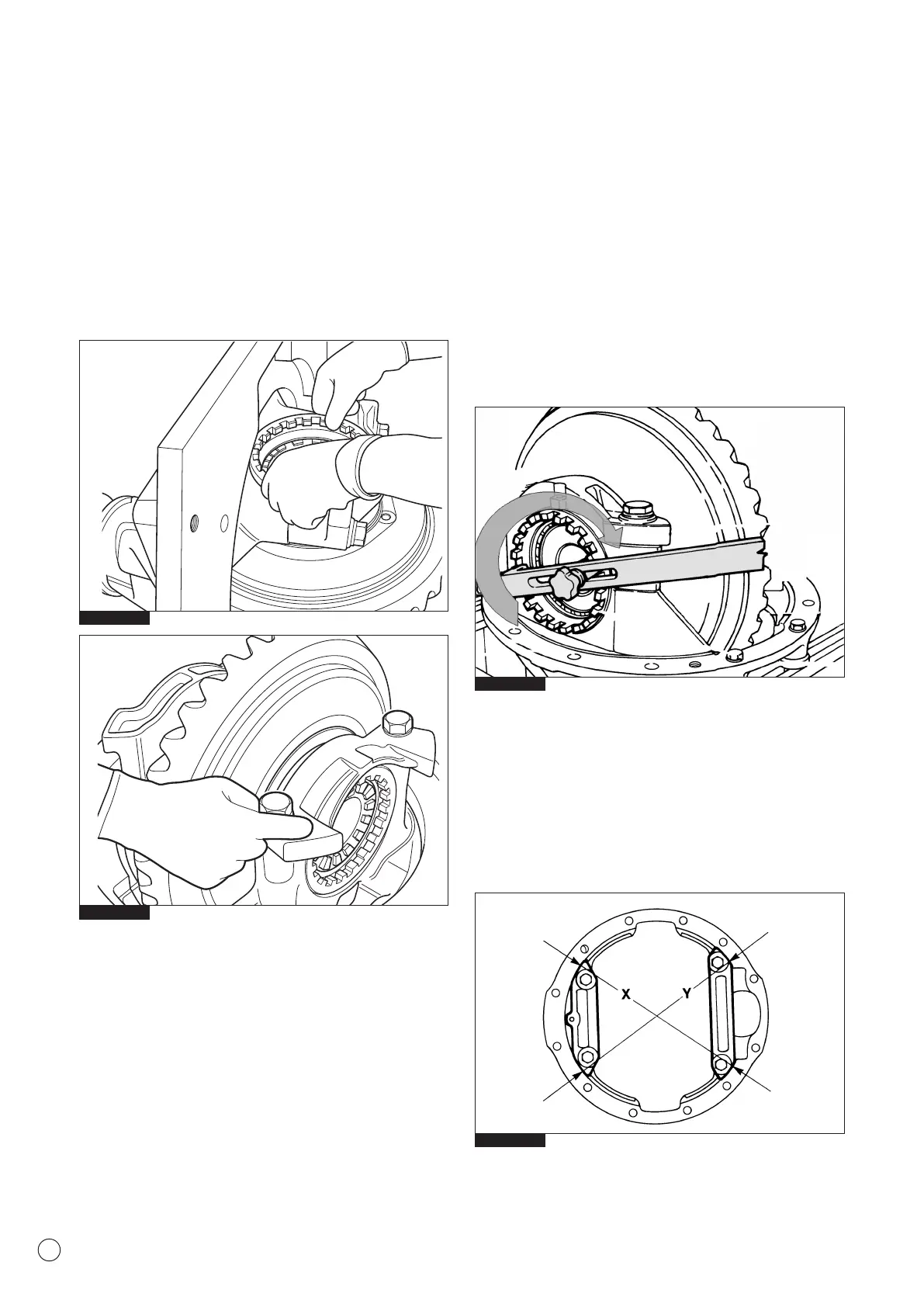

26. Install the bearing cup and adjusting ring L.H.(Fig.2.43) and
install the cap screws and washers that hold the L.H. cap to
t
he carrier. Tighten all the cap screws by hand four to six
turns (Fig.2.44), then tighten to the correct torque value
200 Nm + 90°-105°.
27. Adjust the preload of differential bearings. Using a suitable
tool (CT12), tighten the crown wheel side bearing adjuster
r
ing (Fig.2.45) while turning the crown wheel by hand. When
a resistance is felt at the crown wheel, stop tightening the
adjuster ring.
28. Back off the adjuster ring by 2 notches.
Adjust Differential Bearings Preload
1. Fit two dial indicators according to the above scheme on “X” or
“Y” axis against the wing’s caps and set in the ZERO position.
Fig.2.46
Fig. 2.43
Fig. 2.44
Fig. 2.45
Fig. 2.46
