Meritor Differential Carrier 17X
4 Pinion Seal Replacement
Assembly
1. Thoroughly clean the seal ring seat and remove any trace of
dirt or oil.
2. Position a new pinion seal ring (1).
Fit the suitable service tool (CT01) (2).
3. Using a Meritor suitable set-up pinion nut tighten the pinion
nut until the new pinion seal is fully located in the carrier
(Fig. 4.6)
4. Remove the set-up pinion nut service tool and Meritor suitable
service tool (2). Reassemble the flange and retain with a new
pinion nut. Tighten the pinion nut to the torque figure specified
in Section 6, Tightening Torques using a torque wrench and
multiplier.
5. Reassemble the propeller shaft and tighten fastening nuts to
the torque specified by the vehicle manufacturer.

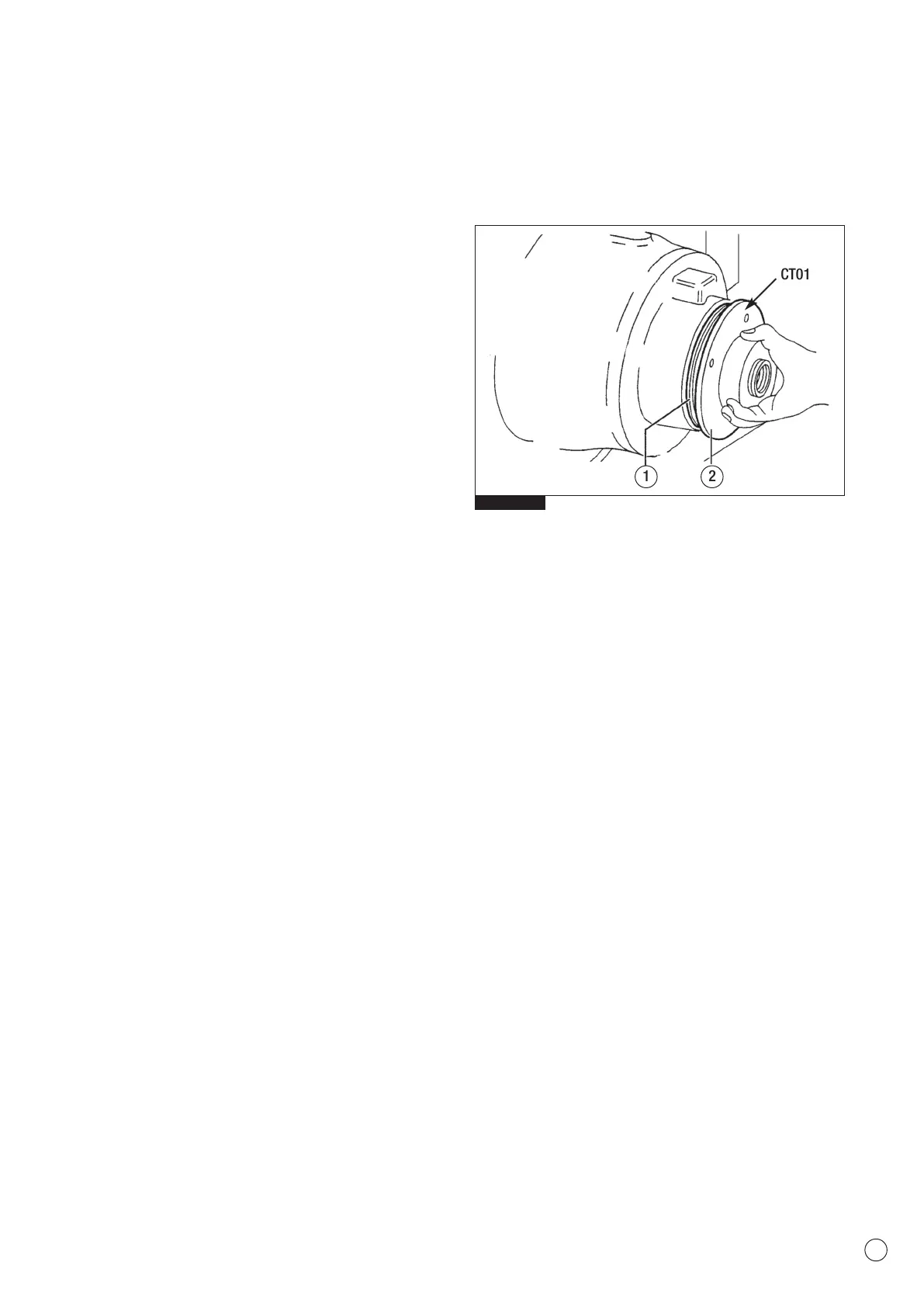

Fig. 4.6
CT01
1 2
