Meritor PreSet - Hub Pilot Wheel Mounting

1 Introduction
2
Meritor Maintenance Manual MM-0637 (Revised 07-12)
Hub Pilot Wheel Mounting
The hub pilot wheel mounting system uses a single two-piece flange
nut on each wheel stud for both single and dual wheel applications.
The hub pilot wheel mounting system is also referred to as the
Uni-Mount-10™ (10 stud), WHD-10™ (10 stud), WHD-8™ (8
stud) and ISO system. Figure 1.5.

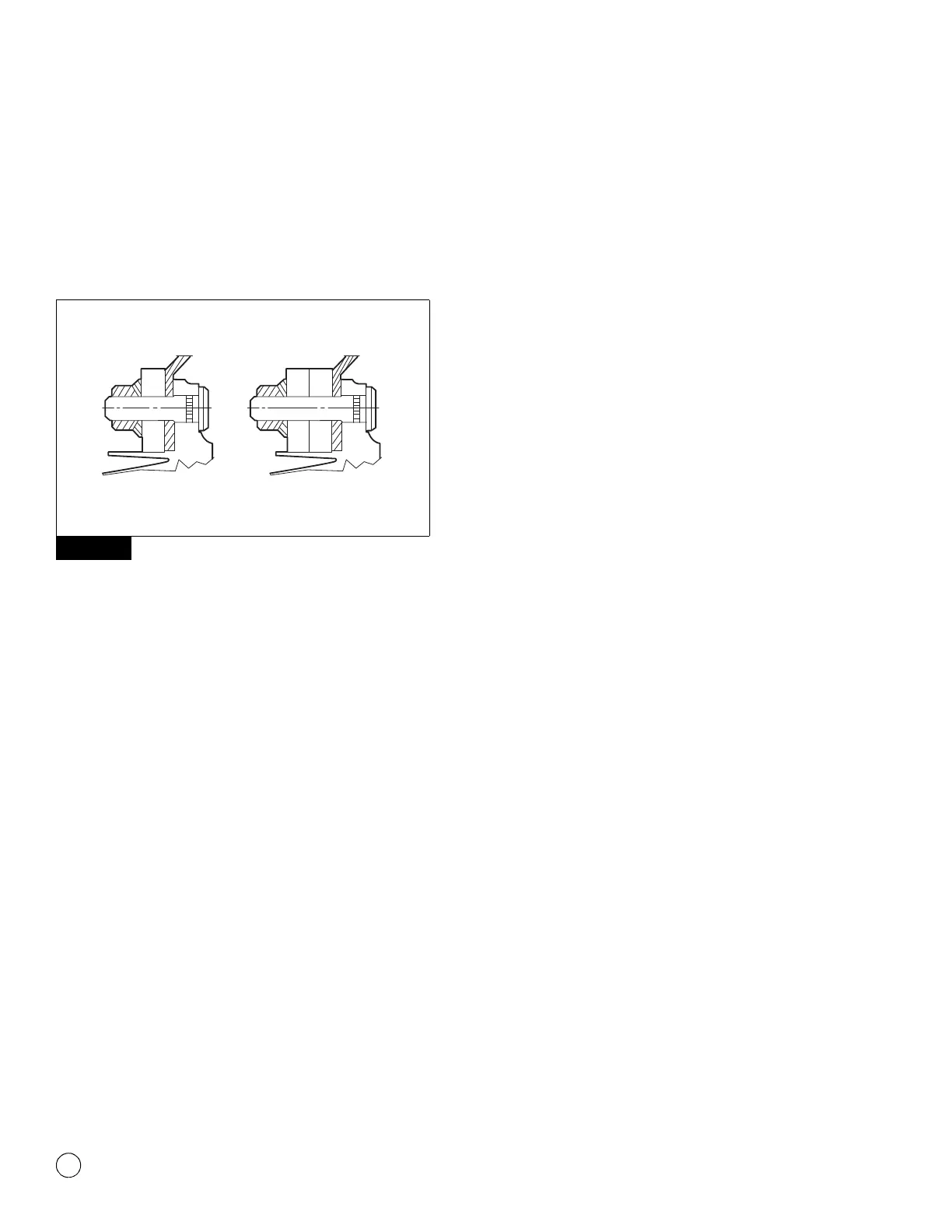

Figure 1.5
Figure 1.5
Hub PiIot Mounting System
4005733a
DUAL
WHEEL
SINGLE
WHEEL
