Merlin RollerAce MR60 - Testing the Door; Installing the Stop Collar; Installing the Weight Bar

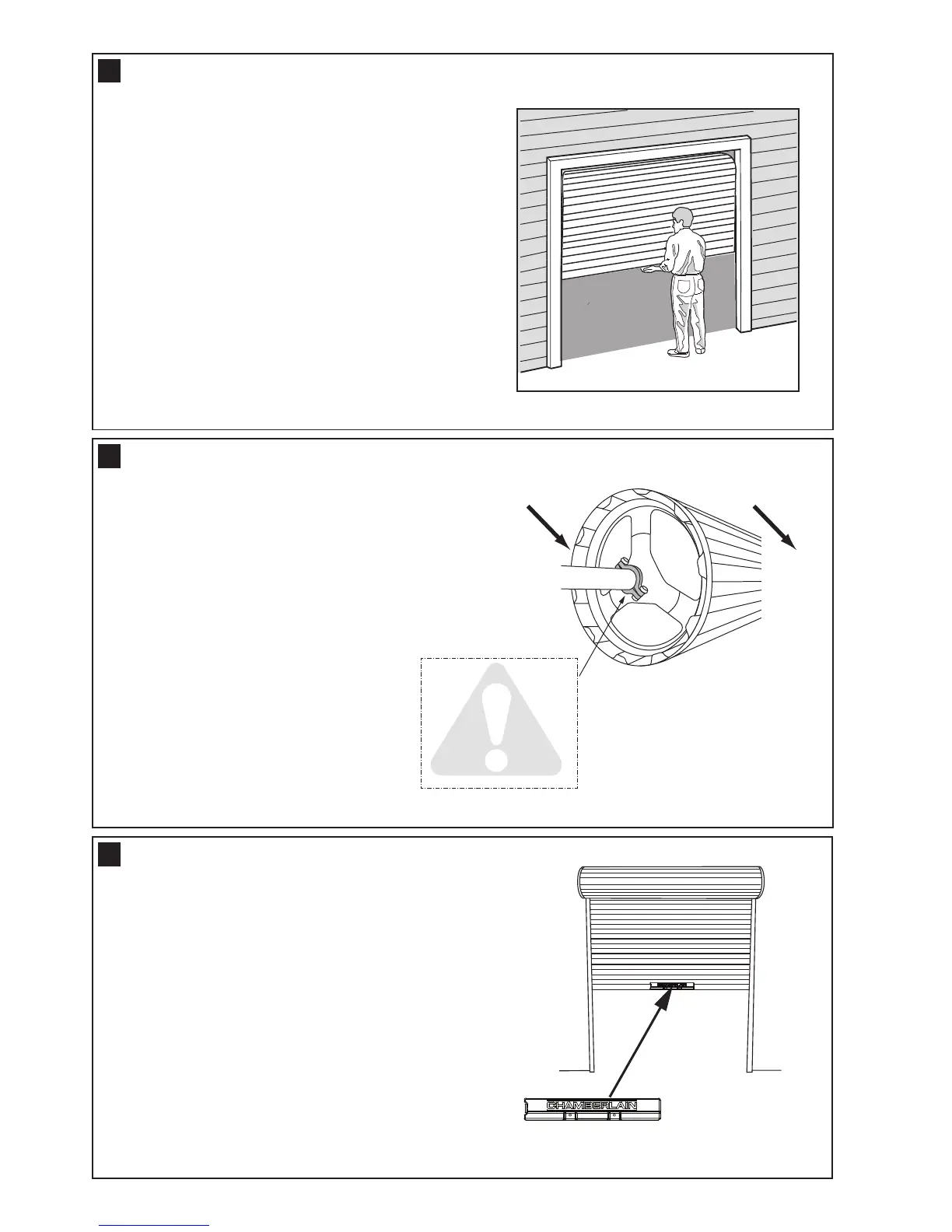

TESTING THE DOOR
• Install stop bracket collar on the opposite end to where
the opener is to be installed.
• Fit the stop bracket hard against the boss of the door
drum. Ensure the U-bolt holding the door axle to the door
bracket is tightly secured.
INSTALLING THE STOP COLLAR
5
• Place the weight bar in the centre of the door.
• If the door curtain does not have a lifting handle you
will need to drill two 5.5mm holes through the two
marked positions, then place the weight bar on the
inside of the door.
• Use the 5mm bolts, washers and nuts (provided) to
fasten the weight bar in place.
NOTE: If the door has a lifting handle, remove the
handle, nuts & bolts. Place weight bar over the
handle holes, insert extended bolts through the
weight bar & fasten handle back in place.
INSTALLING THE WEIGHT BAR (PROVIDED)
6
4
3
Non opener side
Opener side
SAFETY CHECK!
Is stop collar installed?
YES: proceed to the
next step
NO: install the stop collar
before proceeding
C
omplete the following test to ensure your door is well
balanced, and not sticking or binding:
• Disable all locks and remove any ropes connected to
the garage door.
•
Lift the door to about halfway and then release it. The
door should remain suspended entirely by its spring.
• Raise and lower the door to determine if there are any
sticking or binding points (20 Kgf is the absolute maximum
allowable to raise or lower the door in any position).
• If your door does not hold in place or it binds or sticks,
call a qualified door technician before installing the opener.
