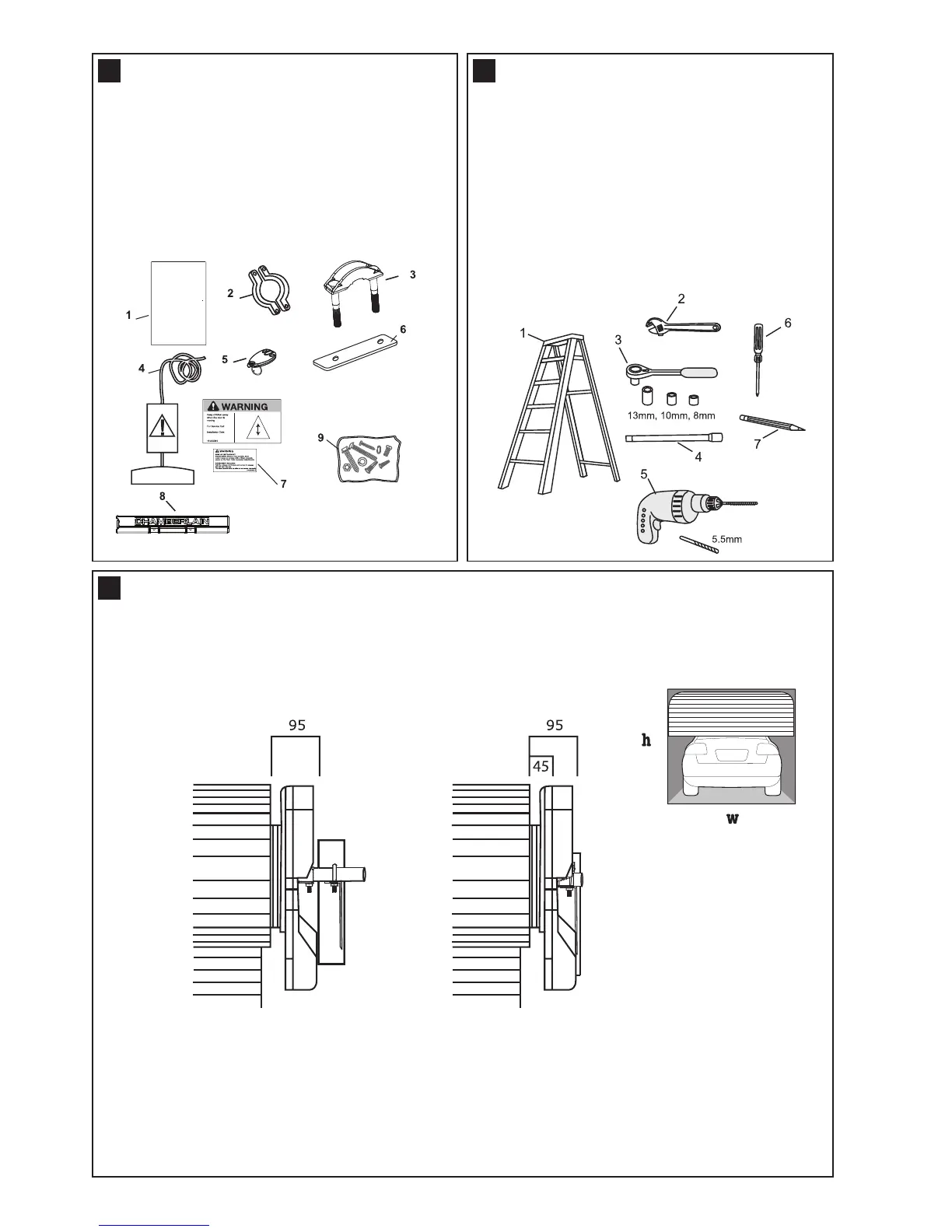

TOOLS REQUIRED
2
1. Ladder
2. Adjustable wrench for U-bolts already
installed on the door
3
. 8mm socket, 10mm socket and 13mm extended
socket and socket wrench
4. 300mm socket extension (for minimum sideroom
installations)
5
. Drill and 5.5mm drill bit
6. Phillips-head screwdriver
7. Marker pen
8. Door stand or similar device to safely support
door (not shown).
1
. Instruction manual (this document)
2. Stop collar
3. Clamp bracket
4. Release handle and cord
5. Transmitters (2)
6. Bracket plate
7. Warning labels (2)
8. Weight bar
9. Hardware bag
C
ARTON INVENTORY
1
2
DOOR REQUIREMENTS
3
Ensure that there is at least 45mm from the edge of the curtain to the edge of the bracket. If the roller door drum is on the
edge of the curtain or is a smaller diameter, additional clearance may be required.
If the drum is more than 60mm from the curtain edge or of a smaller diameter, an extension pole kit may be
required.
Different drum and bracket types may result in the minimum side room clearance not being possible and extension poles
being required. Ensure there is a power point near the opener.
The maximum allowable door height is 3.5m with a maximum curtain area of 13m² (door height in metres multiplied by the
width in metres). The door must be spring balanced.
The Protector System™ (IR Beams) must be installed if the force at the edge of the closing door exceeds 400N (40kgf). Door
axle diameter must not exceed 35mm.
Independent clamping method
Direct clamping method
Door area
h x w = m
2
eg. 2.5m x 3m = 7.5m
2
fig 1
fig 2
