The force, as measured on the closing edge of the door,
should not exceed 400N (40kg). If the closing force is
measured to more than 400N, the Protector System
TM
must be installed (refer section 16).
T
he force setting regulates the amount of power
required to open and close the door.
•
Door should be closed before proceeding.

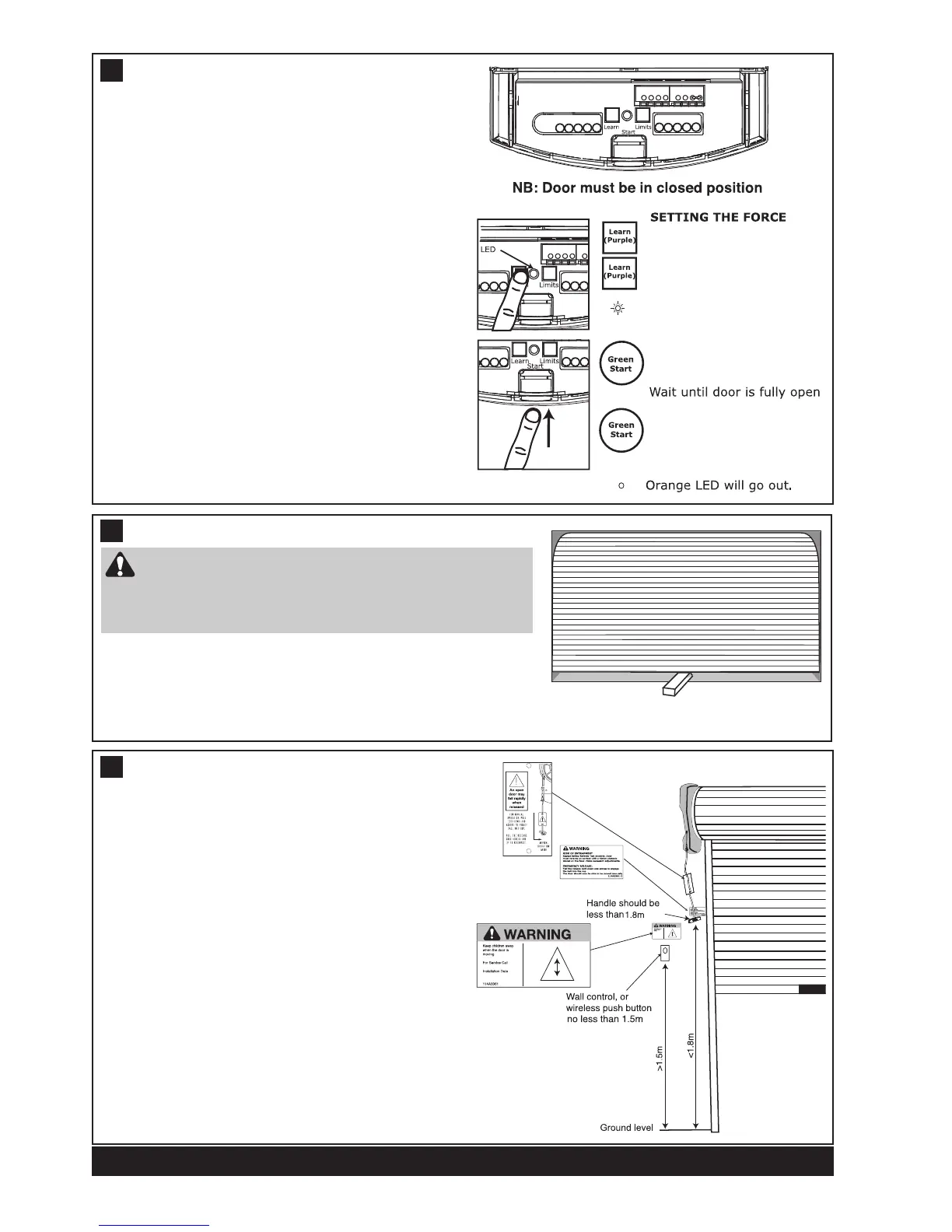

• Press the purple button twice to enter opener into
force adjustment mode. The indicator LED will flash
quickly.
• Press the green start button on the bottom of the
opener. The door will travel to the up limit. Press the
green start button again, the door will travel to the
DOWN limit. The indicator LED will stop flashing when
the force has been learned.
• The door must travel through a complete cycle, up
and DOWN, in order for the force to be set properly.
If the opener cannot open and close your door fully,
examine your door to ensure that it is balanced
properly and is not sticking or binding (refer section 4).
1
3
Operate the door in the down direction. The door must reverse upon
contact with the obstacle. If the door stops on the obstacle, remove
obstacle and repeat limit and force setting (sections 12 & 13).
Repeat test of safety reverse system.
14
8
This test should be repeated monthly to ensure the safe operation of your opener.
Once you have completed your installation and
successfully carried out the safety reverse system test
outlined above. Install the warning labels provided with
your motor.
Ensure the risk of entrapment label is installed adjacent
to the release handle at a height of less than 1.8m.
The WARNING label must be installed in a prominent
place near any fixed control.
Any fixed wall control or wireless door control must be
mounted at a height of no less than 1.5m out of the
reach of children.
Ensure the instruction card concerning the manual
release of the door is attached to the rope as detailed in
section 10.
Read the safety instructions (page 1) for further details
concerning safety.
15
FIXING WARNING LABELS
The safety reverse system test is important. The garage
door must reverse on contact with a 40mm obstacle laid
flat on the floor. Failure to properly adjust the opener may
result in serious personal injury from a closing garage door.
