Service & Parts Manual original Instructions
Part Number 32Z3871 US
Issue 3
39
SPARES &
REPLACEMENT

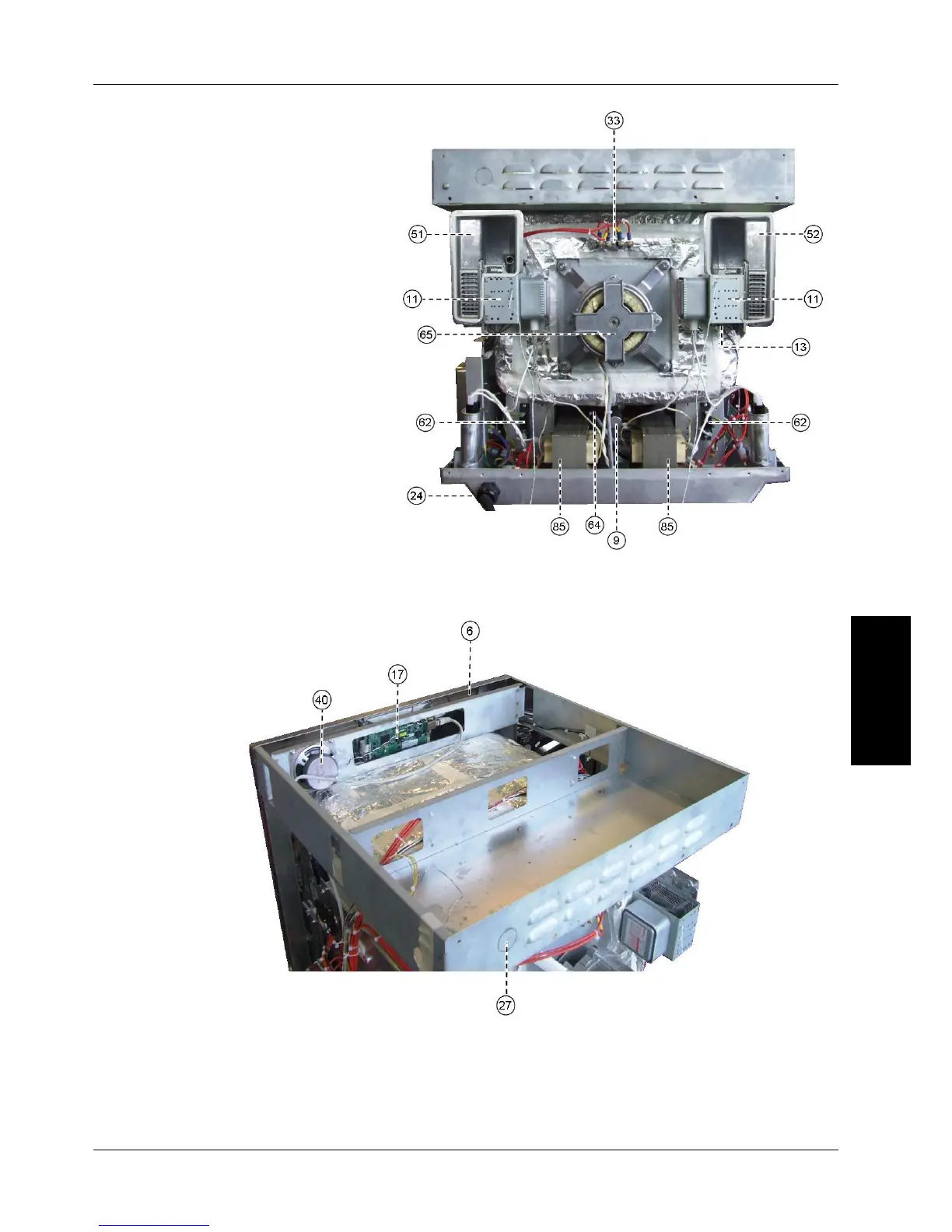

51 Magnetron cooling duct RH
11 Magnetron
33 Heater element x2 (connectors shown)
65 Motor assembly convection fan
24 Gland Power supply cable
52 Magnetron cooling duct LH
62 HT Diode
85 Transformer
69 Cooling fan motor
9 Capacitor 1.5µF (Silver) motor start
13 Overheat stat Magnetron
17 QTS Touch Screen PCB
6 Switch oven ON/OFF (rear connection)
21 Multi Voltage Relay
40 Speaker unit
27 Ethernet port
