Service & Parts Manual original Instructions
P
art Number 32Z3871 US
Issue 3
PRODUCT
DETAILS

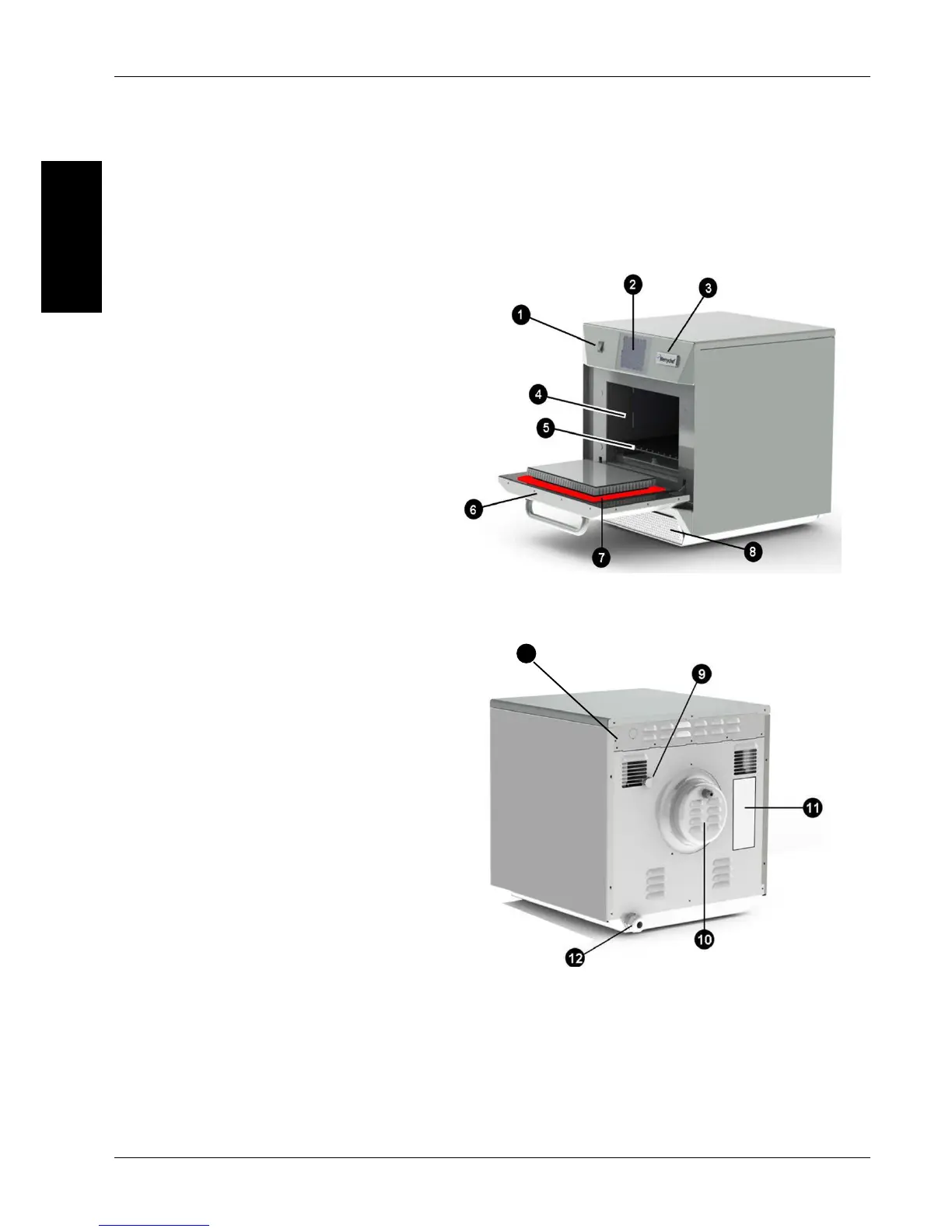

3 MAIN FEATURES
1 ON/OFF SWITCH
ON (I) activates the oven, OFF (0) switches the
oven to standby mode. IT DOES NOT ISOLATE
INTERNAL WIRING FROM THE MAINS SUPPLY.
2 CONTROL PANEL
Touch sensitive controls (easyToUCH) for
controlling oven functions, including diagnostics
and service mode.
3 USB menuKey
A socket
, located under the logo, allows a USB
menuKey to be used to update the cooking
programs and oven rmware on the pcb’s.
4 OVEN CAVITY
T
he oven cavity is mostly constructed from
stainless steel panels which must be kept clean
to avoid contamination of food products and
allow the oven to perform at peak e ciency.
5 IMPINGER PLATES (Upper & Lower)
Dir
ect the air in the cavity. They must be cleaned
on a regular basis, and kept free of debris.
6 OVEN DOOR
The twin-skinned door has a thermally insulated
inner section to lower the surface temperature
and incorporates a microwave choke.
7 DOOR SEAL
Provides a tight seal around the door and
must be kept clean. The seal must be checked
regularly and replaced if worn or damaged.
8 AIR FILTER
T
he air intake provides cooling air for internal
components and must be cleaned daily and
must NOT be obstructed. The lter must be in
place for the oven to function.
9 STEAM VENT
V
ents steam from the oven cavity.
10 HOT AIR FAN
Circulates hot air through the catalytic
convertors and oven cavity.
11 RATING PLATE
The rating plate, located on the rear oven cover,
states the Model, Serial Number, Electrical
Ratings and Manufacturers telephone number.
12 MAINS ELECTRIC POWER CABLE
Located on the rear of the oven and must be
replaced if worn or damaged.
13 OH STAT ACCESS BOLT
To reset cavity OH Stat remove bolt to gain
access to stat.
13
