Installation and Operating original instructions.
Part Number 32Z3797 GB
Issue 1
PRODUCT DETAILS
2
1
Establishments with standard (Type ‘B’) circuit breakers are
sensitive to ‘surges’ which occur on switching on freezers,
refrigerators and other catering equipment, including
microwave ovens. Because of this, we strongly recommend
that a separate Type ‘C’ circuit breaker (designed specically
for this type of equipment) must be tted. An individual,
suitably rated circuit breaker should be tted for each oven
installed.
ELECTRICAL INSTALLATION
DANGER!
THIS APPLIANCE MUST BE EARTHED. FAILURE
TO DO SO MAY RESULT IN ELECTRIC SHOCK
AND DEATH.
The oven must be connected to a separate electrical
supply installed by a qualied and approved
electrician.
A suitably rated isolating switch with a 3mm contact
gap on all poles should be tted for each oven
installed.
If you are in any doubt about your electrical supply,
seek the advice of a qualied electrician.

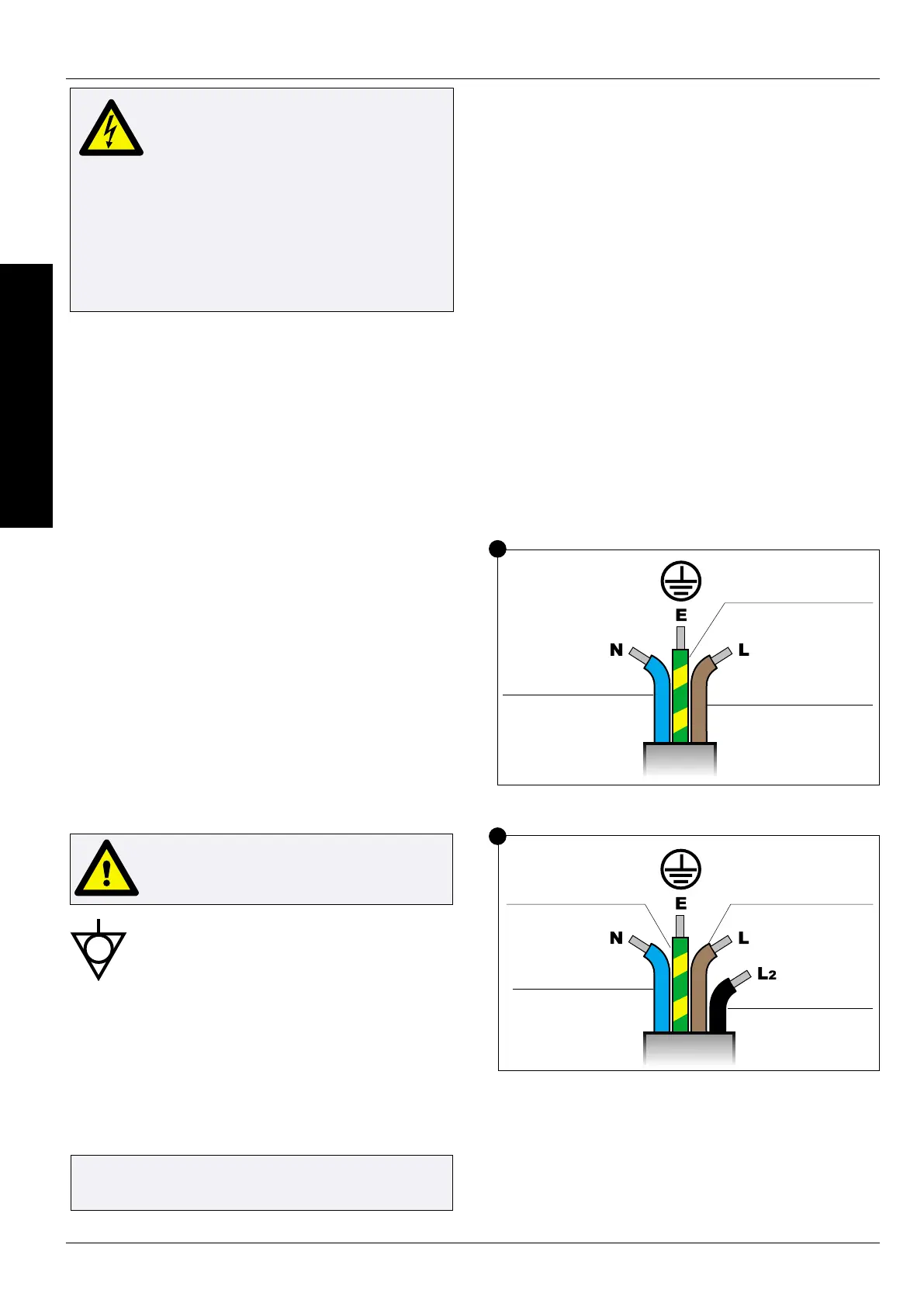

SINGLE PHASE
BLUE (NEUTRAL)
GREEN & YELLOW
(EARTH)
BROWN (LIVE)
TWIN PHASE
GREEN & YELLOW
(EARTH)
BLUE (NEUTRAL)
BROWN TO LIVE No.1
BLACK TO LIVE No.2
WARNING: HIGH LEAKAGE CURRENT EARTH
CONNECTION IS ESSENTIAL.
This equipment complies with EN61000-3-11, however,
when connecting sensitive equipment to the same supply
as the oven, the user should determine in consultation with
the supply authority, if necessary, that a low impedance
supply is used.
SINGLE PHASE (1)
UK models are tted with a Blue 32Amp Plug to IEC 60309
(EN 60309)
The Circuit Breaker should be rated at 40A (Type C).
TWIN PHASE (2)
Twin Phase models should be connected as shown.
The Circuit Breaker should be rated at 20A/Phase (Type C).
EQUIPOTENTIAL
An Equipotential Earth point is provided on
the rear panel of the oven for independent
Earth (GND) connection.
POWER SUPPLY: EARTH LEAKAGE CIRCUIT
BREAKERS
If the oven is connected to an Earth Leakage Circuit Breaker
device, this should allow a minimum of 30 milliamperes
earth current without interrupting the circuit.
