Merrychef eikon e5 User Manual

6
Installation and Operating original instructions.
Part Number 32Z3797 GB
Issue 1

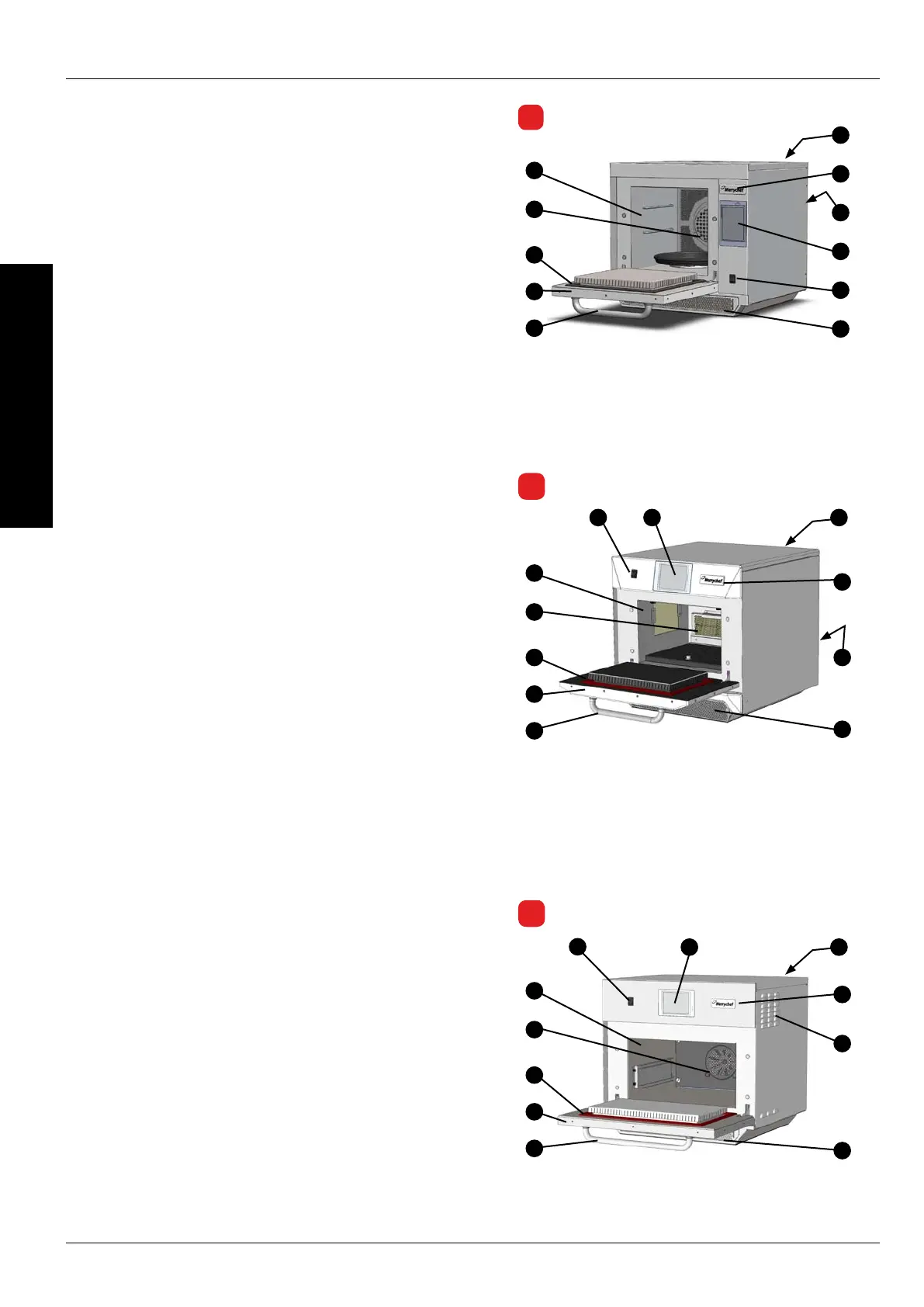

PRODUCT DETAILS
11
11
11
10
10
10
9
9
9
8
8
8
7
7
7
1
1
1
2
2
2
3
3
3
5
5
5
4
4
4
6
6
6
e3
e4
e5
MAIN FEATURES
ON/OFF SWITCH1
When switched ON the easyToUCH screen illuminates
the oven controls. Note; turning this switch OFF does not
isolate the oven from the electricity supply.
easyToUCH SCREEN CONTROL PANEL
2
See ‘OPERATION & CONTROLS’ for details.
RATING PLATE
3
Located on the rear panel of the oven states the serial
number, model type & electrical specications.
MenuConnect
4
A USB socket located under the Merrychef logo allows
changes to programs stored on the oven (See ‘USB
MenuConnect’, Operation & Controls section, for details of
updating oven programs).
AIR OUTLETS
5
Air used to cool internal components and steam from
the cavity escape through the air outlet vents located
on the rear of the oven and side panel of the e5 model.
The air outlets must be kept free from obstruction and
they will not allow microwave energy to escape into the
environment.
AIR INLET FILTER
6
The air lter situated at the lower front of the oven is
part of the ventilation system and must be kept free of
obstruction and cleaned daily as described under ‘Cleaning
& Maintenance’. Note, the oven will not operate without the
air lter tted.
DOOR HANDLE
7
This is a rigid bar which is pulled downwards and away
from the oven to open.
OVEN DOOR
8
This is a precision-made energy barrier with three
microwave safety interlocks. The door must be kept clean
(see ‘CLEANING’) and should NOT be used to support heavy
objects.
DOOR SEALS
9
These ensure a tight seal around the door. They should
be kept clean and checked regularly for signs of damage.
At the rst sign of wear they should be replaced by a
Merrychef approved Service Agent.
CONVECTION FAN, GREASE FILTER & CATALYTIC
10
CONVERTOR (model dependant)
The metal grease lter grill covering the convection fan
must be kept clean and free of debris. Great care should
be taken when cleaning this area of the oven noting the
dierent oven requirements shown under ‘Cleaning &
Maintenance’ in this manual.
OVEN CAVITY
11
The oven cavity is constructed from stainless steel and
must be kept clean by following the cleaning instructions
in the ‘Cleaning & Maintenance’ section of this manual.
