Installation and Operating original instructions.
Part Number 32Z3797 GB
Issue 1
11
PRODUCT DETAILS
230V
230V
230V
400V
16 Amps
16 Amps
32 Amps
Brown
Blue
Black
Yellow/GreenEarth
Grey
Brown
Blue
DANGER!
THIS APPLIANCE MUST BE EARTHED.
FAILURE TO DO SO MAY RESULT IN
ELECTRIC SHOCK AND DEATH.
The oven must be connected to a separate
electrical supply installed by a qualied and
approved electrician.
A suitably rated isolating switch with a 3mm
contact gap on all poles should be tted for each
oven installed.
WARNING
HIGH LEAKAGE CURRENT.
EQUIPOTENTIAL
An Equipotential Earth point is provided on
the rear panel of the oven for independent
Earth (GND) connection.
Phase Loading
Oven loading per phase is not equal therefore we
recommend that other electrical equipment is
connected to L3+ N.
Circuit Breakers
TWIN PHASE
Circuit Breakers should be rated at 20A per Phase
and be Time Delay, Motor Start Type (European Type C).
SINGLE PHASE
Circuit Breakers should be rated at 40A per Phase
and be Time Delay, Motor Start Type (European Type C).
Earth Leakage Circuit:
If the oven is connected to an Earth Leakage Circuit
Breaker device, this should allow a minimum of 30
milliamps earth current without interrupting the circuit.
If you are in any doubt about your electrical supply,
seek the advice of a qualied electrician.

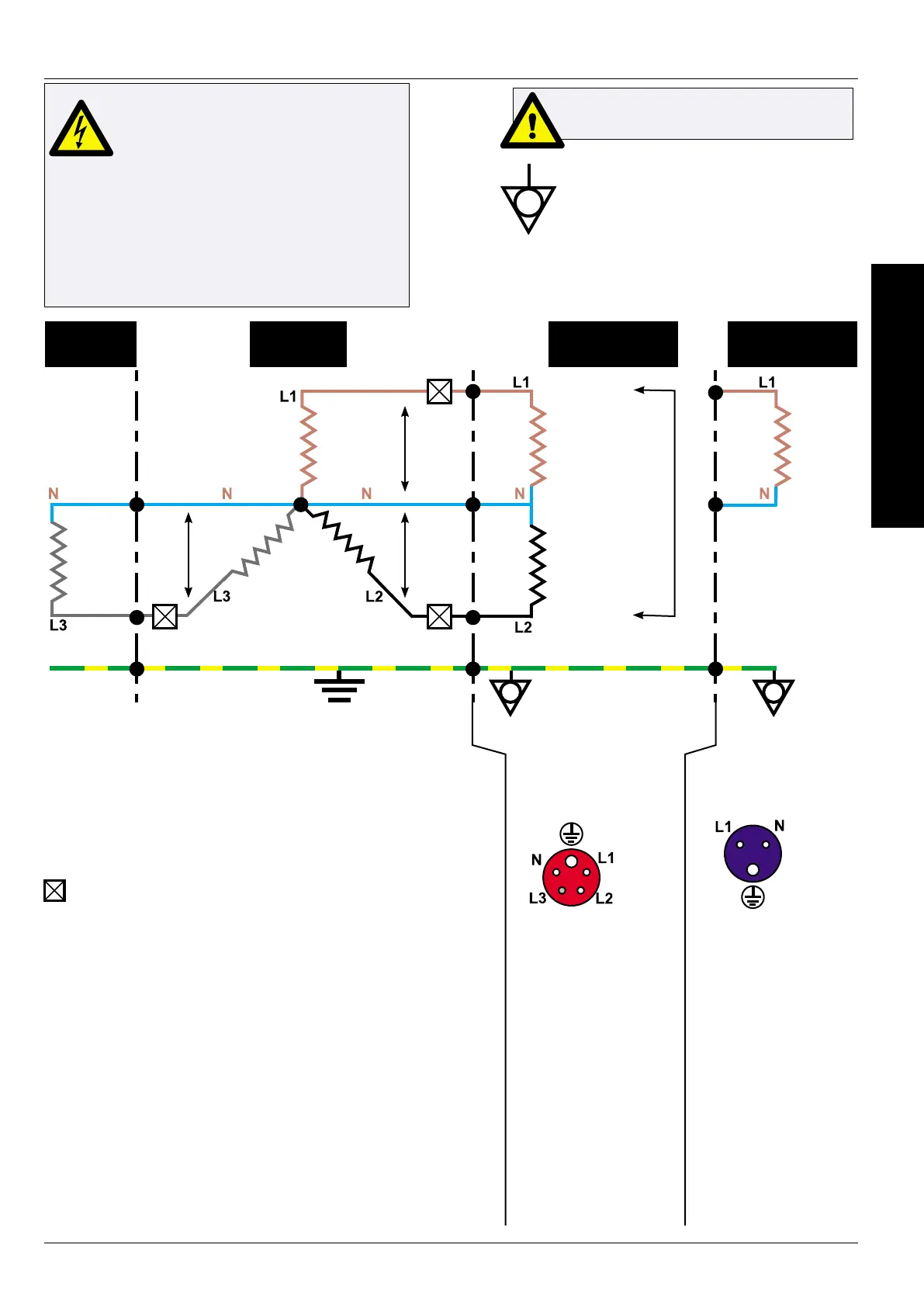

ELECTRICAL INSTALLATION GUIDE
OTHER
EQUIPMENT
ELECTRICAL
SUPPLY
TWIN PHASE OVEN
LOADING
SINGLE PHASE OVEN
LOADING
Earth connection is essential.
Phase Loading Diagram
RED
Rear view of plug
Plug Type:
Three Phase
32Amp
IEC 60309
[EN60309]
L1+ L2+ N+ E
[L3 is not used]
20 Amp
BLUE
Rear view of plug
Plug Type:
Single Phase
32Amp
IEC 60309
[EN60309]
L1+N+E
40 Amp
To Next Page
