Page 11 MD Series Ovens 32Z3329 Issue 6

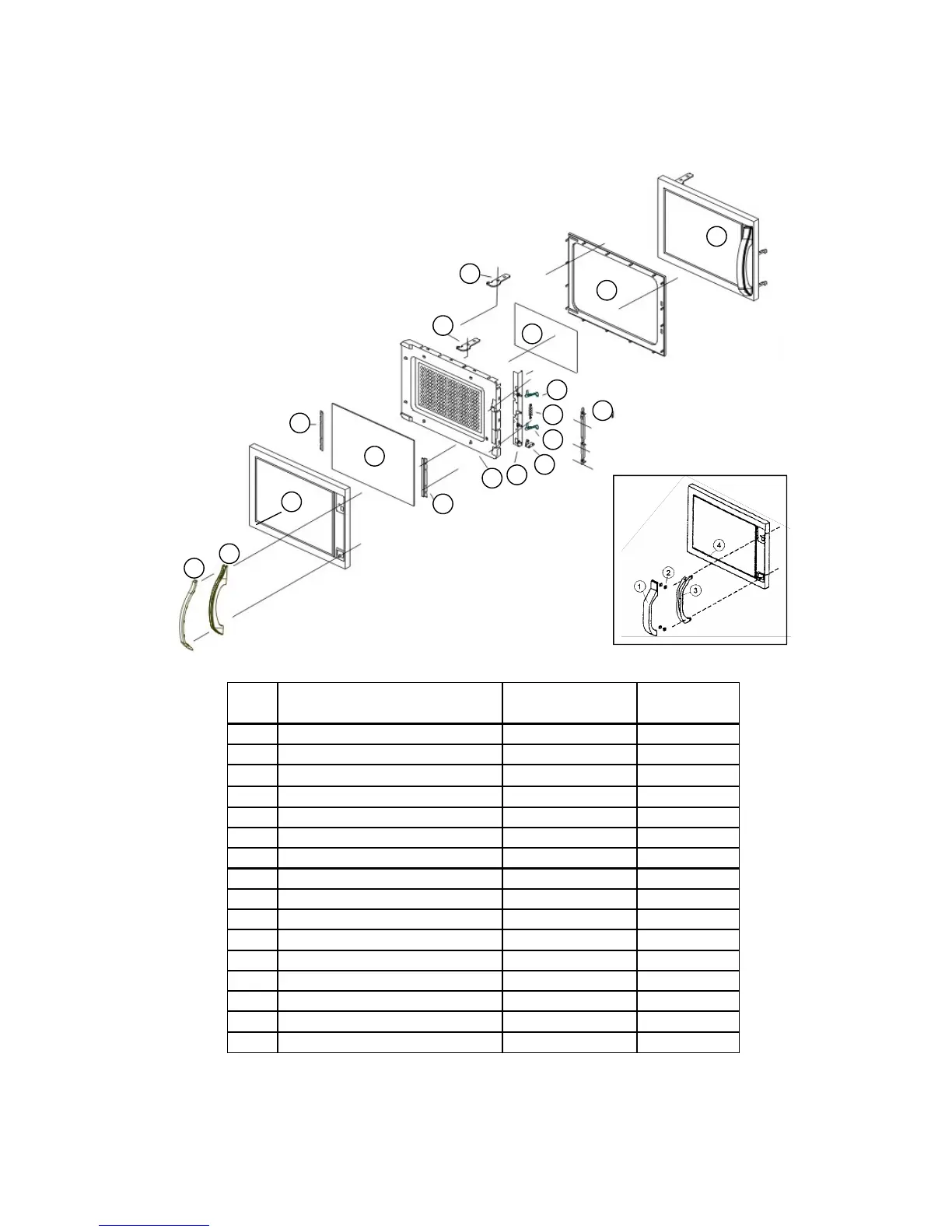

Door assembly MD-Series
No Description MD1000,
MD1400, MD1800
1 Outer Handle 30M0001
2 Handle Bearing (4) 30M0002
3 Inner Handle 30M0003
4 Door Outer Skin 30M0004
5 Glass Locator 30M0005
6 Outer Door Glass 30M0006
7 Door Body 30M0007
8 Door Catch Bracket 30M0008
9 Door Catch (2) 30M0009
10 Door Catch Link Rod 30M0010
11 Door Spring 30M0011
13 Door Catch Crank 30M0013
14 Upper / Lower Hinge Plate 30M0014
15 Inner Door Film 30M0015
16 Choke Cover 30M0016
80 Door Assembly 11M0334
MD1800
From Jan 2007
30M4002
——-
30M4003
30M0004
30M0005
30M0006
30M0007
30M0008
30M4009
30M0010
30M4011
30M0013
30M0014
30M0015
30M0016
11M4334
80
16
14
15
14
1
3
5
5
4
6
7
8
13
9
11
9
10
Note that the MD1800 currently in production has a different door
interlock system to earlier MD Series models and can be identified
from the handle which is solid and does not have the door catch
release mechanism on the inside face of the handle.
Door Handle
Models before January 2007,
MD1000, MD1400 & MD1800
To Next Page
