MD Series Ovens 32Z3329 Issue 6

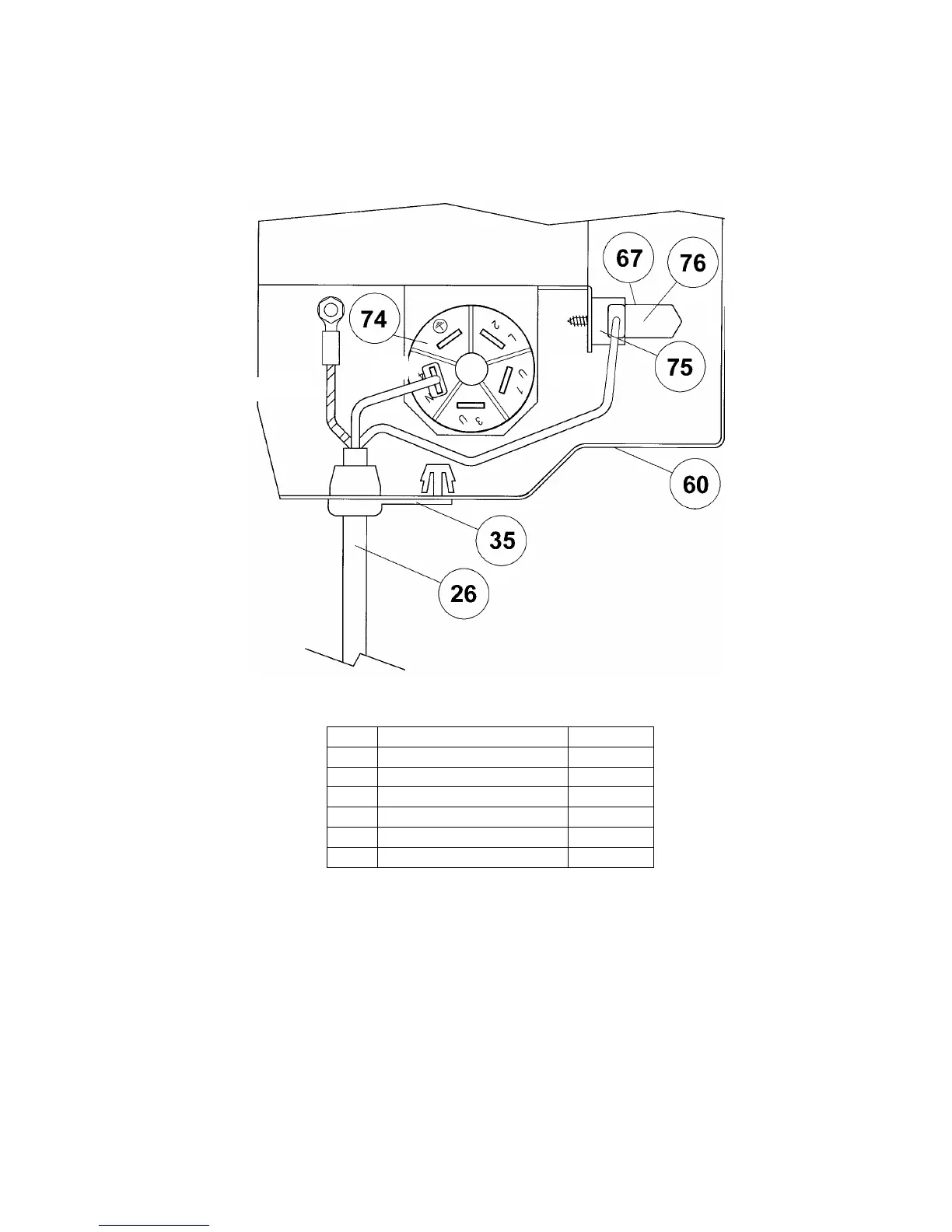

Input wiring
details
26
Mains Cable Assy
31Z0220
35
Strain Relief Bush
31Z1036
60
Rear Panel
30M0060
67
Fuse Cover
20Z1080
74
16A Mains Filter
30Z0997
75
Fuse Holder
30Z0231
76
Fuse 13A Anti surge
30Z0168
Green/Yellow
Brown
Blue
15
17
Table of Contents
Table of Contents
2
Safety Code
3
Product Specifications
4
Installation Instructions
5
Error Codes and Diagnostics
6
Power Output Testing to BS en 60335-2-90
7
Power Output Testing
8
Power Transformer Test
8
High Voltage Capacitor Test
9
High Voltage Rectifier Test
9
Magnetron Test
9
Exploded View
10
Door Assembly
11
Door Replacement and Adjustment
12
Door Servicing
13
Door Interlock Operation
14
Membrane Panel Circuit
15
Input Wiring Details
16
Part Number Identification List
17
Circuit Diagram
19
Wiring Diagram
19
Appendix 1: Cleaning Procedure
20
Appendix 2: Door Interlock All Models before Jan 2007
21
Manual Corrections and Modifications
22
