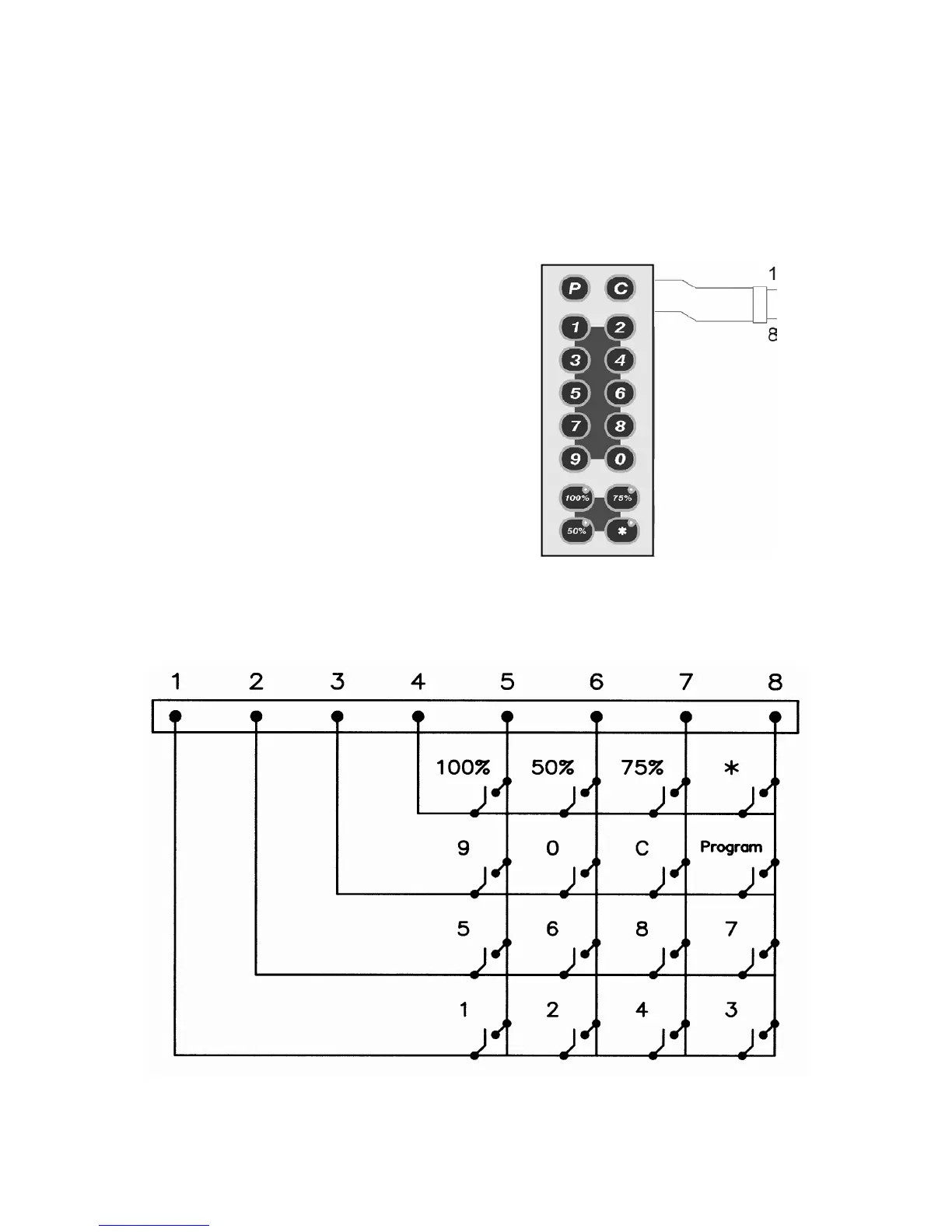

Membrane panel circuit
You will need:
A Digital Multi-meter (D.M.M.)
Procedure:
1. Isolate the oven from the mains supply.
2. Remove the Logic Assembly from the
Control Panel Housing.
3. Unplug the membrane “tail” from the Logic
PCB Assembly.
4. Using a D.M.M., check for continuity
between the correct terminals when the
pads are pressed.
5. When the panel has been tested, re-
assemble and re-test the control housing.
