Page 13 MD Series Ovens 32Z3329 Issue 6
CHOKE COVER REMOVAL

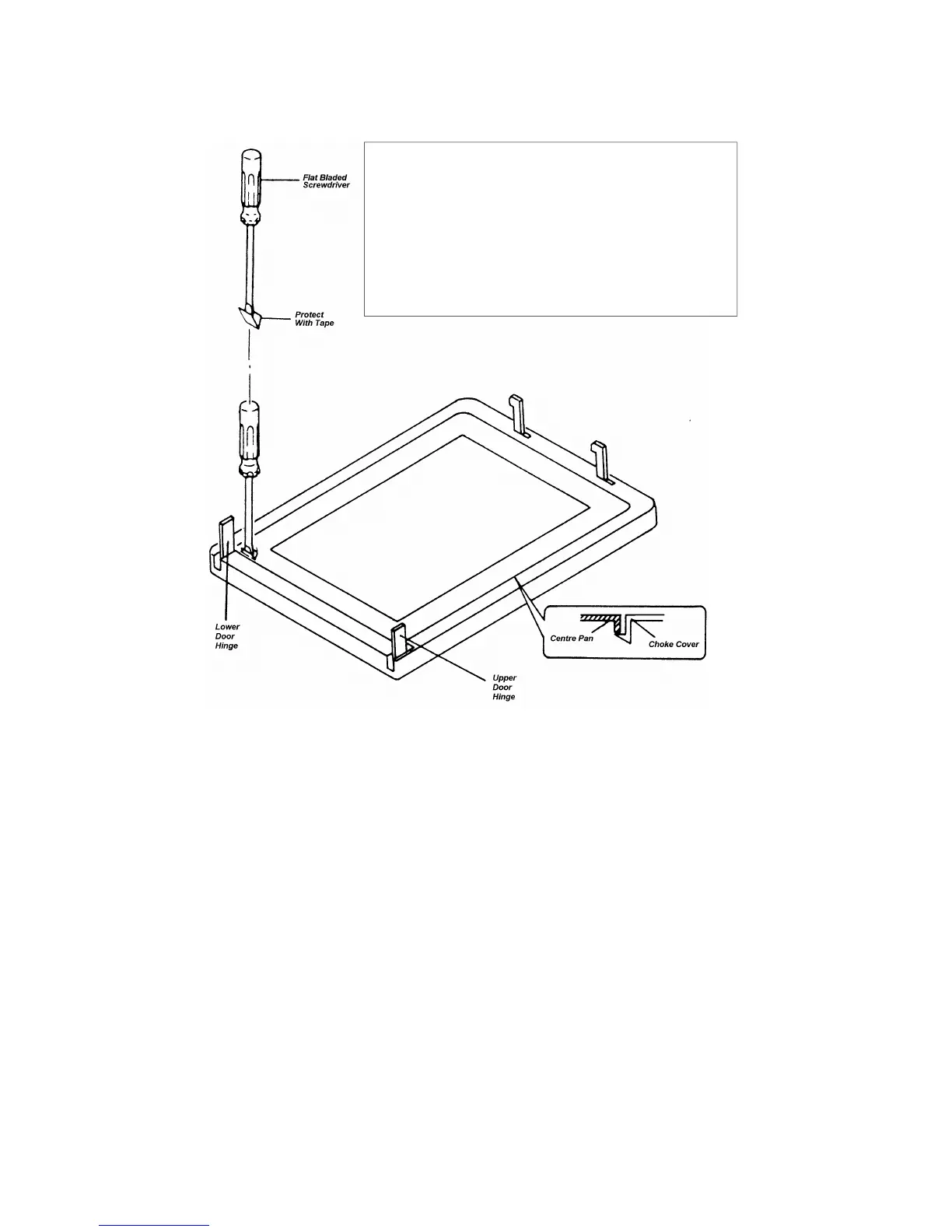

1. Insert a flat type screw driver into the gap
between the Choke Cover [16] and Door Body [7]
as shown below to free the engaging clips. A
protective piece of tape should be used so as not
to damage the door panel.
2. Lift up the Choke Cover.
Door servicing
DOOR COMPONENTS REMOVAL
Place the Door Assembly [80] on a soft cloth with the Choke Cover [16] facing up.
UPPER AND LOWER OVEN HINGE REMOVAL
1. Remove the Choke Cover, referring to "CHOKE COVER REMOVAL".
2. Release the Door Hinges [14] from the door panel.
DOOR HANDLE REMOVAL
1. Remove the two screws holding the Door Handle [1] to door.
2. Remove the Door Handle from the Door Body.
UPPER AND LOWER DOOR CATCH REMOVAL
1. Remove the Inner Handle [3] from the door assembly.
2. Remove the three screws holding the Door Catch Bracket [8] to the Door Body.
3. Release the Door Spring [11] from the tab of the Door Catch Link Rod [10] and Door
Catch Bracket.
4. Release the Catches [9] from Door Catch Link Rod and Door Catch Bracket.
DOOR OUTER SKIN REMOVAL
1. Set the four tabs of the Door Outer Skin [4] upright.
2. Remove the Door Outer Skin from the Door Body [7].
DOOR GLASS REMOVAL
1. Remove the four screws holding the two Glass Locators [5] to the Door Body [7].
To Next Page
