Page 12 MD Series Ovens 32Z3329 Issue 6
Door replacement and door adjustment

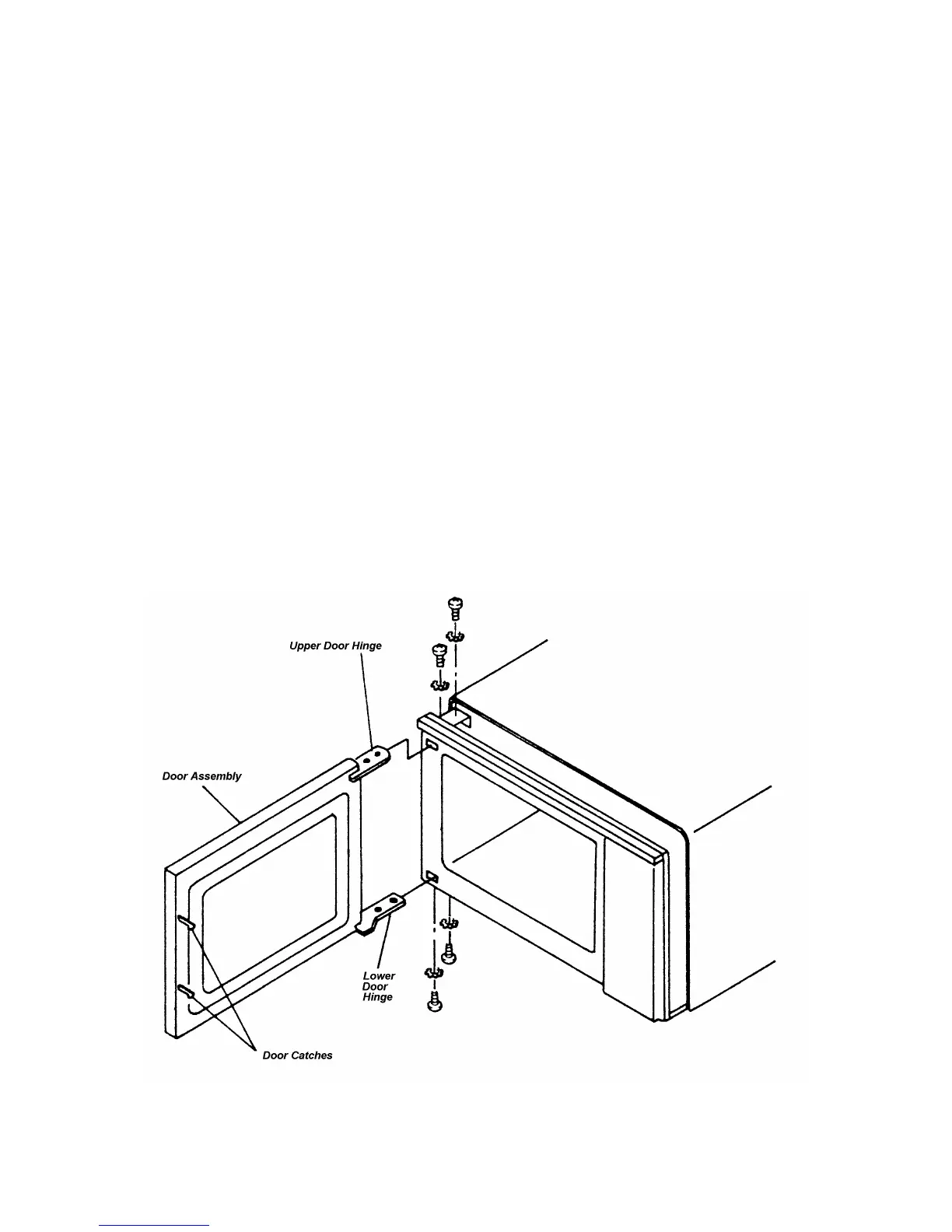

DOOR REPLACEMENT
1. Remove four screws holding the Upper and Lower Hinge Plate [14] to the oven cavity.
2. Remove Door Assembly [80] by pulling it forward.
3. On re-installing new door assembly, secure the upper and lower oven hinges with the
four mounting screws to the oven cavity.
4. Make sure the door is parallel with the bottom line of the oven cavity face and the
catches pass through the catch holes correctly. See door adjustment.
DOOR ADJUSTMENT
When removing and/or loosening hinges during door adjustment or replacement, the following
adjustment criteria must be met. The door is adjusted to meet the following three conditions by
keeping the hinge screws slack.
1. Adjust door interlock block to a position where it smoothly locates with the catches
through the catch holes.
2. Deviation of door alignment from horizontal line of cavity front is to be less than 1.0mm.
3. The door is positioned so that it touches the cavity front.
Reinstall outer case and check for microwave leakage around the door with an approved
microwave leakage meter
After any service work to the door, the oven should always be
checked for microwave leakage with a suitable meter
