Mesa/Boogie Stiletto User Manual

PAGE 33
RECTIFIER
TUBES

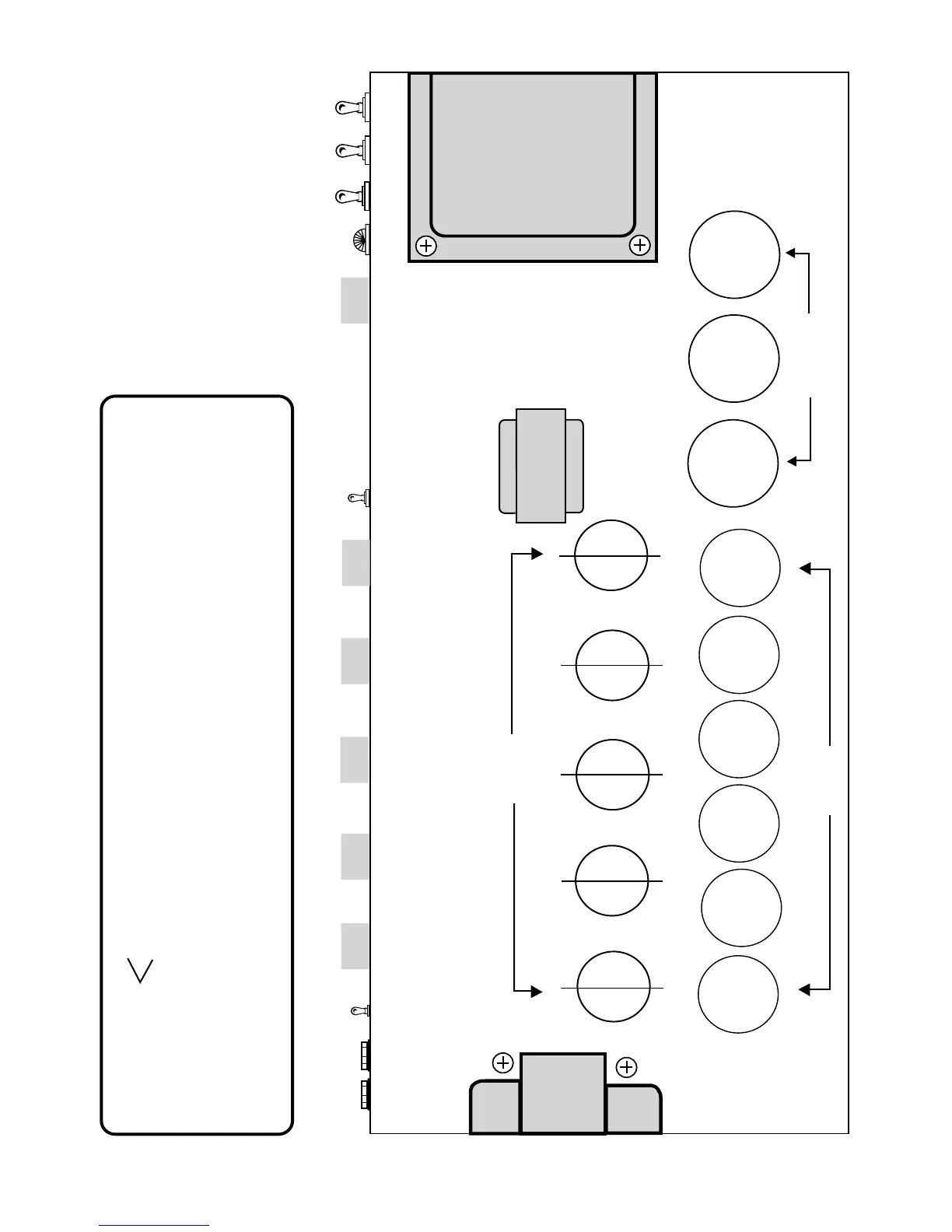

PARTIAL VIEW OF CHASSIS (front panel)
BACK EDGE OF CHASSIS
Stiletto "Trident"
TUBE TASK CHART
5U4G
12AX7
(5)
V 5
V 4 V 3
V 2
V 1
B A
B A
B A
B A B A
(Each 12AX7 contains two separate Triodes)
V1 A= 2nd Gain Stage V1 B= Input Stage (all modes except Fluid Drive & Fat Clean) V2 A= Input Stage (Fluid Drive & Fat Clean) V2 B= 3rd Gain Stage V3 A= 4th Gain Stage / 2nd Gain Stage Clean Modes
V3 B= 5th Gain Stage V4 A= FX Return V4 B= FX Send V5 A= V5 B=
Phase Splitter / Driver
Description of Tube Functions
5U4G
EL34
EL34 EL34
EL34
EL 34
(6x)
5U4G
EL34
EL34
LARGE POWER TRANSFORMER

Mesa/Boogie Stiletto Specifications

General

Type	Tube Amplifier
Channels	2
Preamp Tubes	5 x 12AX7
Reverb	No
Rectifier	Solid State
EQ	Bass, Mid, Treble
Inputs	1 x 1/4"
Footswitch	Included (Channel Switching)
Effects Loop	Yes (Series)
