Mesa/Boogie TriAxis User Manual

PAGE 7
OFF
ON/LIFT
ON GROUND
1
2
SWITCH
4
3
RECORD OUTPUT
A
B
IN
MIDI
THRU
OUT
OFF
IN
MIDI
THRU OUT
ON/LIFT
ON GROUND
1
2
SWITCH
4
3
RECORD OUTPUT
RETURN
SEND
FX LOOP
A
B

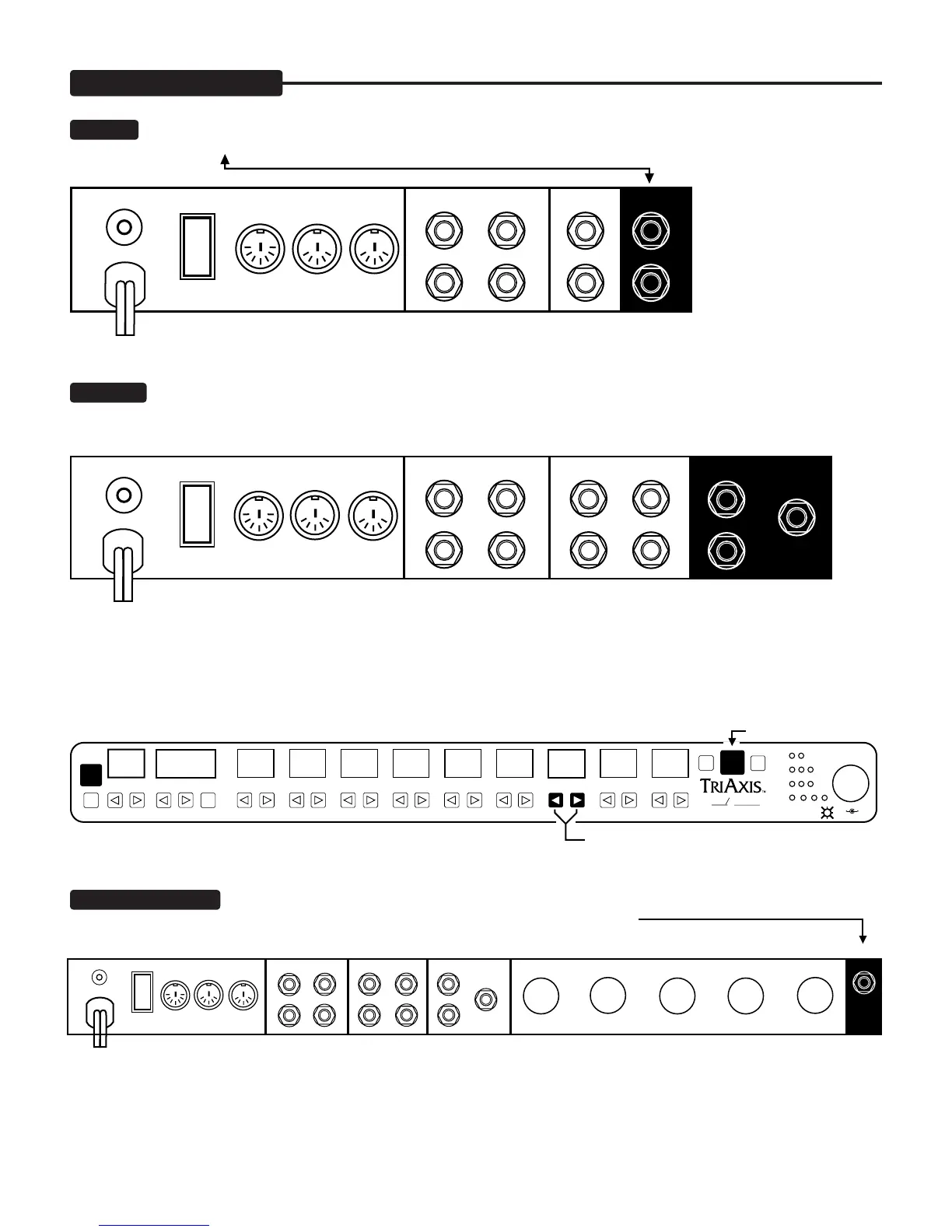

REAR PANEL: (Continued)
OUTPUT:
These A/B jacks provide two outputs, left and right, for interfacing to power amplifiers or directly to your effects units.
FX LOOP:
These jacks provide a Mono send and Stereo return effects loop configuration. The LOOP is programmable via the
LOOP/SWITCH and ENTER keys located on the Font Panel (see illustration below) and its’ status determined per PRESET. The
Front Panel programmable MASTER control determines the FX SEND LEVEL.
Press the LOOP / SW key to toggle between the desired combination of FX LOOP and Function Switches on a given PRESET/
PROGRAM combination. To write this combination, Press the ENTR key two times. This LOOP/SWITCH combination is now stored
under the displayed PRESET PROGRAM.
INSTRUMENT INPUT:
The instrument jack is located to the far right on the Rear Panel.
RHY
LD1
LD2
SW
DYNAMIC VOICE
PRESENCE MASTER LEAD 2 DRIVELEAD 1 DRIVE
BASSMIDDLETREBLEGAIN
PROGRAM/CHANNEL
PRESET
PGM
/CH
0
12
3
4
56
7
89
OUTPUT
5
6
7
8
9
10
4
3
2
1
0
A B
LOOP / SWITCH
FX LOOP
1
234
LOOP
SW
ALL TUBE PREAMPLIFIER
OOGIE
B
M
ESA
ENTR
PROGRAMMABLE MASTER VOLUME:
Also acts as an FX Send Level Control
FX LOOP
SEND
4
3
1
2
SWITCH RECORD OUTPUT RETURN
B
A
OFF
IN
MIDI
THRU
OUT
ON/LIFT
ON GROUND
INST
INPUT

Mesa/Boogie TriAxis Specifications

General

Type	Tube Preamp
MIDI Control	Yes
Tubes	5 x 12AX7
Inputs	1 x Instrument
Effects Loop	Yes
Footswitchable	Yes
Outputs	2 x 1/4" (Main), 1 x 1/4" (Recording)
