PAGE 27
V1 V2 V5
MESA
12AX7A
MESA
12AX7A
V3
MESA
12AX7A
V4
MESA
12AX7A
MESA
12AX7A
12AX7A
ALL TUBES
Back Panel of TriAxis
Front Panel
TriAxis Top View
RIGHT
SIDE
LEFT
SIDE
INSTRUMENT
INPUT
TUBE ASSIGNMENT
V1 =
LEAD 1 INPUT
V2 =
INPUT FOR ALL OTHER MODES
V3 =
LEAD AND RHYTHM MIXER
V4 =
LEAD 2
V5 =
EFFECTS RETURN STAGE
SPECIFICATIONS
WEIGHT: 9.5 pounds
HEIGHT: 1 rack unit
DEPTH:
14.3 inches
INPUT IMPEDANCE:
1 Mega-ohm
OUTPUT IMPEDANCE:
POWER REQUIREMENTS: (from AC mains) 30 watts
25 K Ohms at full Output Level settings
DIMENSIONS
.

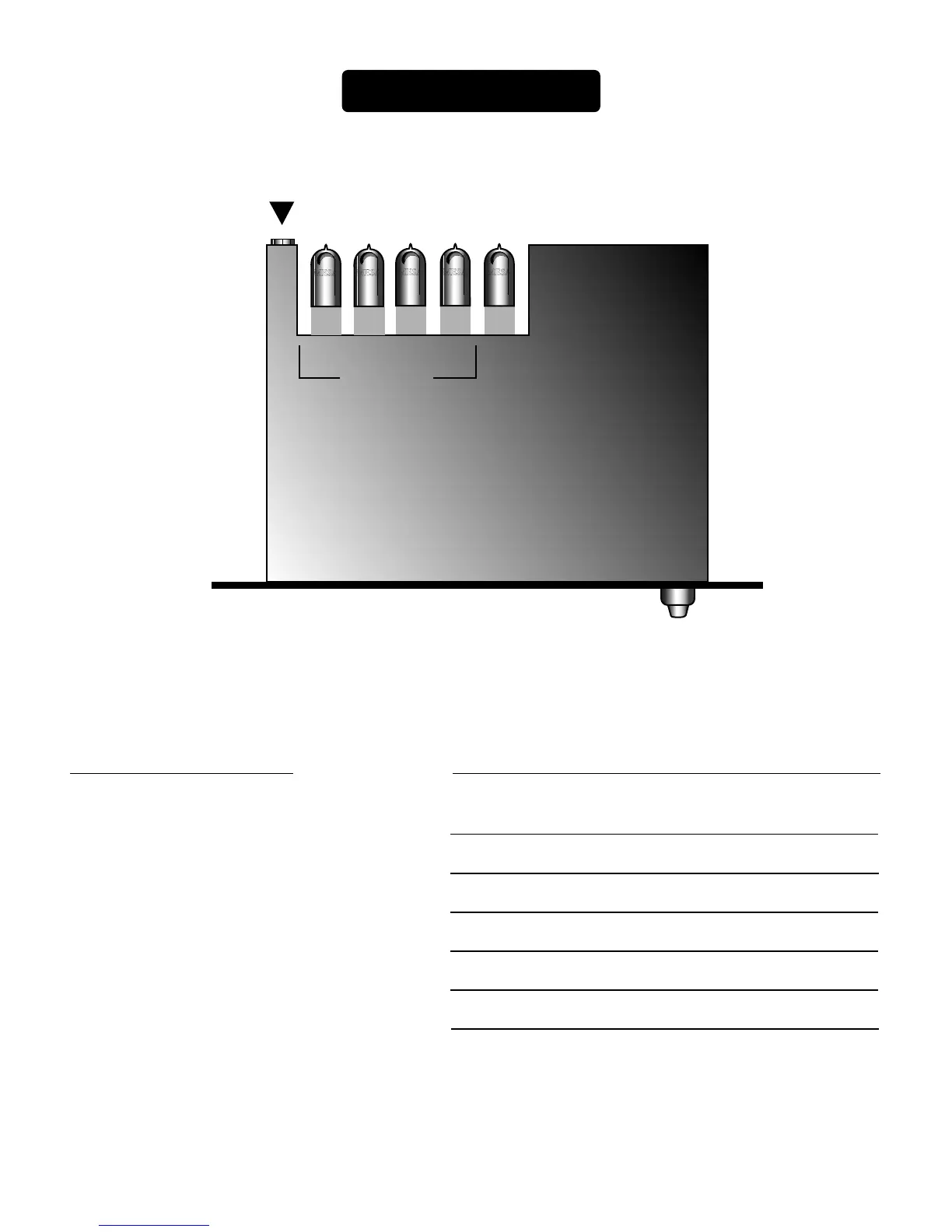

TUBE LAYOUT and TASKS
