Metabo DH330 User Manual

15
ENGLISH

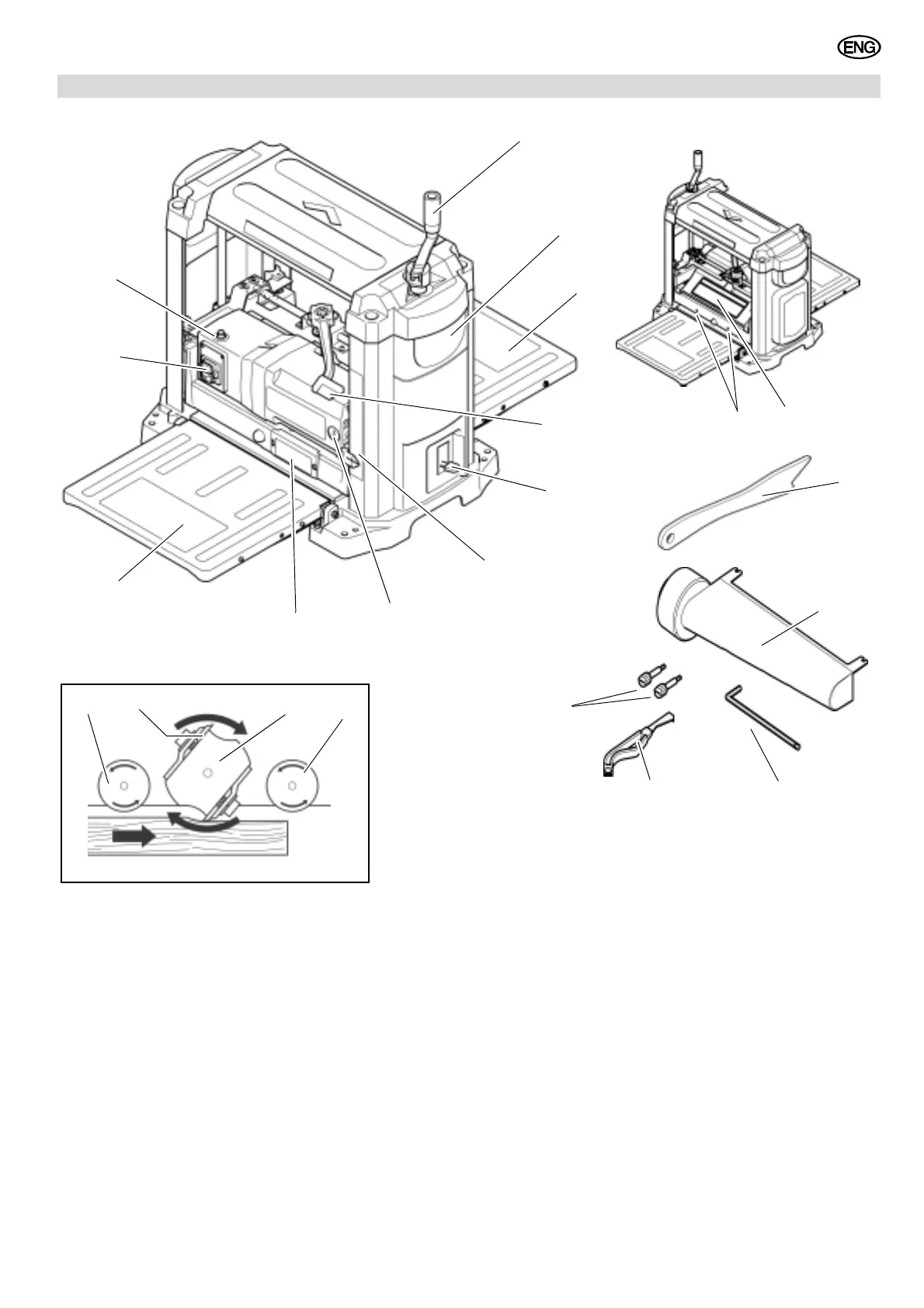

1. Parts Identification
1
2
3
4
5
6
7
8
9
10
Rear
1213
W
orking principle of a thicknessing machine
20 21 22
19
11
14
15
17
18
16
1 Crank for height adjustment
2 Carrying handle
3 Outfeed table with storage com-
partment on underside for power
supply cable and tools
4 Lock lever for height adjustment
5 Final thickness stop
6 Planing thickness indicator
7 Plug for carbon brushes
8 Depth of cut indicator
9 Infeed table
10 ON/OFF switch
11 Reset button
to restart after an overload
12 Cutterblock cover
13 Mounting holes for dust extrac-
tion connector
Standard delivery parts and tools
14 Push stick
15 Dust extraction connector
16 Allen wrench (5 mm)
17 Special tool for changing knives
18 Two holding pins (dust extraction
connector)
– Operating instructions (not
shown)
– Spare parts list (not shown)
Components inside the thicknessing
machine
19 Infeed roller
20 Planer knife
21 Cutterblock
22 Outfeed roller
XW0011E3.fm Original operating instructions ENGLISH

Metabo DH330 Specifications

General

Planing width	330 mm
Maximum planing height	152 mm
Maximum cutting depth	3 mm
Motor power	1800 W
Weight	35 kg
Table length	840 mm
Cutter block diameter	47 mm
Number of blades	2
Cutter block speed	9800 RPM
