16
ENGLISH
1. Parts Identification....................15
2. Please Read First!.....................16
3. Safety .........................................16
3.1 Specified Conditions of Use ........16
3.2 General Safety Instructions.........16
3.3 Symbols on the Machine.............17
3.4 Safety Devices ............................18
4. Special Product Features .........18
5. Operating Controls ...................18
6. Initial Operation.........................19
6.1 Machine Installation ....................19
6.2 Aligning the Infeed and
Outfeed Tables............................19
6.3 Dust Collector..............................19
6.4 Mains Connection .......................20
7. Operation ...................................20
7.1 Planing Work Pieces...................20
8. Care and Maintenance..............21
8.1 Machine Cleaning and
Lubrication...................................21
8.2 Changing the Planer Knives........22
8.3 Adjusting the Final Thickness
Stop.............................................23
8.4 Checking and Replacing
the Carbon Brushes ....................24
8.5 Storage........................................24
8.6 Transport.....................................24
9. Troubleshooting........................24
10. Available Accessories .........25/51
11. Repairs.......................................25
12. Technical Specifications ..........26
These instructions have been written to
make it easier for you, the operator, to
learn how to operate the machine and to
do so safely. These instruction should be
used as follows:
Read these instructions before use.
Pay special attention to and always
follow all safety instructions.
These operating instructions are
intended for people with basic tech-
nical knowledge regarding the oper-
ation of a machine like the machine
described herein. Inexperienced
persons are strongly advised to
seek competent advice and guid
-
ance from an experienced person
before operating this machine.
Keep all documents supplied with
this machine for future reference.
Retain proof of purchase in case of
warranty claims.
If you lend or sell this machine be
sure to have these instructions go
with it.
The manufacturer is not liable for
any damage resulting from neglect
of these operating instructions.

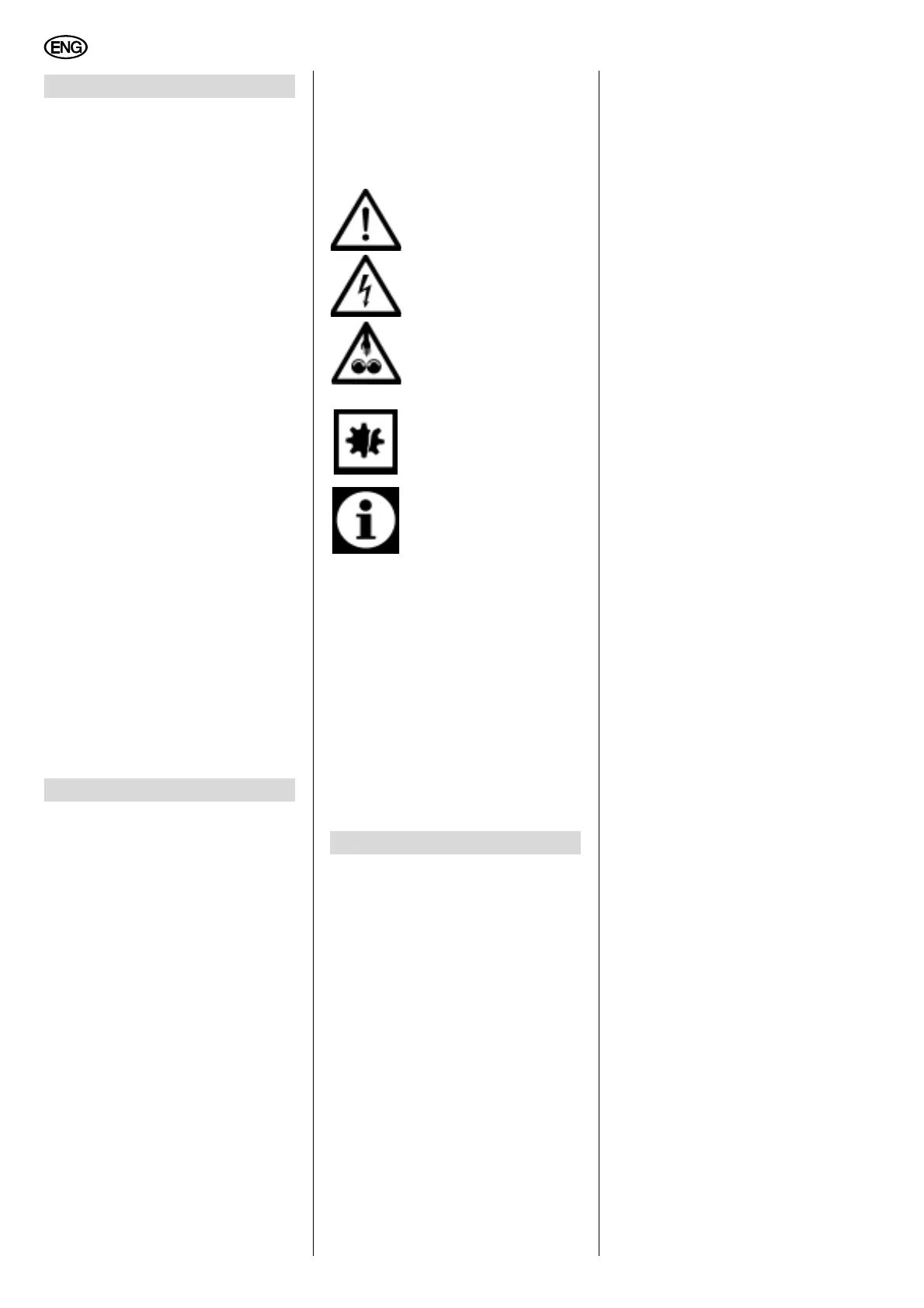

Information in these instructions is
denoted as under:
Danger!
Risk of personal injury or
environmental damage.
Risk of electric shock!
Risk of personal injury
by electric shock.
Drawing-in/trapping haz-
ard!
Risk of personal injury
by body parts or clothing
being caught.
Caution!
Risk of material damage.
Note:
Additional information.
At times numbers are used in illus-
trations (1, 2, 3, ...). These numbers
indicate component parts;
are consecutively numbered;
correspond to the number(s) in
brackets (1), (2), (3) ... in the
neighbouring text.
Numbered steps must be carried out
in sequence.
Instructions which can be carried
out in any order are indicated by a
bullet (•).
Lists are indicated by a dash (–).
3.1 Specified Conditions of
Use
Use this machine only for thickness
planing of solid wood. Any other use is
not as specified.
The permissible work piece dimensions
must be observed (see "Technical Spec-
ifications").
Any other use is not as specified. Use
not as specified, modification of the
machine or use of parts not tested and
approved by the manufacturer can
cause unforeseen damage.
3.2 General Safety Instruc-
tions
A thicknessing machine is a dangerous
tool which can, due to operator careless
-
ness, cause severe injury.
When using this machine follow the
following safety instructions, to
exclude the risk of personal injury or
material damage.
Please also follow the special safety
instructions in the respective chap-
ters.
Where applicable, follow the legal
directives or regulations for the pre-
vention of accidents pertaining to
the use of thicknessing machines.
A
General hazards!
Keep your work area tidy – a messy
work area invites accidents.
Be alert. Know what you are doing.
Set out to work with reason. Do not
operate the machine when you are
lacking concentration.
Do not operate the machine while
under the influence of alcohol, drugs
or medication.
Consider environmental conditions.
Keep work area well lighted.
Prevent adverse body positions.
Ensure firm footing and keep your
balance at all times.
Use suitable work piece supports
when cutting long stock.
Do not operate the machine near
inflammable liquids or gases.
This thicknessing machine shall only
be started and operated by persons
familiar with thicknessing machines
and the dangers associated with the
operation of thicknessing machines.
Persons under 18 years of age shall
use this machine only in the course
of their vocational training, under the
supervision of an instructor.
Keep bystanders, particularly chil-
dren, out of the danger zone. Do not
permit other persons to touch the
machine or power cable while it is
running.
Do not overload the machine– use it
only within the performance range it
was designed for (see "Technical
specifications").
Never set the depth of cut to more
than 1/8" (3
mm).
Turn power off if the machine is not
used.
B
Danger! Risk of electric shock!
Do not expose the machine to rain.
Do not operate the machine in damp
or wet environment.
Prevent body contact with earthed
objects such as radiators, pipes,
cooking stoves, refrigerators when
operating this machine.
Do not use the power cable for any
purpose it is not intended for.
Ensure the machine is disconnected
from power before servicing.
Table of Contents
2. Please Read First!
3. Safety

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Metabo DH330 and is the answer not in the manual?

Metabo DH330 Specifications

General IconGeneral
Planing width330 mm
Maximum planing height152 mm
Maximum cutting depth3 mm
Motor power1800 W
Weight35 kg
Table length840 mm
Cutter block diameter47 mm
Number of blades2
Cutter block speed9800 RPM
