Metabo HC 260 C Operating Instructions

15
ENGLISH

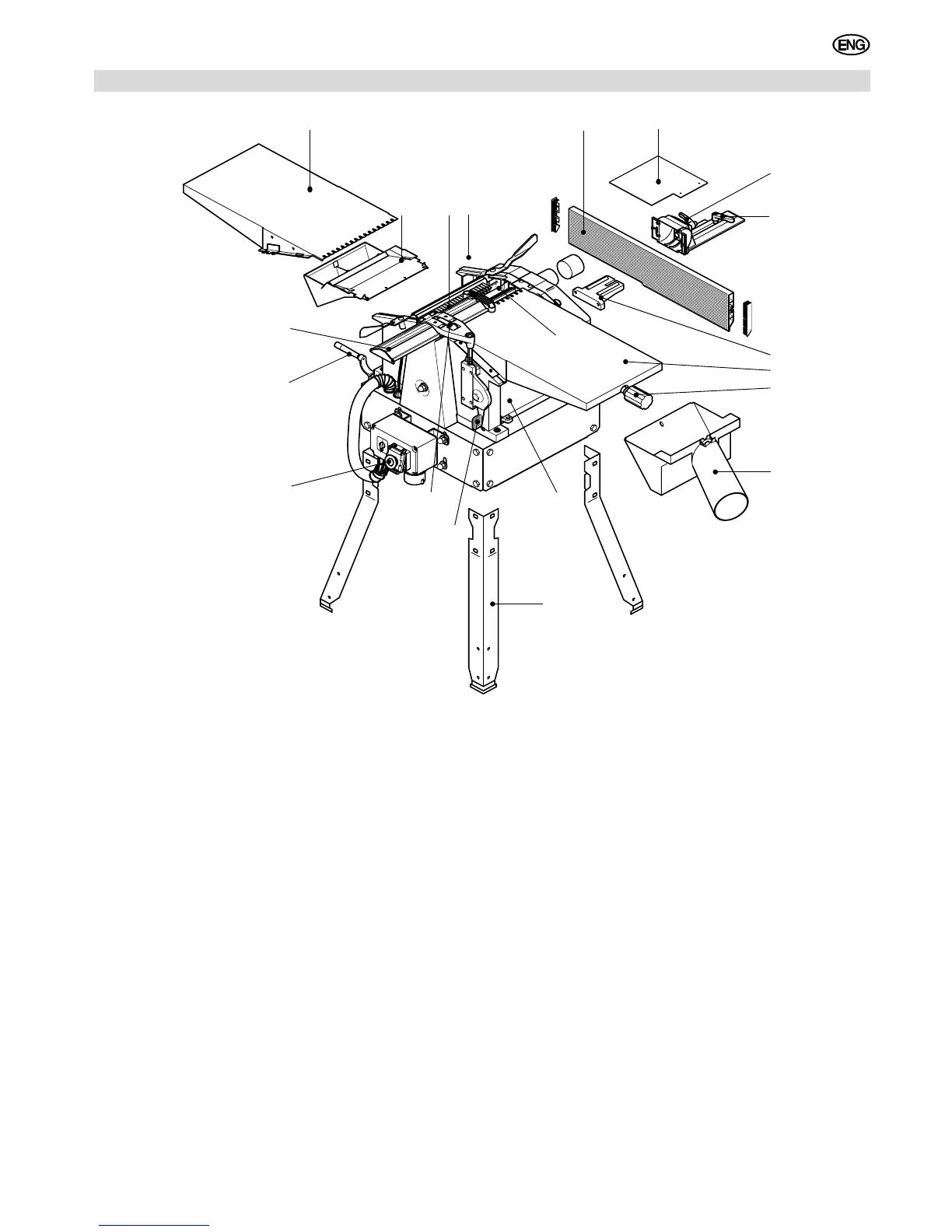

1. Components and Parts
1
2
34
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
19
1 Outfeed table
2 Chip chute
3 Anti-kickback lock
4 Lock lever for outfeed table
5 Jointer fence
6 Cover plate
7 Lock lever, fence tilt
8 Lock lever, fence lateral adjust-
ment
9 Fence carrier
10 Infeed table
11 Height setting of infeed table
12 Dust collector connector
13 Legs
14 Thicknesser bed
15 Cutterblock
16 Height setting of cutterblock
guard extrusion
17 Lock lever, lateral setting of
cutterblock guard extrusion
18 ON/OFF switch/selector switch
19 Height setting of thicknesser
bed
20 Cutterblock guard extrusion
Standard accessories:
Open jaw wrench 10 mm
Allen key 3 mm
Planer knife setting gauge
XW0014E2.fm Operating Instruction ENGLISH

Metabo HC 260 C Specifications

General

Planing Width	260 mm
Max. Planing Depth	3 mm
Max. Thicknessing Height	160 mm
Feed Rate	5 m/min
Motor Power	2.2 kW
Chip removal thickness planing	3 mm
Chip removal thickness thicknessing	3 mm
Table thicknessing table	400 x 260 mm
Passage height/width	160 mm / 260 mm
Planing shaft diameter	63 mm
Number of blades	2
Planing table	260 mm
Planing shaft speed	6, 500 rpm
