Metabo KGSV 72 Xact Instructions

4
h
b
b x h
KGSV 72 Xact KGSV 72 Xact SYM
*1) Serial Number
11216.. 12216..
UV
220 - 240
(50/60 Hz)
IA
6.5
FA
T 10 A
P
1
kW
1,5 kW (S1)
IP -
IP 20
n
0
/min, rpm
6300
v
0
m/s
70
Dmm
216
dmm
30
bmm
2,4
a
1
°
-47° ...0 ... 47°
a
2
°
-50° ...0 ... 50°
a
SYM1
°
- 0 ... 50°
a
SYM2
°
- 0 ... 50°
Amm
660 x 540 x 415
mkg
16,1 18,3
D
1 - i
mm
35
D
1 - o
mm
41
D
2
m
3
/h
460
D
3
Pa
530
D
4
m/s
20
L
pA
/K
pA
dB(A)
84 / 3
L
WA
/K
WA
dB(A)
97 / 3
13.

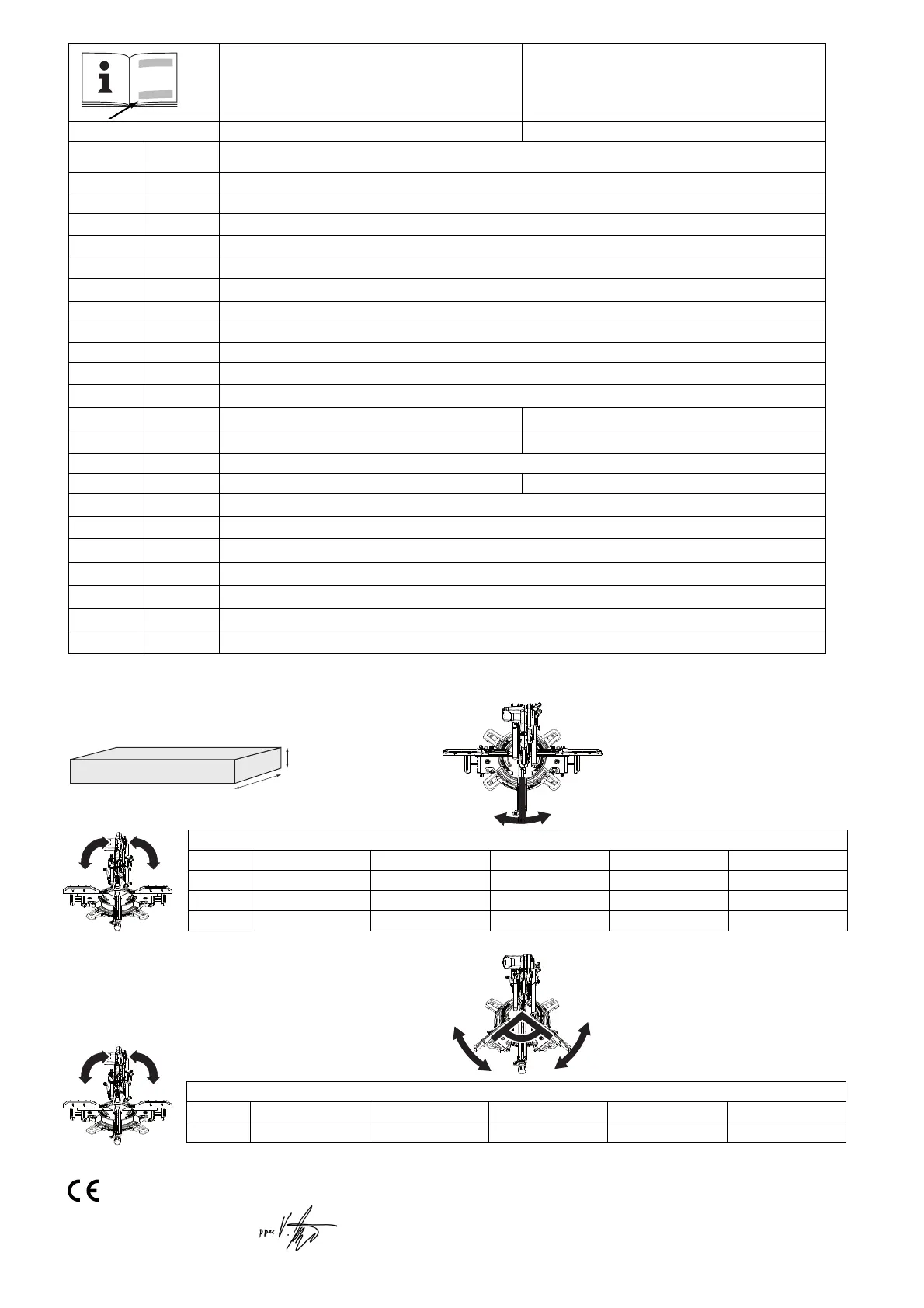

KGSV 72 Xact, KGSV 72 Xact SYM
b x h 0° 15° 22,5° 30° 45°
0° 305 mm x 72 mm 295 mm x 72 mm 280 mm x 72 mm 260 mm x 72 mm 215 mm x 72 mm
45°left 305 mm x 42 mm 295 mm x 42 mm 280 mm x 42 mm 260 mm x 42 mm 215 mm x 42 mm
45° right 305 mm x 22 mm 295 mm x 22 mm 280 mm x 22 mm 260 mm x 22 mm 215 mm x 22 mm
*2) 2011/65/EU, 2006/42/EC, 2004/108/EC (->19.04.2016), 2014/30/EU (20.04.2016->)
*3) EN 62841-1: 2015, EN 62841-3-9: 2015, EN 60825-1: 2014
2015-11-10, Volker Siegle
Direktor Produktentstehung & Qualität (Vice President Product Engineering & Quality)
*4) Metabowerke GmbH - Metabo-Allee 1 - 72622 Nuertingen, Germany
KGSV 72 Xact SYM
b x h 90° 135° 180° 225° 270°
0° 75 mm x 72 mm 40 mm x 72 mm 305 mm x 72 mm 260 mm x 72 mm 215 mm x 72 mm

Metabo KGSV 72 Xact Specifications

General

Bevel type	-
Sliding rails	Yes
Idle speed (max)	6300 RPM
Idle speed (min)	2200 RPM
Bevel setting (left)	47 °
Cutting depth (90º)	72 mm
Cutting width (90°)	305 mm
Miter setting (right)	50 °
Input power	1800 W
Cable length	3 m
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Blade diameter	216 mm
Number of blade teeth	40

Weight and Dimensions

Depth	660 mm
Width	540 mm
Height	415 mm
Weight	16100 g
