95-9313B
9
Sub-dash airbox modifications

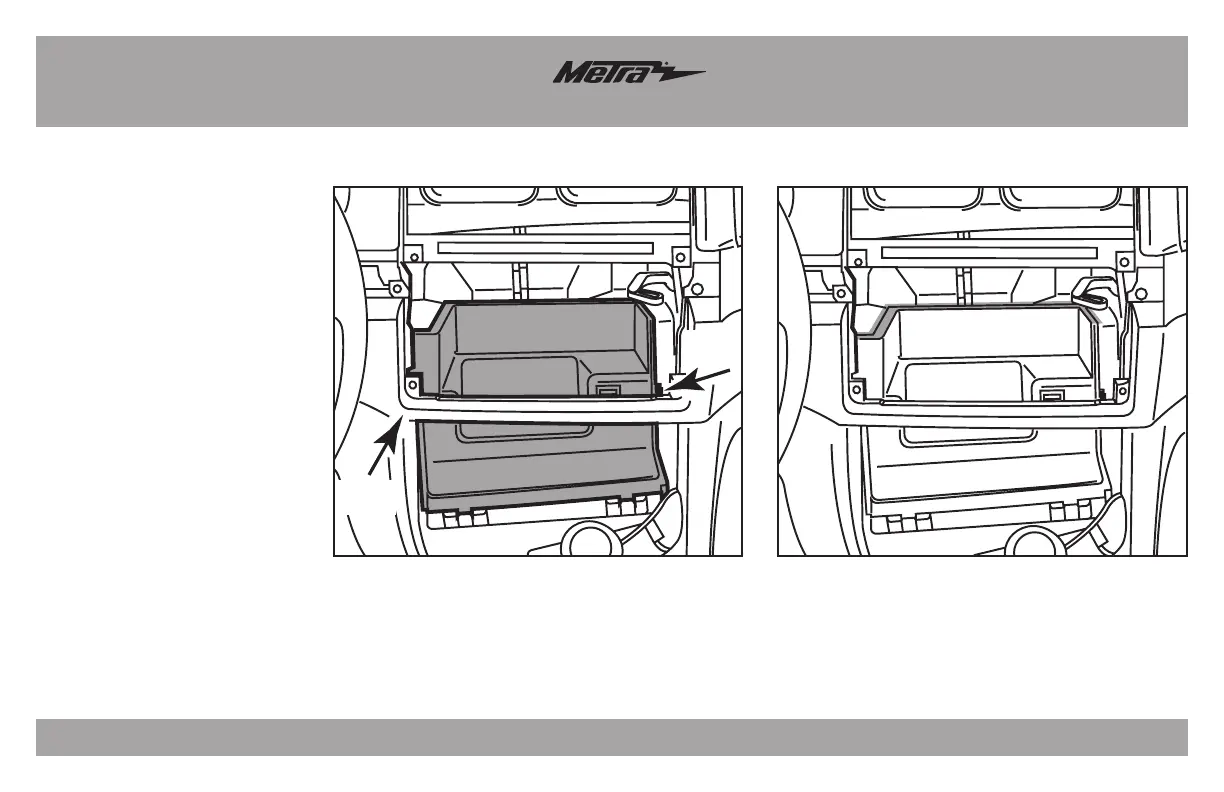

7. Set the air box cover into place
and secure the right side with the
metal retaining clip removed in
step 1. Secure the left side with
the (1) #6 x 1/2” Phillips screw
supplied. (Figure G)
8. Metra recommends using tape
along the upper edge of the air box
cover where the cut was made.
Duct tape or A/C aluminum tape is
suggested. (Figure H)
Continue to kit assembly
(Figure G)
(Figure H)
Tape the shaded area
Clip
location
Screw
location
To Next Page
