95-9313B
8

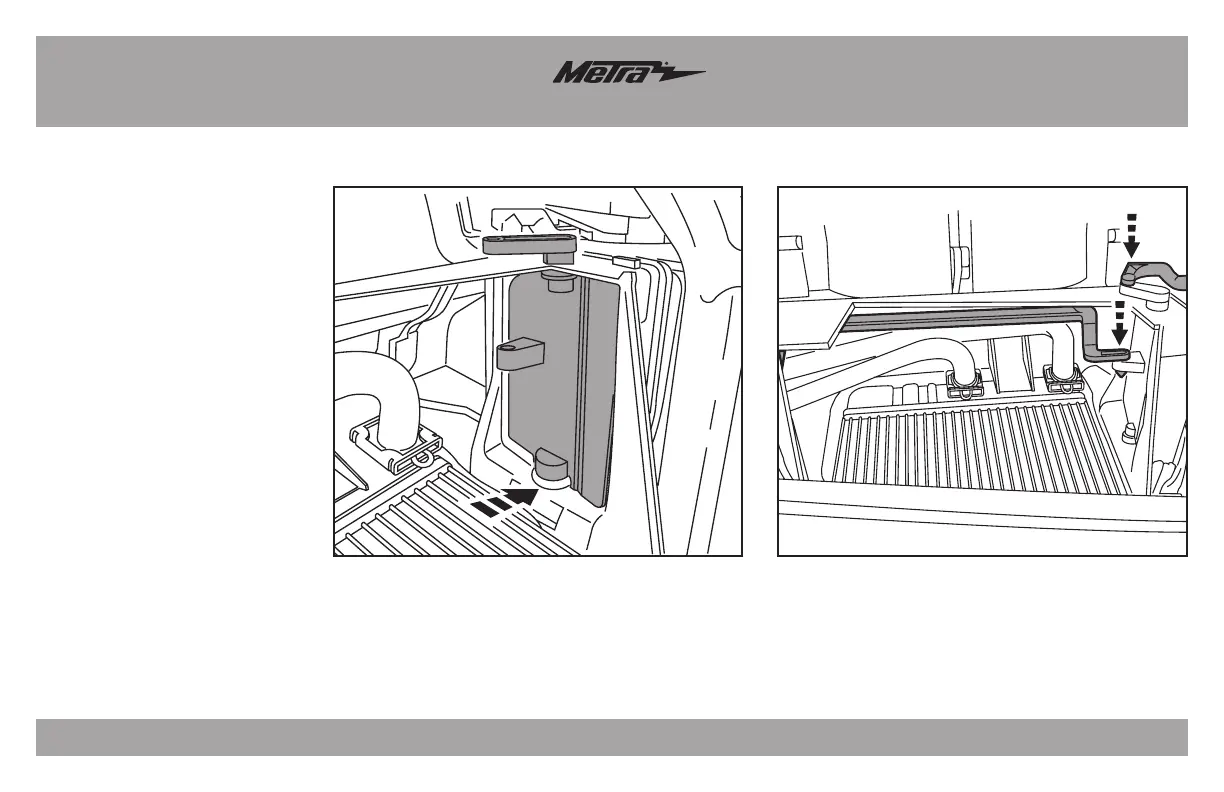

Sub-dash airbox modifications
(Figure E)
(Figure F)
5. Replace the factory passenger side
vent door with the supplied vent
door. Rotate the vent door into the
upper slot and clip into the lower
socket. (Figure E)
6. Replace the factory actuator
arm with the supplied actuator
arm. Clip the drivers side in first
and then the passenger side.
Reconnect the upper actuator arm
to the passenger vent door.
(Figure F)
Continued on the next page
