99-3305 DASH DISASSEMBLY
A
B
C
D
E
SUZUKI XL-7 2007-09

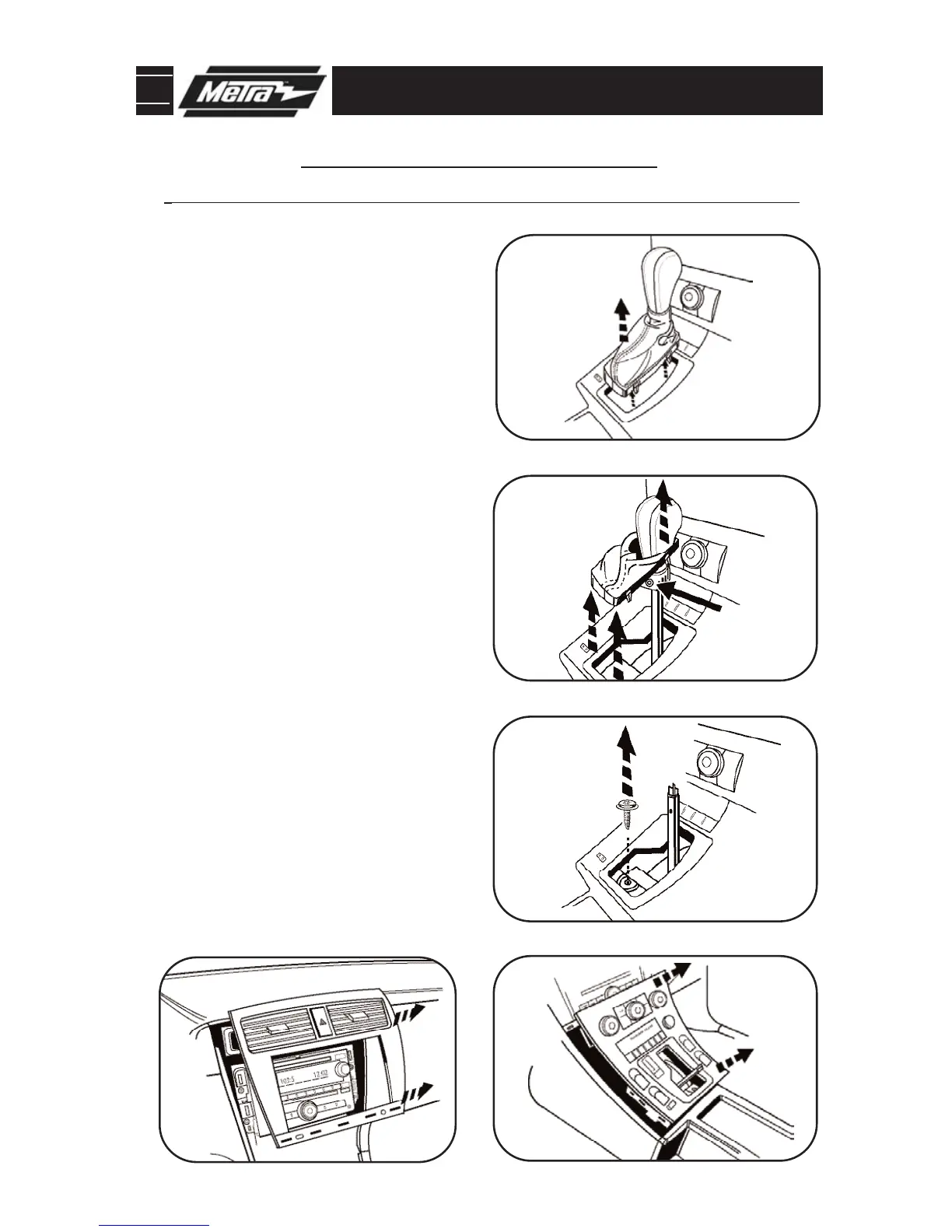

Press in on sides of the shifter boot to
release it from the shifter trim panel.
(Figure A)
2
Lift the boot up to access the Allen
screw securing the shifter knob to the
shifter lever. Loosen the Allen screw
and remove the shifter knob.
(Figure B)
3
Remove (1) torx screw from the shifter
trim panel
(Figure C) , then using a
panel removal tool unsnap the shifter
trim panel. Unplug and remove the
panel.
(Figure D)
4
Remove (4) 9/32” screws securing
the radio. Unplug and remove the
radio.
6
Using a panel removal tool unsnap
the radio trim panel. Unplug and
remove the panel.
(Figure E)
5
Continue to kit assembly.
* Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery termi-
nal to prevent an accidental short cir-
cuit.
