KIT PREPARATION
5

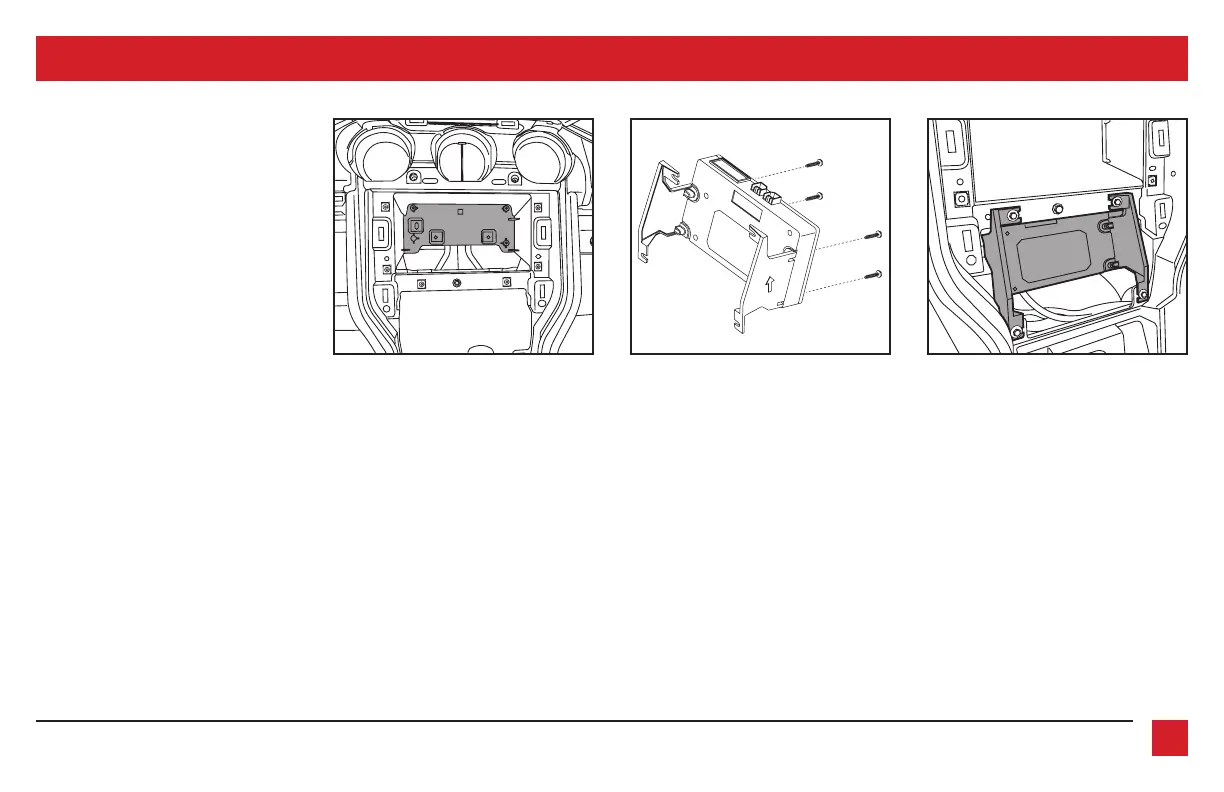

1. Cut and remove the shaded area from
the sub-dash to allow clearance for the
aftermarket radio. (Figure A)
If SYNC is desired to be retained:
2. Attach the SYNC module brackets to the
factory SYNC module using the (4) #8 x
3/4” Phillips pan-head screws provided.
(Figure B)
3. Re-connect all factory connectors back
into the SYNC module, and then secure
the module into the lower sub-dash
using the factory hardware removed in
step 13. (Figure C)
Continued on the next page
Remove
shaded area
(Figure C)(Figure A)
(Figure B)
Note orientation
of arrow
To Next Page
